Toyota COROLLA AXIO/FIELDER — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

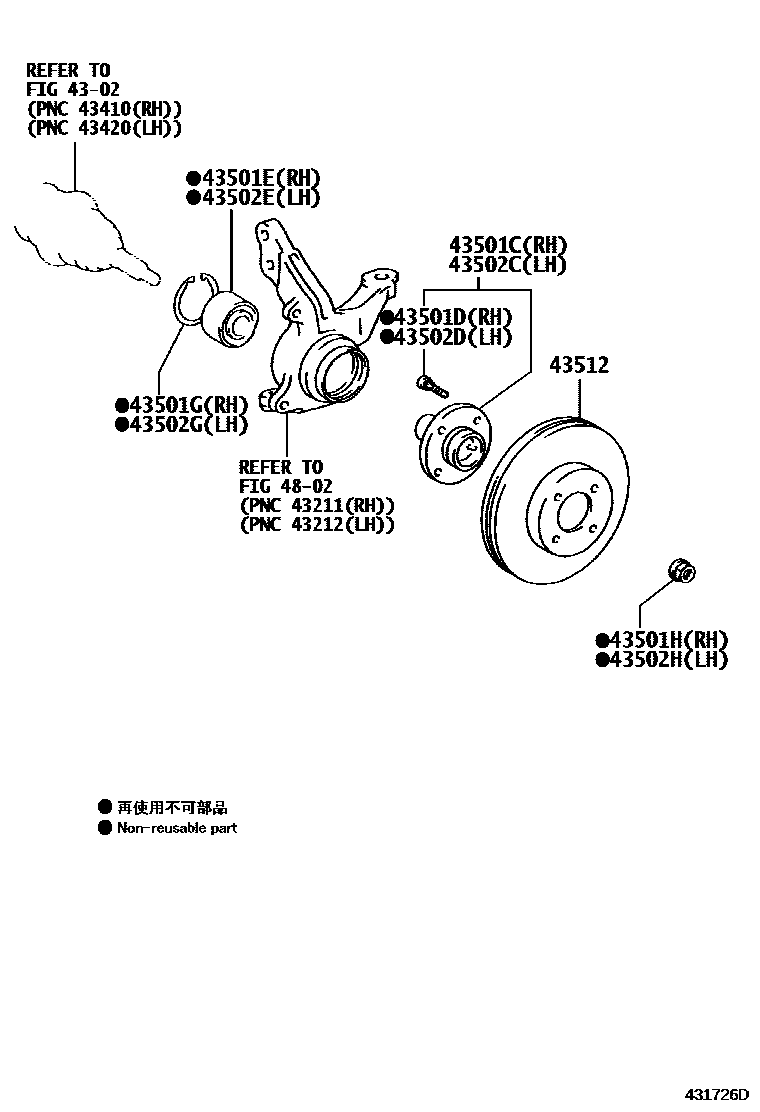

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-12140i200810-201204

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×4i200609-200810

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066i200609-200810

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i200609-200810

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200609-200810

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-12140i200609-200810

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×4i200810-201204

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066i200609-200810

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i200609-200810

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200609-200810

43512DISC, FRONT

main43512-52120×2i200609-200810

main43512-52130×2i200810-201204

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA AXIO/FIELDER

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA AXIO/FIELDER. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
