Toyota COROLLA AXIO/FIELDER — FOG LAMP

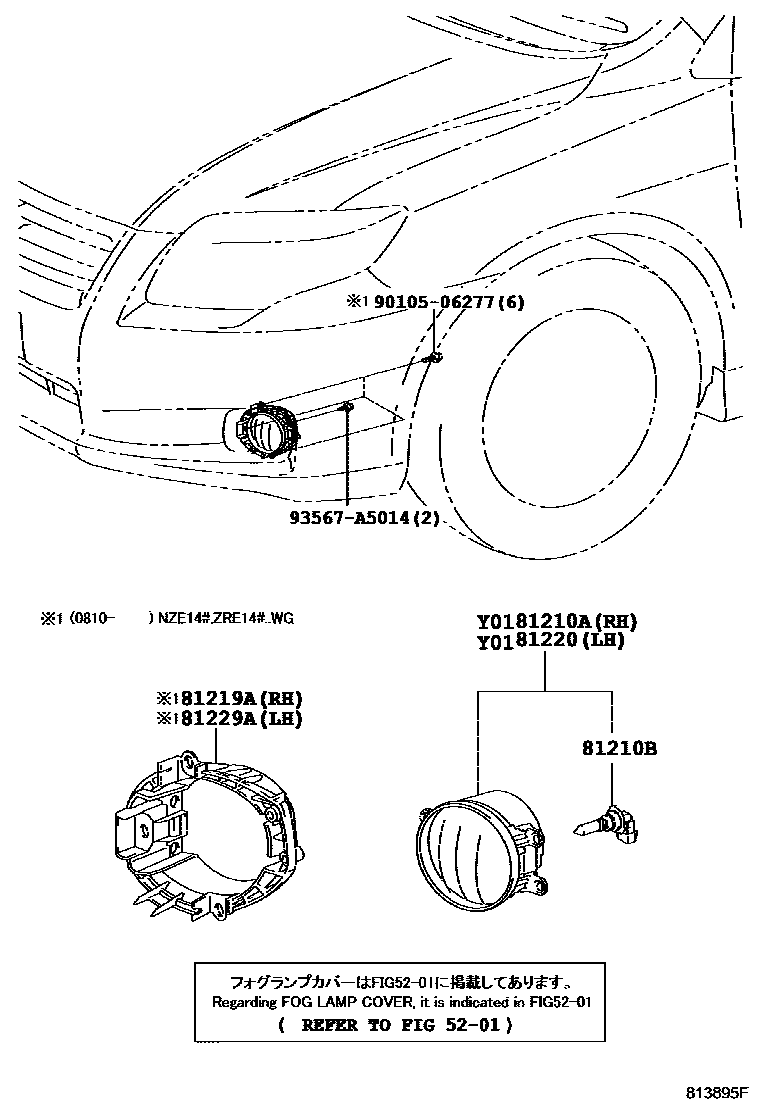

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-0D040i200609-200611

main81210-0D041i200810-201004

main81210-0D042i201005-201204

81210BBULB, FOG LAMP

main90981-13075×2i200609-200810

main90981-13081×2i200609-200810

81219ABRACKET, FOG LAMP, RH

main52125-42020i201005-201204

81220LAMP ASSY, FOG, LH

main81220-0D040i200609-200611

main81220-0D041i200612-200810

main81220-0D042i201005-201204

81229ABRACKET, FOG LAMP, LH

main52126-42020i201005-201204

9010506277

main90105-06277

93567A5014

main93567-A5014

8 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota COROLLA AXIO/FIELDER

This section contains 8 genuine Toyota parts for the FOG LAMP system of the Toyota COROLLA AXIO/FIELDER. Key components include: FRONT BUMPER & BUMPER STAY, LAMP ASSY, FOG, RH, BULB, FOG LAMP, BRACKET, FOG LAMP, RH, LAMP ASSY, FOG, LH.
