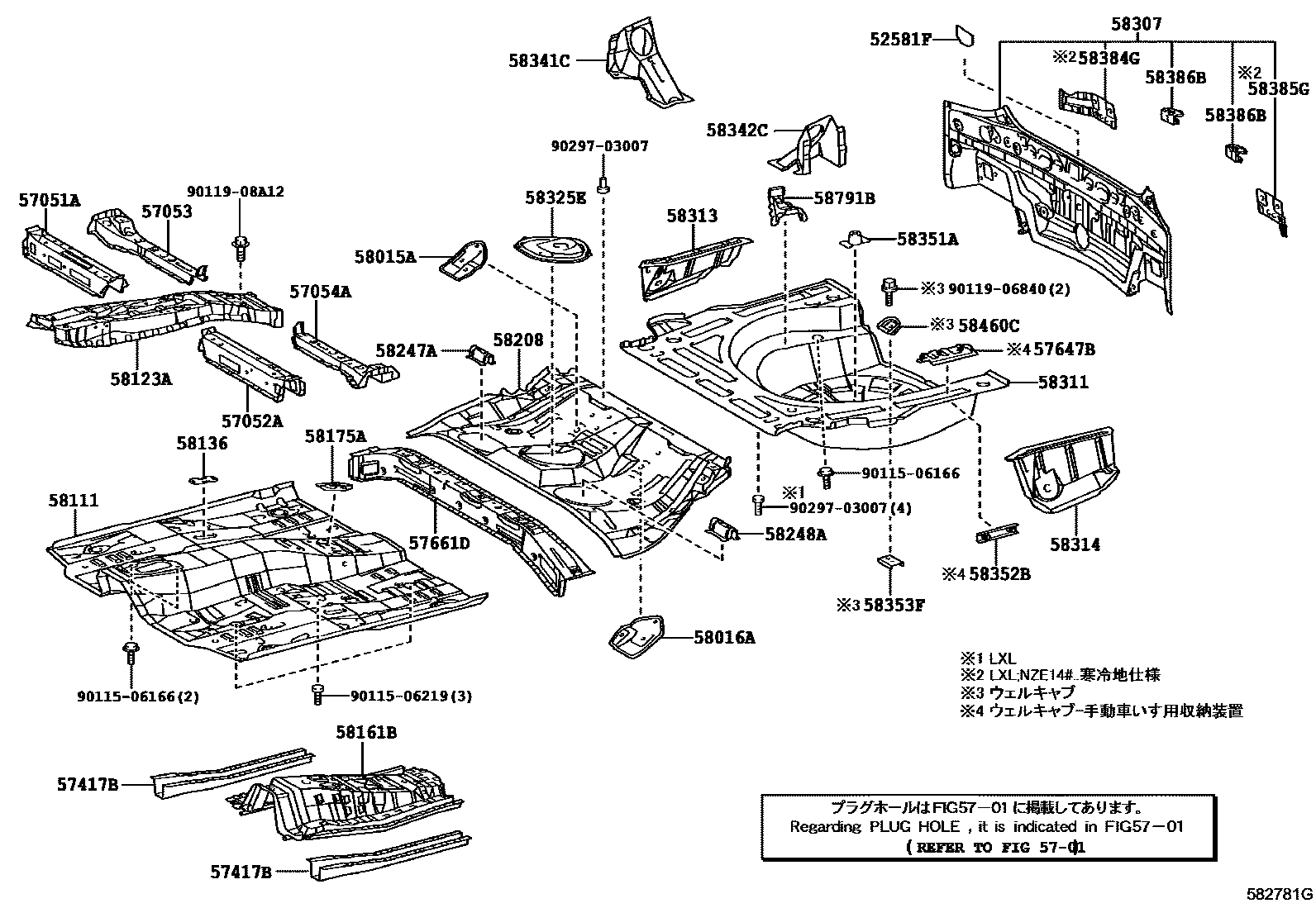

Toyota COROLLA AXIO/FIELDER — FLOOR PAN & LOWER BACK PANEL
52581FPROTECTOR, REAR BUMPER
5701
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57417BREINFORCEMENT, FRONT FLOOR UNDER
57647BREINFORCEMENT, REAR SIDE MEMBER TO BODY, LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58208PAN, CENTER FLOOR
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58351ABRACKET, SPARE WHEEL CARRIER
58352BREINFORCEMENT, REAR FLOOR PANEL, LH
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
9011906840
main90119-06840
9011908A12
main90119-08A12
9029703007
main90297-03007
39 parts on this diagram · 4 diagrams in section
