Toyota COROLLA AXIO/FIELDER — FLOOR INSULATOR

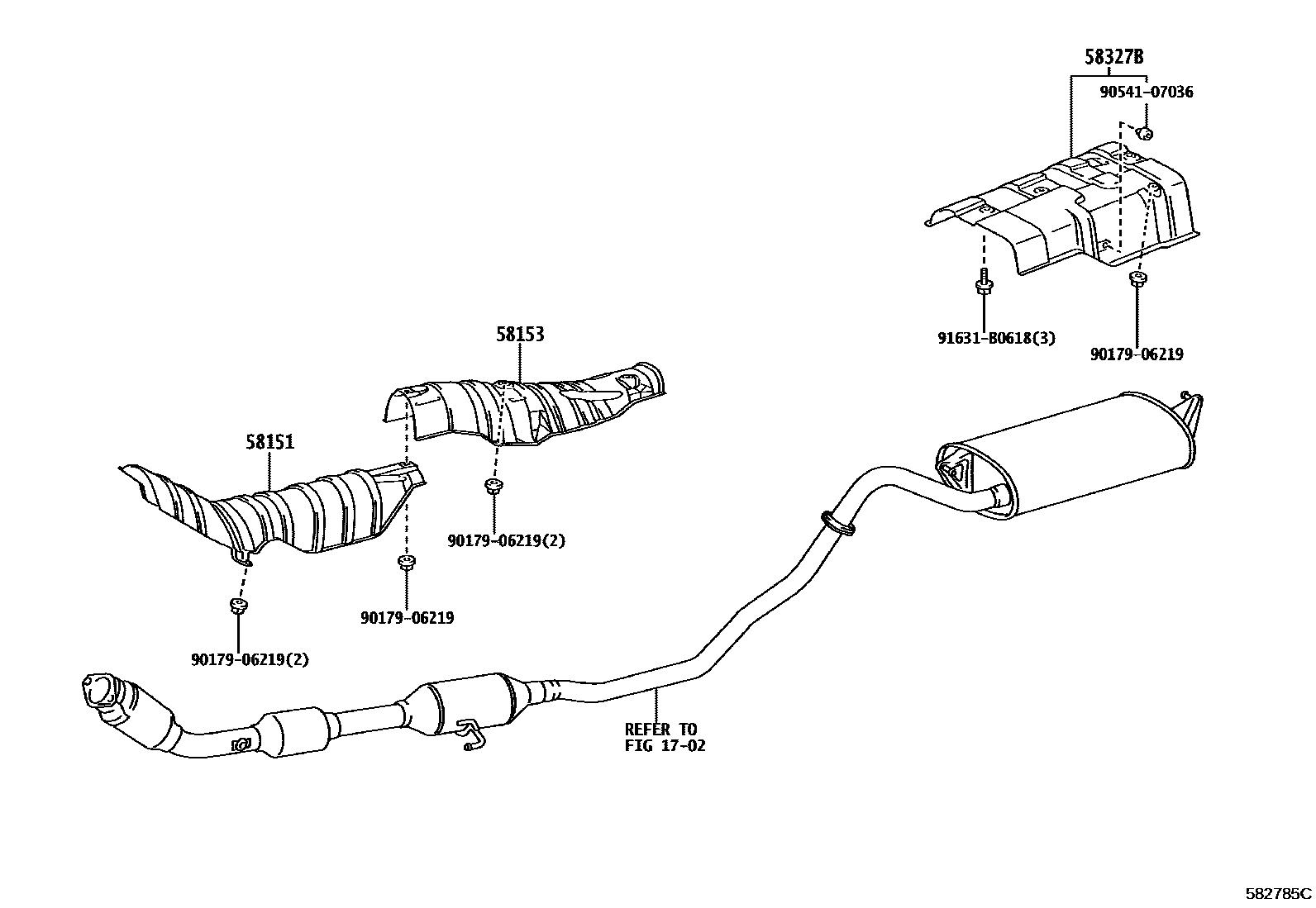

Parts diagram

1702EXHAUST PIPE

→ Go to FIG 17-02

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12250i200609-200705

main58151-12270i200609-200810

main58151-12300i200810

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12190i200810

main58153-12210i200609-200810

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-12160i200609-200810

main58327-12170i200609-200810

9017906219

main90179-06219

9054107036

main90541-07036

91631B0618

main91631-B0618

7 parts on this diagram · 2 diagrams in section

FLOOR INSULATOR for Toyota COROLLA AXIO/FIELDER

This section contains 7 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota COROLLA AXIO/FIELDER. Key components include: EXHAUST PIPE, INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, MAIN MUFFLER HEAT.
