Toyota COROLLA AXIO/FIELDER — CRUISE CONTROL (AUTO DRIVE)

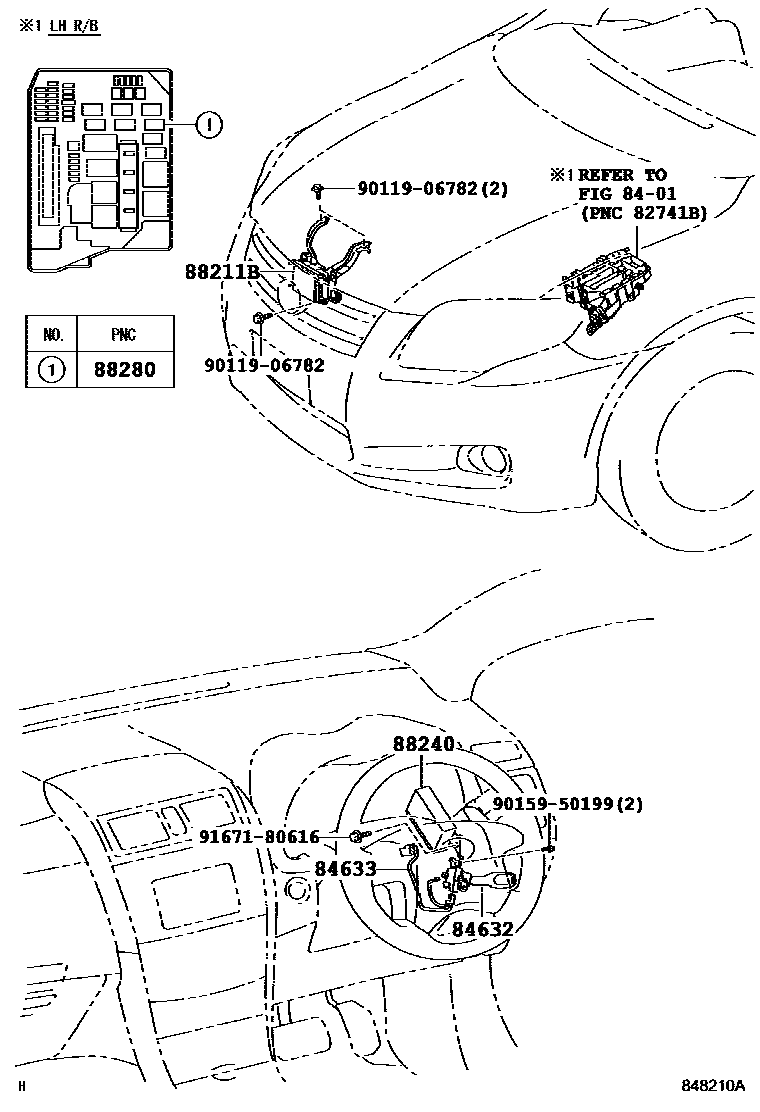

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84632SWITCH, CRUISE CONTROL MAIN

main84632-58011i200609-200810

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010i200609-200810

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-12020i200609-200810

main88210-12040i200810

88240COMPUTER ASSY, CRUISE CONTROL

main88240-12180i200609-200810

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90987-04004i200609-200810

9011906782

main90119-06782

9015950199

main90159-50199

9167180616

main91671-80616

9 parts on this diagram · 1 diagram in section

CRUISE CONTROL (AUTO DRIVE) for Toyota COROLLA AXIO/FIELDER

This section contains 9 genuine Toyota parts for the CRUISE CONTROL (AUTO DRIVE) system of the Toyota COROLLA AXIO/FIELDER. Key components include: SWITCH & RELAY & COMPUTER, SWITCH, CRUISE CONTROL MAIN, WIRE, CRUISE CONTROL SWITCH, SENSOR ASSY, MILLIMETER WAVE RADAR, COMPUTER ASSY, CRUISE CONTROL.
