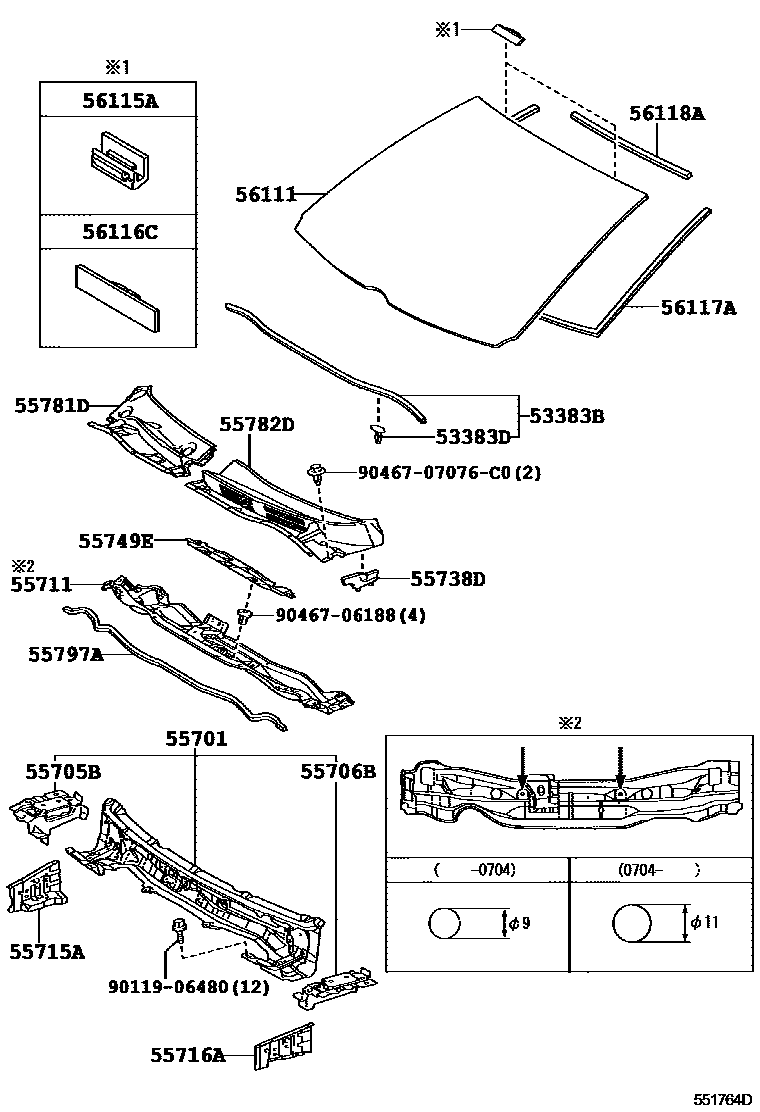

Toyota COROLLA AXIO/FIELDER — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12170i200609-200810

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×6i200609-200810

55701PANEL SUB-ASSY, COWL

main55700-12B10i200609-200810

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-12090i200609-200810

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-12100i200609-200810

55711PANEL, COWL TOP, OUTER

main55701-12A40i200609-200704

main55701-12A41i200704-200810

55715ABRACE, COWL TOP TO APRON, RH

main55715-12110i200609-200810

55716ABRACE, COWL TOP TO APRON, LH

main55716-12110i200609-200810

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-12140i200609-200810

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-12080i200609-200810

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-12360i200609-200805

main55708-12361i200806-200810

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12141supersedes 55709-12132i200810-201202

main55709-12142i201203-201204

main55709-12140supersedes 55709-12131i200609-200808

55797ASEAL, COWL WATER EXTRACT

main55797-13020i200609-200810

56111GLASS, WINDSHIELD

main56101-12260supersedes 56101-12240i200609-200810

main56101-12270supersedes 56101-12250i200810

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i200609-200810

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200609-200810

56117ADAM, WINDOW GLASS ADHESIVE

main56117-12310i200609-200810

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-12070i200609-200810

9011906480

main90119-06480

9046706188

main90467-06188

9046707076C0

main90467-07076C0

21 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA AXIO/FIELDER

This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA AXIO/FIELDER. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH.
