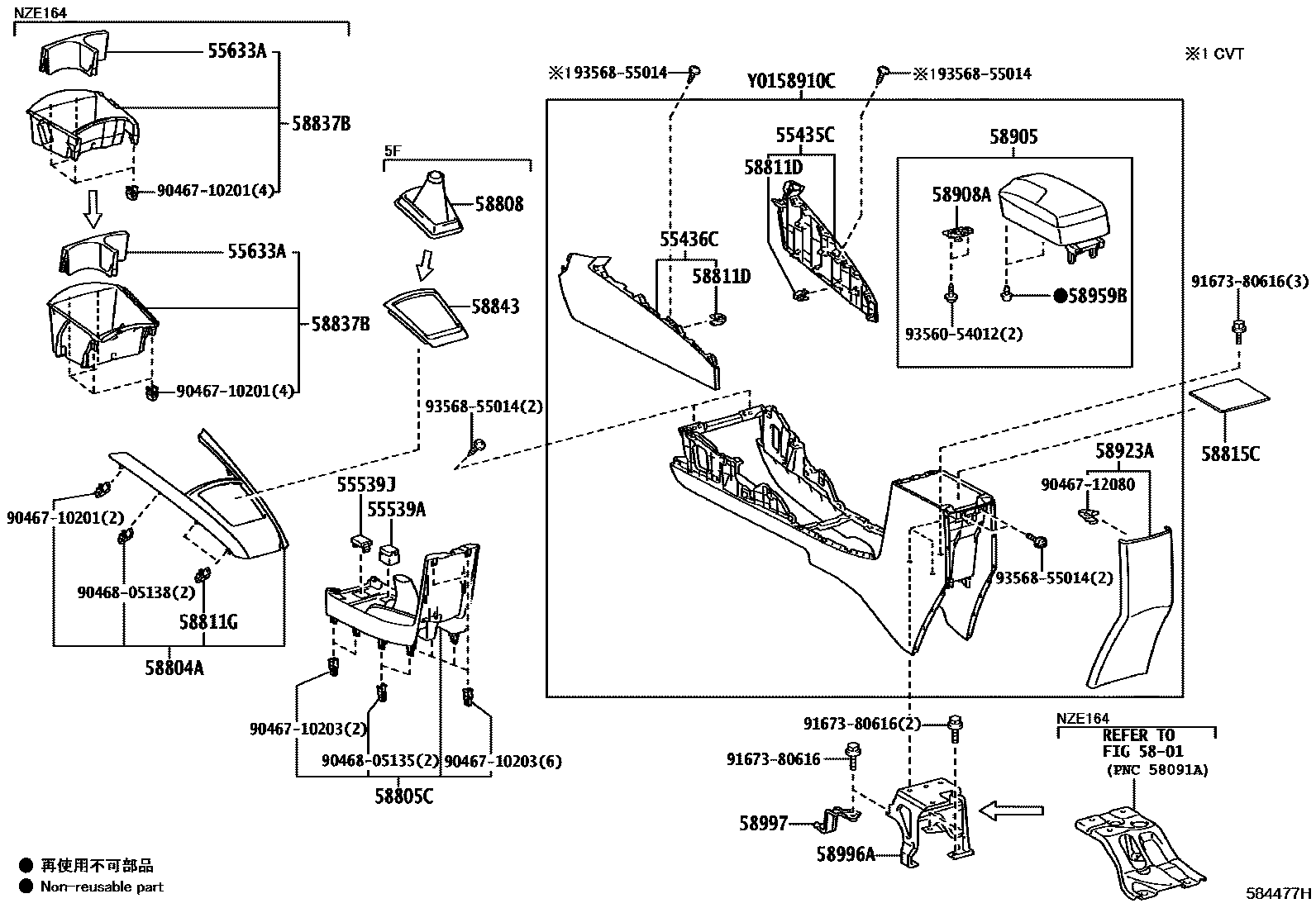

Toyota COROLLA AXIO/FIELDER — CONSOLE BOX & BRACKET

0001 1 0003 1

55435CPANEL, INSTRUMENT PANEL FINISH, END RH

main55435-12210-C0iNKE165,NRE16#,NZE161,ZRE162201204-201710

BLACK,TRIM2#

main55435-12220-C0iNZE164201204-201710

BLACK,TRIM2#

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

main55436-12180-C0iNKE165,NRE16#,NZE161,ZRE162201204-201710

BLACK,TRIM2#

main55436-12190-C0iNZE164201204-201710

BLACK,TRIM2#

55539ACOVER, SPARE SWITCH HOLE

main55539-12230-C0iNRE160,NZE16#,ZRE162..G,S,X201204-202208

BLACK,TRIM2#

main55539-12260-C0iNZE161..KYO202208

BLACK,TRIM2#

55539JCOVER, SPARE SWITCH HOLE

main55539-33170-C0iNZE161..KYO202210-202406

main55539-33170-C0iNRE161,NZE161202210-202406

BLACK

main55539-33170-C1iNRE161,NZE161202208-202210

BLACK,TRIM2#

main55539-33170-C1iNZE161..KYO202208-202210

main55539-33170-C3iNZE161..KYO202406

main55539-33170-C3iNZE161..KYO202406

BLACK

main55539-52060-C0iNKE165,NRE160,NZE16#201503-201701

sub55539-52060

main55539-52060-C0iNKE165,NRE160,NZE16#201204-201701

BLACK,TRIM2#

sub55539-52060

main55539-52060-C4iNKE165..HBD201701-202208

BLACK,TRIM2#

sub55539-52060

main55539-52060-C4iNKE165,NRE160,NZE16#201701-202208

sub55539-52060

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-12140-C0iNKE165,NRE160,NZE161,ZRE162201204-201710

BLACK,TRIM2#

main55633-12150-C0iNZE164201204-201710

BLACK,TRIM2#

5801

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12140-C1iNKE165,NRE160,NZE161..4D201204-201710

BLACK,TRIM2#

main58804-12150-C1iNZE164..4D..X201204-201710

BLACK,TRIM2#

main58804-12160-C1iNKE165,NRE161,NZE161,ZRE162..5D201204-201710

BLACK,TRIM2#

main58804-12170-C1iNZE164..5D201204-201710

BLACK,TRIM2#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-12030-C1iNRE160,NZE161,ZRE162201204-202208

BLACK,TRIM2#

main58805-12040-C1iNZE164201204-202208

BLACK,TRIM2#

main58805-12050-C0iNKE165201307-202208

BLACK,TRIM2#

main58805-12060-C0iNKE165,NRE161,NZE161202208

BLACK,TRIM2#

main58805-12070-C0iNZE164202208

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12410-C0iNZE161..5F201204-201710

BLACK,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main90467-10201iNKE165,NRE16#,NZE16#,ZRE162201204-201710

58811GCLIP(CONSOL BOX)

main90467-10201iNKE165,NRE160,NZE161,ZRE162201204-201710

main90468-05138iNZE164201204-201710

58815CCARPET, CONSOLE BOX

main58815-12230iNKE165,NRE16#,NZE16#,ZRE162201204-201710

58837BBOX, CONSOLE CUP HOLDER

main58837-12060-C0iNKE165,NRE160,NZE161,ZRE162201204-201710

BLACK,TRIM2#

main58837-12070-C0iNZE164201204-201710

BLACK,TRIM2#

58843BEZEL, SHIFTING HOLE

main58843-12240-C0iNKE165,NRE16#,NZE16#..CVT..(HBD,X)201204-201710

BLACK,TRIM2#

main58843-12250-B1iNRE160201204-201503

ORNAMENT SILVER,TRIM2#

main58843-12250-B1iNRE160201204-201503

main58843-12350-C0iNKE165,NRE161,NZE164,ZRE162..G,HBDG,S201503-201908

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12870-C2iNKE165,NRE161,NZE164,ZRE162..G,HBDG,S201204-201908

BLACK,TRIM2#

main58905-12880-C1iNKE165,NRE160,NZE16#..CVT..(G,HBD,X)201204-201710

BLACK,TRIM2#

main58905-12A30-C0iNZE161201204-201710

BLACK,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iNKE165,NRE160,NZE16#..G,HBD,X201204-201710

58910CBOX ASSY, CONSOLE, REAR

main58910-12870-C0iNKE165,NRE16#..HBD,X201204-201710

BLACK,TRIM2#

main58910-12890-C2iNKE165,NRE161,ZRE162..G,HBDG,S201204-201908

BLACK,TRIM2#

main58910-12A10-C2iNZE164..G201204-201908

BLACK,TRIM2#

main58910-12A20-C0iNZE164..X201204-201710

BLACK,TRIM2#

main58910-12A40-C0iNZE161201204-201710

BLACK,TRIM2#

58923APANEL, CONSOLE REAR END

main58923-12180-C0iNKE165,NRE16#,NZE161,ZRE162201204-201710

BLACK,TRIM2#

main58923-12190-C0iNZE164201204-201710

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iNKE165,NRE16#,NZE16#,ZRE162201204-201710

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12250iNKE165,NRE160,NZE161,ZRE162201204-201908

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-52020iNKE165,NRE160,NZE161,ZRE162201204-201908

9046710201

main90467-10201

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

9046805138

main90468-05138

9167380616

main91673-80616

9356054012

main93560-54012

9356855014

main93568-55014

29 parts on this diagram · 2 diagrams in section
