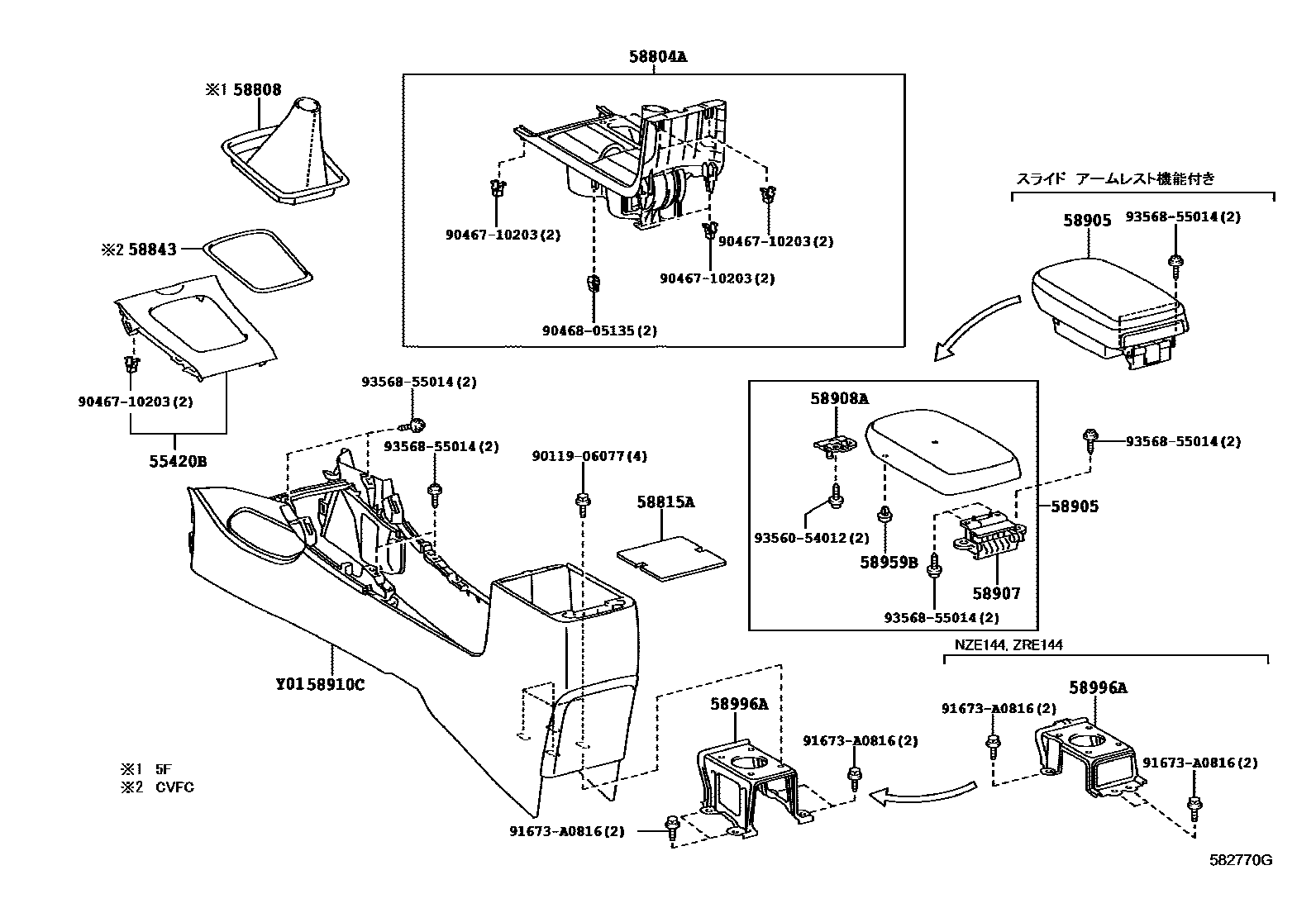

Toyota COROLLA AXIO/FIELDER — CONSOLE BOX & BRACKET

55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55420-12370iNZE14#..G200810-200910

main55420-12380iZRE14#..S200609-200810

main55420-12390-B0iZRE14#..LXL200609-200810

GRAY,TRIM1#

main55420-12390-B1iZRE14#..S200810-201204

DARK GRAY,TRIM1#

main55420-12390-E0iZRE14#..LXL200609-200810

LT.BROWN,TRIM4#

main55420-12390-E1iZRE14#..LXL200810-201204

BROWN,TRIM1#,4#

main55420-12390-E2iNZE14#..SED..X200804-200810

main55420-12400iNZE14#..WG..CVFC201106-201204

main55420-12510iNZE14#..WG..CVFC200910-201204

main55420-12530iNZE14#..CVFC..G201106-201204

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12050-B1iNZE14#..X200609-200810

DK.GRAY,TRIM12

main58804-12050-B2iNZE14#..X200609-200810

GRAY,TRIM1#

main58804-12050-E1iNZE14#,ZRE14#..G,LXL,X200609-200810

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12300-B0iNZE141..5F200810-201204

DK.GRAY,TRIM1#

main58808-12300-E0iNZE141..SED..5F200810-201204

ASH BROWN,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-12120iNZE14#,ZRE14#200609-200810

58843BEZEL, SHIFTING HOLE

main58843-12130iNZE14#..CVFC..G200810-200910

main58843-12140supersedes 58843-12130iZRE14#200609-200810

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12590-B0iNZE14#..X200609-200810

DK.GRAY,TRIM12

main58905-12590-B1iNZE14#..X200609-200810

GRAY,TRIM13

main58905-12590-E0iNZE14#..X200609-200810

GREGE,TRIM4#

main58905-12620-B3iZRE14#..LXL200609-200810

GRAY,TRIM1#

main58905-12620-E1supersedes 58905-12590-E0iZRE14#..LXL200810-201204

GREGE,TRIM4#

main58905-12630-B3iNZE14#..G200609-200810

GRAY,TRIM1#

main58905-12630-E1iNZE14#..G200609-200810

GREGE,TRIM4#

main58905-12610-B4iZRE14#..S201005-201204

main58905-12620-B2supersedes 58905-12640-B3iZRE14#..S200810-201204

main58905-12630-B2supersedes 58905-12590-B0iNZE14#..WG200609-200810

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12100iNZE14#..X200810

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iNZE14#..X200810

58910CBOX ASSY, CONSOLE, REAR

main58910-12410-B0iZRE142..S200609-200707

DK.GRAY,TRIM1#

main58910-12410-B1iNZE141,ZRE142..G,LXL200609-200707

GRAY,TRIM1#

main58910-12410-E0iNZE141,ZRE142..G,LXL200609-200707

GREGE,TRIM4#

main58910-12411-B0iZRE142..S200810-201204

DK.GRAY,TRIM1#

main58910-12411-B1iNZE141,ZRE142..G,LXL200708-200810

GRAY,TRIM1#

main58910-12411-E0iNZE141,ZRE142..G,LXL200810-201204

GREGE,TRIM4#

main58910-12420-B0iNZE141..X200609-200707

DK.GRAY,TRIM12

main58910-12420-B1iNZE141..X200609-200707

GRAY,TRIM13

main58910-12420-E0iNZE141..X200609-200707

GREGE,TRIM4#

main58910-12421-B0iNZE141..WG200810-201204

DK.GRAY,TRIM1#

main58910-12421-B1iNZE141..SED..X200708-200810

GRAY,TRIM1#

main58910-12421-E0iNZE141..SED..X200810-201204

GREGE,TRIM4#

main58910-12430-B0iZRE144..S200609-200707

DK.GRAY,TRIM12

main58910-12430-B1iNZE144,ZRE144..G,LXL200609-200707

GRAY,TRIM1#

main58910-12430-E0iNZE144,ZRE144..G,LXL,X200609-200707

GREGE,TRIM4#

main58910-12431-B0iNZE144,ZRE144..WG200708-200810

DK.GRAY,TRIM1#

main58910-12431-B1iNZE144,ZRE144..SED200708-200810

GRAY,TRIM1#

main58910-12431-E0iNZE144,ZRE144..G,LXL,X200708-200810

GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iNZE14#..X200609-200810

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12160iNZE141,ZRE142200609-200810

main58996-12170iNZE144,ZRE144200609-200810

9011906077

main90119-06077

9046710203

main90467-10203

9046805135

main90468-05135

91673A0816

main91673-A0816

9356054012

main93560-54012

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
