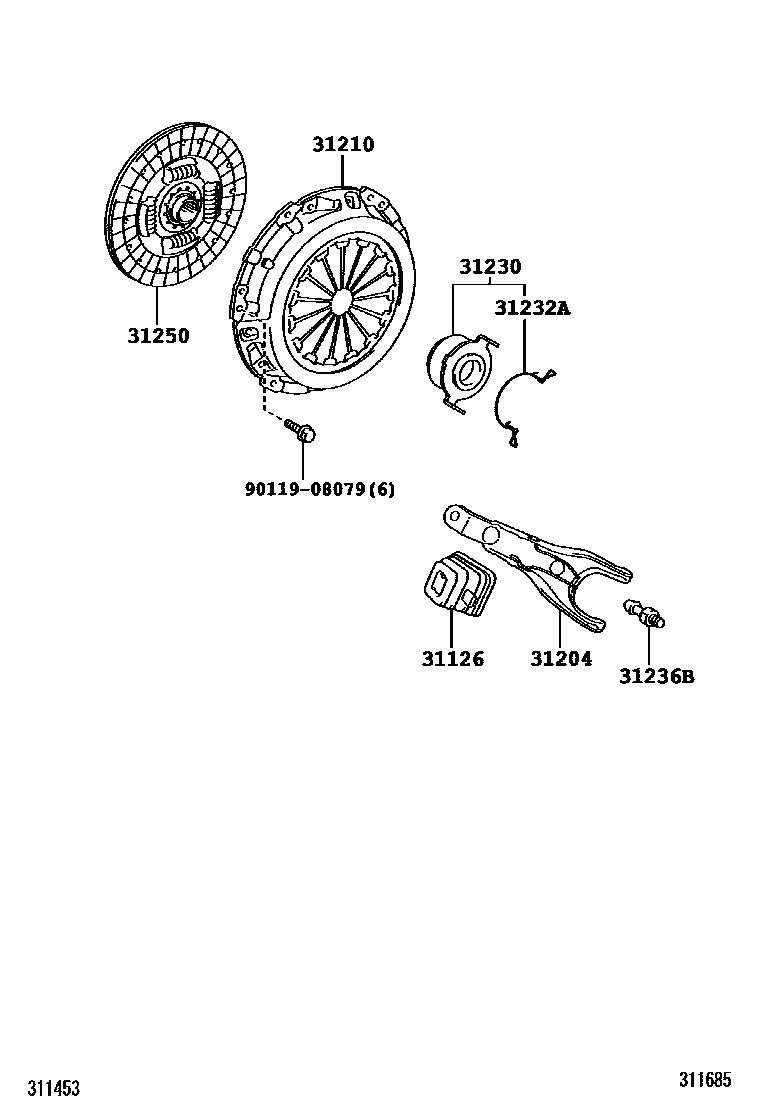

Toyota COROLLA AXIO/FIELDER — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNZE141..5F200609-200810

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNZE141..5F200609-200810

31210COVER ASSY, CLUTCH

main31210-52051iNZE141..5F200609-200702

sub31210-52052

main31210-52052iNZE141..5F200703-201204

sub31210-52053

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNZE141..5F200609-200812

sub31230-12181

main31230-12181iNZE141..5F200812

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNZE141..5F200609-200810

31236BSUPPORT, RELEASE FORK

main31236-12020iNZE141..5F200609-200810

31250DISC ASSY, CLUTCH

main31250-52050iNZE141..5F200609-200810

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
