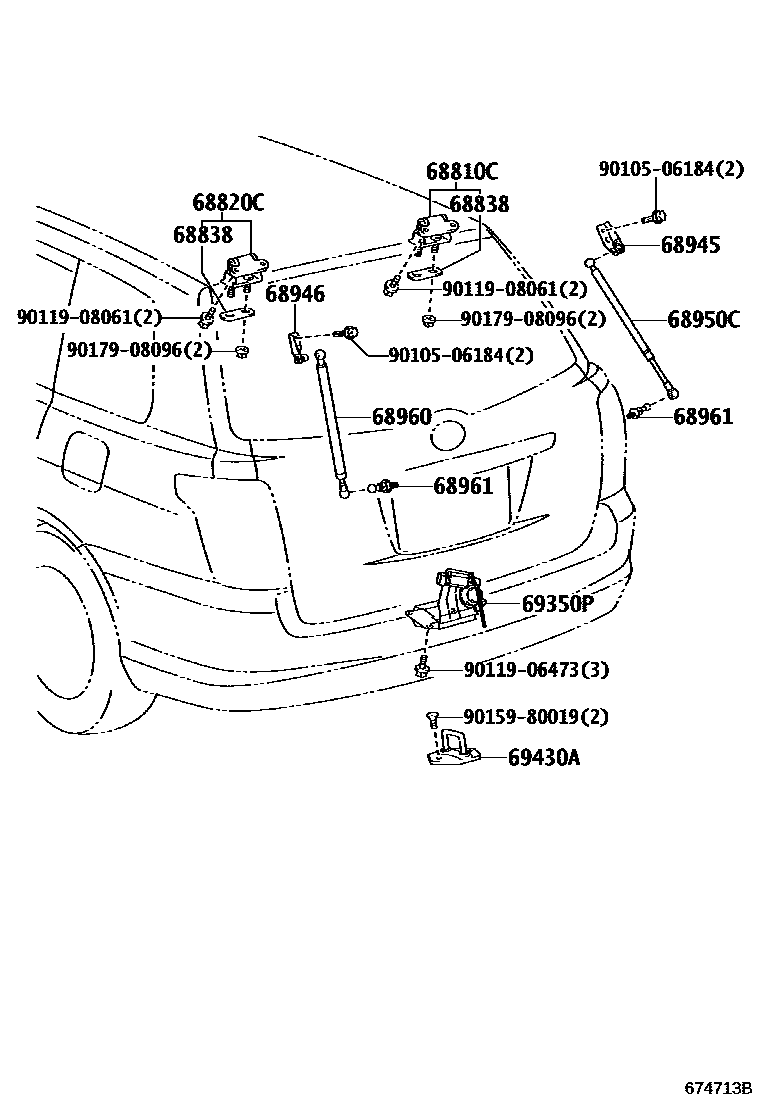

Toyota COROLLA AXIO/FIELDER — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050i200810

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050i200609-200810

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020×2i200609-200810

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-13040i200609-200810

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-13040i200609-200810

68950CSTAY ASSY, BACK DOOR, RH

main68950-13190i200810

main68950-13200i200609-200810

68960STAY ASSY, BACK DOOR, LH

main68960-13190i200609-200810

main68960-13200i200609-200810

68961BOLT, BACK DOOR STAY

main68961-87003×2i200609-200810

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150i200609-200810

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-20160i200609-200810

9010506184

main90105-06184

9011906473

main90119-06473

9011908061

main90119-08061

9015980019

main90159-80019

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota COROLLA AXIO/FIELDER

This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA AXIO/FIELDER. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH.
