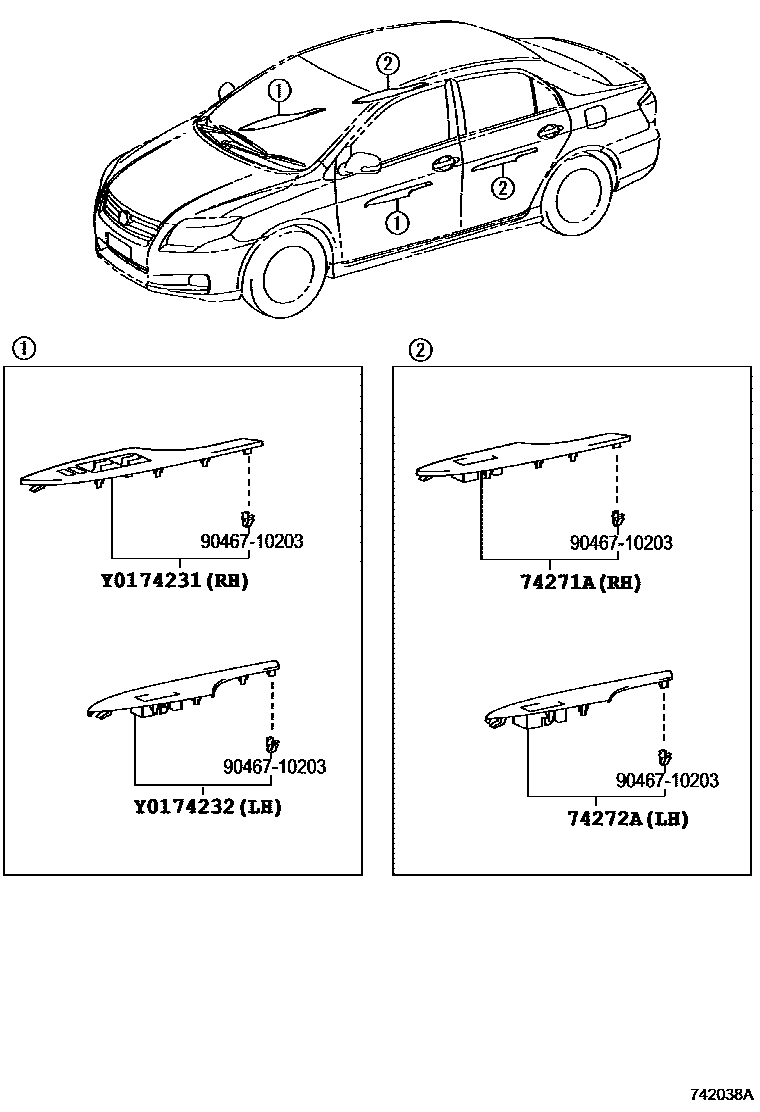

Toyota COROLLA AXIO/FIELDER — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12840-B0i200810-201204

DK.GRAY,TRIM1#

main74231-12840-B1i200609-200810

GRAY,TRIM13

main74231-12840-E0i200609-200810

GREGE,TRIM4#

main74231-12850-B2i200609-200810

GRAY,TRIM1#

main74231-12850-E1i200609-200810

LT.BROWN,TRIM4#

main74231-12860i200810-200910

main74231-12870i200609-200810

main74231-12A90i200810-201204

main74231-12B00-E0i200810-201204

BROWN,TRIM1#,4#

main74231-12A00i200910-201204

main74231-12B10-E1supersedes 74231-12840-E0i200804-200810

main74231-12E10-E0i201106-201204

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12650-B0i200810-201204

DK.GRAY,TRIM1#

main74232-12650-B1i200609-200810

GRAY,TRIM13

main74232-12650-E0i200609-200810

GREGE,TRIM4#

main74232-12660-B2i200609-200810

GRAY,TRIM1#

main74232-12660-E1i200609-200810

LT.BROWN,TRIM4#

main74232-12670i200810-200910

main74232-12680i200609-200810

main74232-12780i200810-201204

main74232-12790-E0i200810-201204

BROWN,TRIM1#,4#

main74232-12800-E1supersedes 74232-12650-E0i200804-200810

main74232-12A10i201005-201204

main74232-12C00-E0i201106-201204

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12240-B0i200609-200810

DK.GRAY,TRIM12

main74271-12240-B1i200609-200810

GRAY,TRIM13

main74271-12240-E0i200609-200810

GREGE,TRIM4#

main74271-12250-B2i200609-200810

GRAY,TRIM1#

main74271-12250-E1i200609-200810

LT.BROWN,TRIM4#

main74271-12260i200810-200910

main74271-12270i200609-200810

main74271-12350i200810-201204

main74271-12360-E0i200810-201204

BROWN,TRIM1#,4#

main74271-12370-E1supersedes 74271-12240-E0i200804-200810

main74271-12420i200910-201204

main74271-12520-E0i201106-201204

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12240-B0i200609-200810

DK.GRAY,TRIM12

main74272-12240-B1i200810-201204

GRAY,TRIM1#

main74272-12240-E0i200609-200810

GREGE,TRIM4#

main74272-12250-B2i200609-200810

GRAY,TRIM1#

main74272-12250-E1i200609-200810

LT.BROWN,TRIM4#

main74272-12260i200609-200810

main74272-12270i200609-200810

main74272-12350i200810-201204

main74272-12360-E0i200910-201204

BROWN,TRIM1#,4#

main74272-12370-E1supersedes 74272-12240-E0i200804-200810

main74272-12430i201005-201204

main74272-12550-E0i201106-201204

9046710203

main90467-10203

5 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA AXIO/FIELDER

This section contains 13 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA AXIO/FIELDER. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
