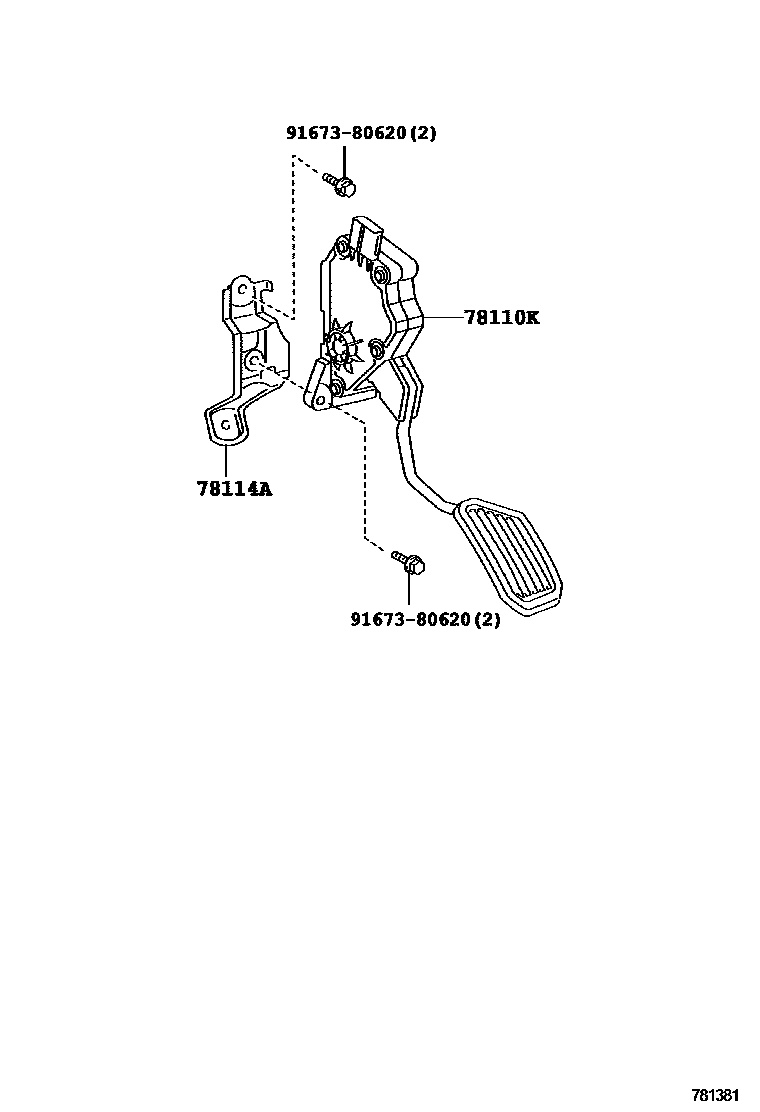

Toyota COROLLA AXIO/FIELDER — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52033iNRE160,NZE16#,ZRE162201204-201212

sub78110-52100

main78110-52100iNKE165,NRE160,NZE16#,ZRE162201301-201503

sub78110-52210

main78110-52110iNKE165,NRE16#,NZE16#,ZRE162201503-201601

sub78110-52220

main78110-52220iNKE165,NRE16#,NZE16#,ZRE162201602-201908

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-52020iNKE165,NRE160,NZE16#,ZRE162201204-201908

9167380620

main91673-80620

3 parts on this diagram · 1 diagram in section
