Toyota COROLLA AXIO/FIELDER — ABS & VSC

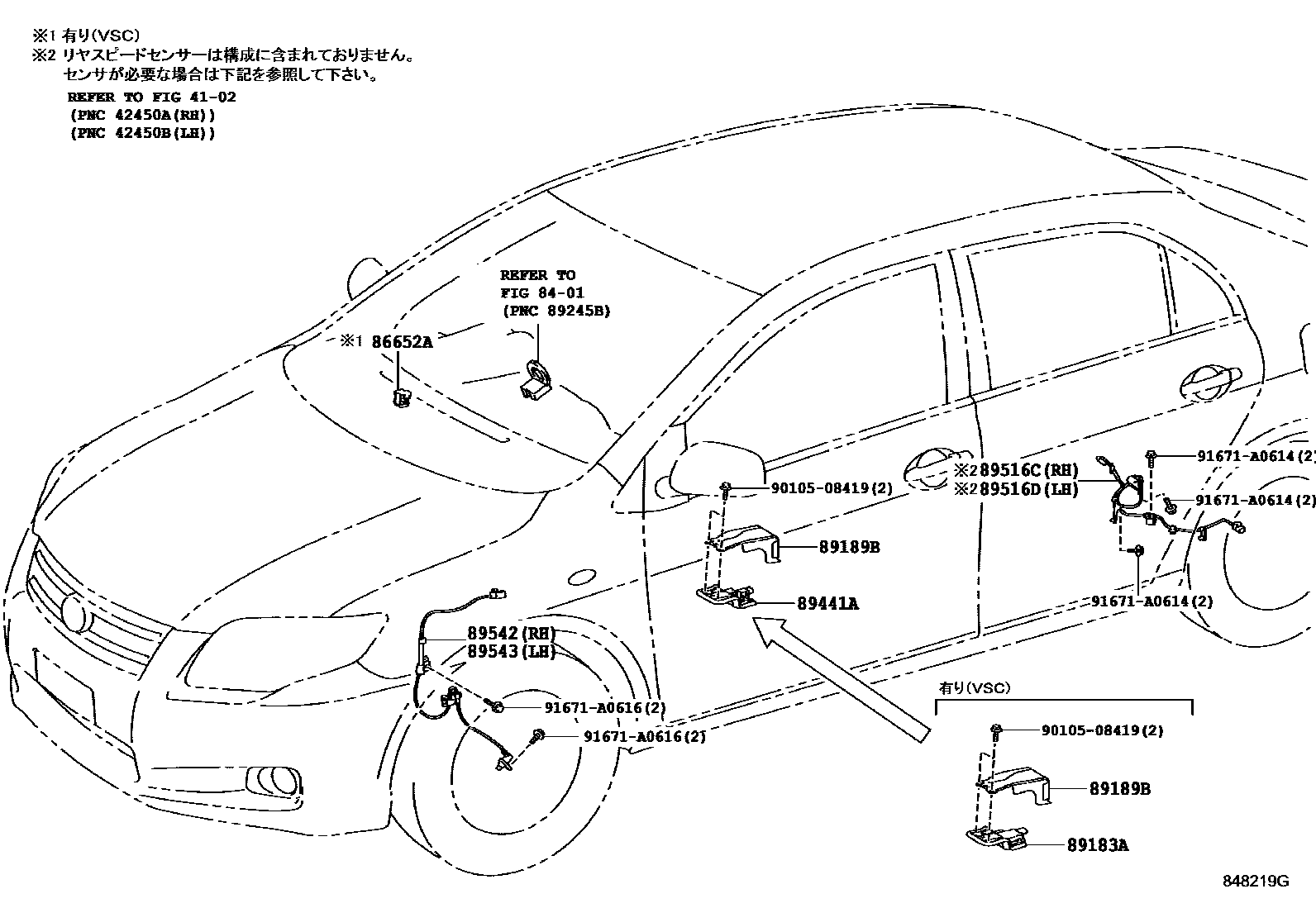

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010i200609-200810

89183ASENSOR, YAWRATE

main89180-12070i200609-200708

main89180-12100i200709-200810

main89180-12150i201006

89189BBRACKET, YAWRATE SENSOR

main89189-12100i200609-200810

89441ASENSOR, DECELERATION

main89440-12120i200609-200810

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-12120i200810-201204

main89516-12140i200609-200810

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-12130i200810-201204

main89516-12150i200609-200810

89542SENSOR, SPEED, FRONT RH

main89542-12100i200609-200810

89543SENSOR, SPEED, FRONT LH

main89543-12100i200609-200810

9010508419

main90105-08419

91671A0614

main91671-A0614

91671A0616

main91671-A0616

13 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota COROLLA AXIO/FIELDER
