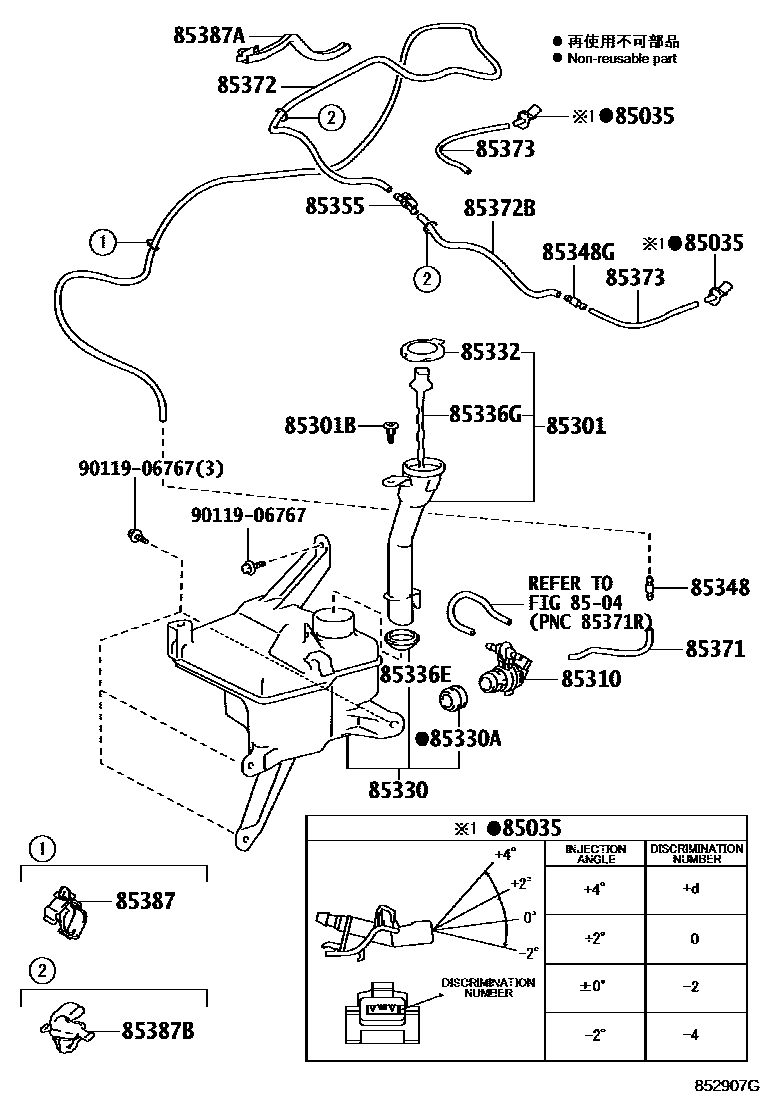

Toyota COROLLA/AURIS (JPP) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2i201208-201503

ANGLE 0

main85381-12410×2i201208-201301

ANGLE -2

main85381-12420×2i201503

ANGLE +2

main85381-12430×2i201301-201503

ANGLE +4

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-02010i201604

main85301-12020i201503

85301BCLIP, WASHER

main90467-07076-C0i201208-201503

BLACK

main90467-07076-C7i201703-201805

BLACK

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02050i201604

main85330-12350i201208-201503

85330JAR ASSY, WINDSHIELD WASHER

main85315-12670i201503

main85355-02200i201604

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201208-201503

main90069-20005i201604

85332CAP, WINDSHIELD WASHER JAR

main85316-33120i201208-201503

main85356-02200i201604

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201503

main90069-38005i201604

85336GGAGE, WATER LEVEL

main85313-12040i201503

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201503

main85375-05050i201604

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201503

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201503

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-16009i201604

*318:REFER ILLUST.

main90099-33080i201503

L=1450(*H,L=120)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62101i201208-201503

L=1943

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62076i201208-201503

L=360

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62080×2i201208-201503

L=170

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350i201208-201503

85387ACLAMP, WASHER, NO.2

main85388-12A70i201208-201503

85387BCLAMP, WASHER, NO.3

main85371-12040×2i201208-201503

9011906767

main90119-06767

21 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota COROLLA/AURIS (JPP)

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA/AURIS (JPP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, CLIP, WASHER.
