Toyota COROLLA/AURIS (JPP) — PARTIAL ENGINE ASSEMBLY

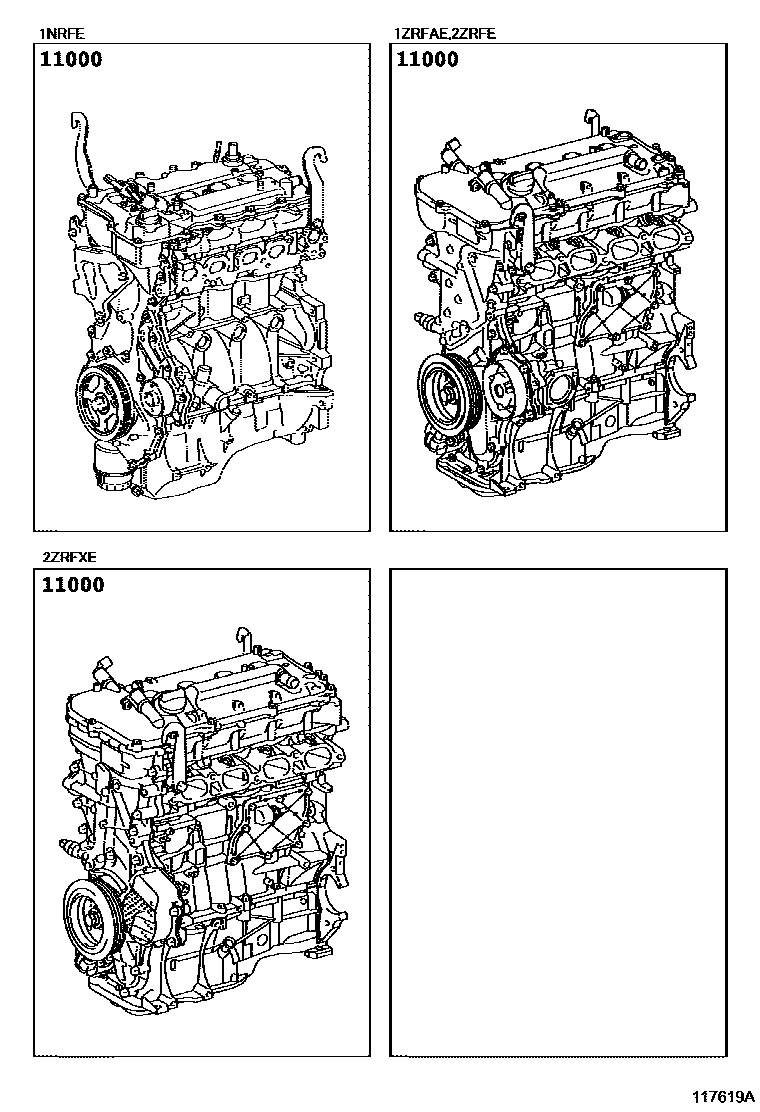

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-37440i201208-201503
main19000-37450i201208-201503
sub19000-37452
main19000-37472i201604
main19000-37720i201503-201505
main19000-37721i201505
main19000-37740i201503-201505
main19000-37741i201505
main19000-47180i201208-201301
main19000-47181i201301-201309
main19000-47340i201503

1 parts on this diagram · 1 diagram in section
