Toyota COROLLA/AURIS (JPP) — MIRROR

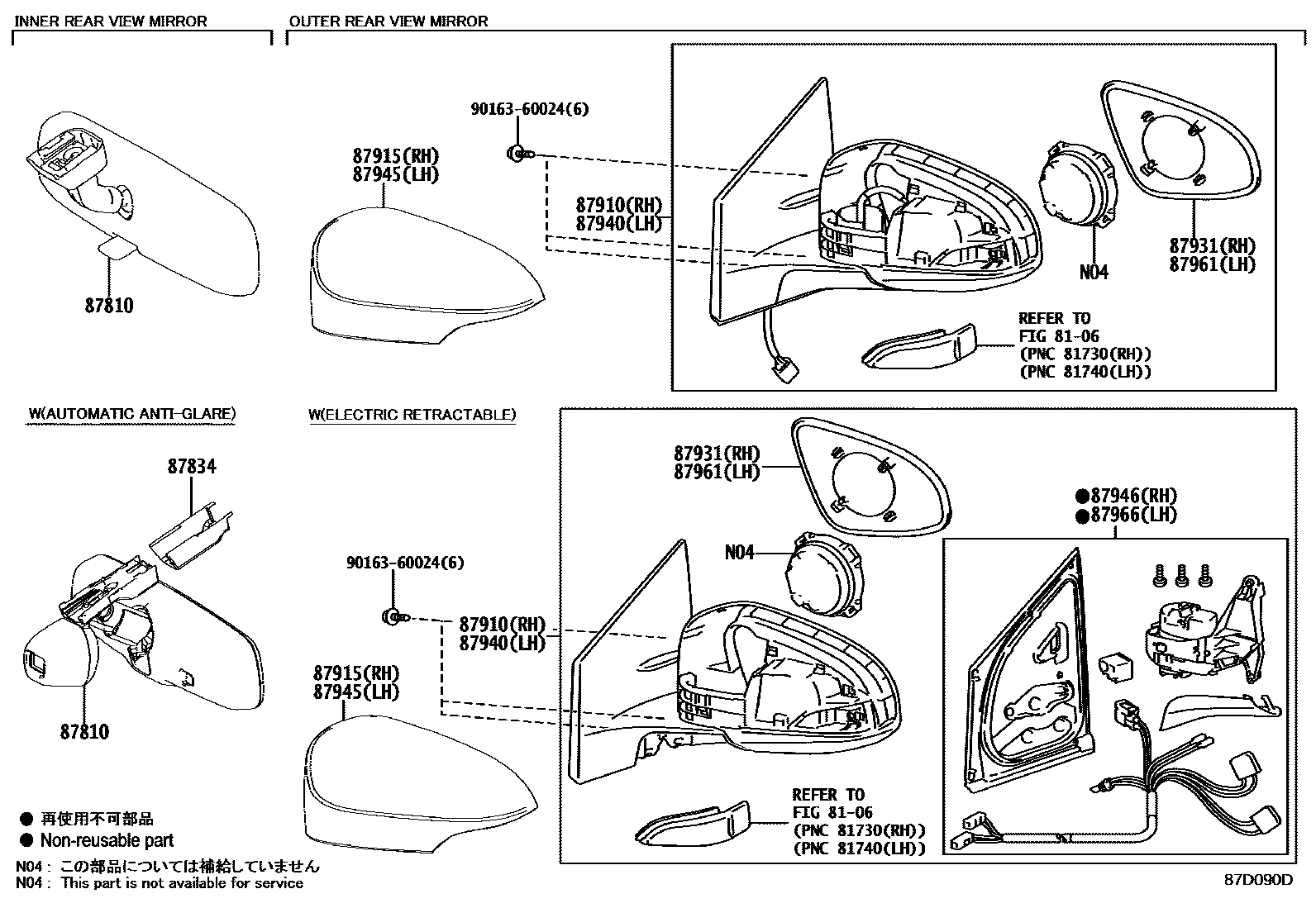

Parts diagram
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
→ Go to FIG 81-06
87810MIRROR ASSY, INNER REAR VIEW
main87810-0W810i201208-201503
"S PACKAGE"
main87810-0WQ40i201503
main87810-52041i201208-201503
main87810-0W820i201208-201503
"S PACKAGE"
main87810-0WQ50i201611
WITH(TFT COLOR MULTI INFORMATION DISPLAY&PRE-COLLISION SYSTEM-WITH
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-0W070i201208-201503
"S PACKAGE"
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-12K10i201208-201503
NO PAINT REQ.
main87910-12J70i201503
NO PAINT REQ.,SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER); NO PAINT REQ.,WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMARTENTRY) & W(ANSWER BACK BUZZER)
87915COVER, OUTER MIRROR, RH
main87915-33020-A0i201503-201805
SUPER WHITE 2,040
main87915-33020-A1i201208-201503
WHITE PEARL CS.,070
main87915-33020-B0i201503-201805
SILVER ME.,1F7
main87915-33020-C1i201503-201805
BLACK MC.,209
main87915-33020-D0i201503-201805
RED M.M.,3R3
main87915-33020-E1i201208-201503
AVANT-GARDE BRONZE ME.,4V8
main87915-33020-E2i201208-201503
ORANGE ME.,4R8
main87915-33020-G2i201503-201805
CITRUS M.M.,6W2
main87915-33020-J2i201208-201503
BLUE ME.,8T7
main87915-33020-R0i201503-201805
BLUE ME.,8X7
87931OUTER MIRROR, RH
main87931-12K10i201503
main87931-12J70i201503
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER); WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-12K10i201208-201503
NO PAINT REQ.
main87940-12J70i201503
NO PAINT REQ.,SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER); NO PAINT REQ.,WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMARTENTRY) & W(ANSWER BACK BUZZER)
87945COVER, OUTER MIRROR, LH
main87945-33020-A0i201208-201503
SUPER WHITE 2,040
main87945-33020-A1i201503-201805
WHITE PEARL CS.,070
main87945-33020-B0i201208-201503
SILVER ME.,1F7
main87945-33020-C1i201503-201805
BLACK MC.,209
main87945-33020-D0i201208-201503
RED M.M.,3R3
main87945-33020-E1i201208-201503
AVANT-GARDE BRONZE ME.,4V8
main87945-33020-E2i201503-201805
ORANGE ME.,4R8
main87945-33020-G2i201503-201805
CITRUS M.M.,6W2
main87945-33020-J2i201208-201503
BLUE ME.,8T7
main87945-33020-R0i201503-201805
BLUE ME.,8X7
87946RETRACTOR, OUTER MIRROR, RH
main87946-12J70i201503
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER); WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)
87961MIRROR OUTER, LH
main87961-12K10i201503
main87961-12J70i201503
SPORT PACKAGE&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER); WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER)
87966RETRACTOR, OUTER MIRROR, LH
main87966-12J70i201208-201503
"S PACKAGE"
9016360024
main90163-60024

12 parts on this diagram · 2 diagrams in section

MIRROR for Toyota COROLLA/AURIS (JPP)

This section contains 12 genuine Toyota parts for the MIRROR system of the Toyota COROLLA/AURIS (JPP). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
