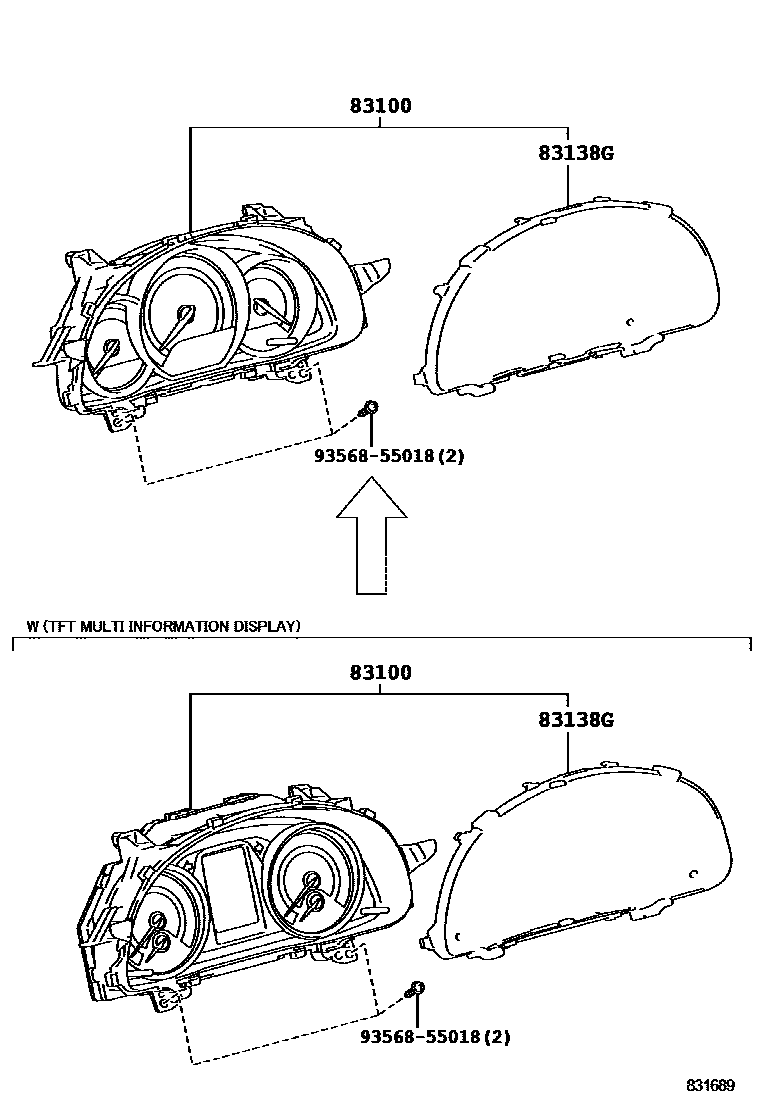

Toyota COROLLA/AURIS (JPP) — METER

83100METER ASSY, COMBINATION

main83800-12W20i201208-201309

main83800-12W21i201309-201503

main83800-12W30i201208-201309

main83800-12W31i201309-201503

main83800-12W40i201208-201305

SPEEDOMETER-WITH(MULTI INFORMATION DISPLAY)

main83800-12W41i201306-201309

SPEEDOMETER-WITH(MULTI INFORMATION DISPLAY)

main83800-12W42i201309-201503

SPEEDOMETER-WITH(MULTI INFORMATION DISPLAY)

main83800-1AA30i201503

SPEEDOMETER-KM/H,WITH(MULTI INFORMATION DISPLAY)

main83800-1AA40i201503

main83800-1AA50i201503

main83800-1AA80i201604

main83800-12V90i201208-201305

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM; SPORT PACKAGE

main83800-12V91i201306-201309

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM; SPORT PACKAGE

main83800-12V92i201309-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM; SPORT PACKAGE

main83800-1AA00i201503-201605

SPORT PACKAGE; WITH(TFT COLOR MULTI INFORMATION DISPLAY

main83800-1AA01i201611

SPORT PACKAGE&PRE-COLLISION SYSTEM-WITH; WITH(TFT COLOR MULTI INFORMATION DISPLAY&PRE-COLLISION SYSTEM-WITH

main83800-1AA10supersedes 83800-1AA20i201611

PRE-COLLISION SYSTEM-WITH

83138GGLASS, COMBINATION METER

main83852-12V30i201503

main83852-12V50i201208-201503

"S PACKAGE"&HEADLAMP-DISCHARGE & AFS & AUTOMATIC HIGH BEAM; SPEEDOMETER-WITH(MULTI INFORMATION DISPLAY); SPORT PACKAGE

main83852-12Z70i201503

SPEEDOMETER-KM/H,WITH(MULTI INFORMATION DISPLAY); SPORT PACKAGE; WITH(TFT COLOR MULTI INFORMATION DISPLAY

9356855018

main93568-55018

3 parts on this diagram · 1 diagram in section

METER for Toyota COROLLA/AURIS (JPP)

This section contains 3 genuine Toyota parts for the METER system of the Toyota COROLLA/AURIS (JPP). Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
