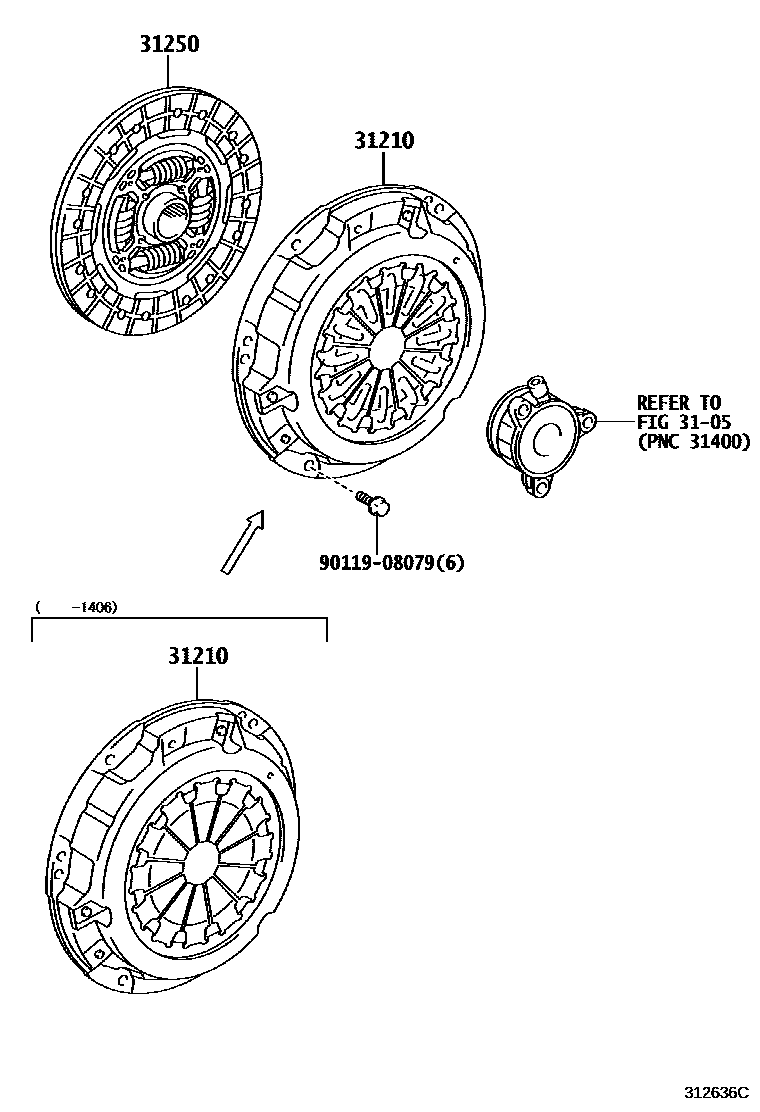

Toyota COROLLA/AURIS (JPP) — CLUTCH & RELEASE FORK

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31210COVER ASSY, CLUTCH

main31210-12340i201208-201503

main31210-52130i201208-201406

main31210-52170i201406-201503

31250DISC ASSY, CLUTCH

main31250-12600i201208-201503

main31250-52210i201503-201603

main31250-52211i201604-201612

main31250-52212i201701

9011908079

main90119-08079

4 parts on this diagram · 2 diagrams in section

CLUTCH & RELEASE FORK for Toyota COROLLA/AURIS (JPP)

This section contains 4 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota COROLLA/AURIS (JPP). Key components include: CLUTCH RELEASE CYLINDER, COVER ASSY, CLUTCH, DISC ASSY, CLUTCH.
