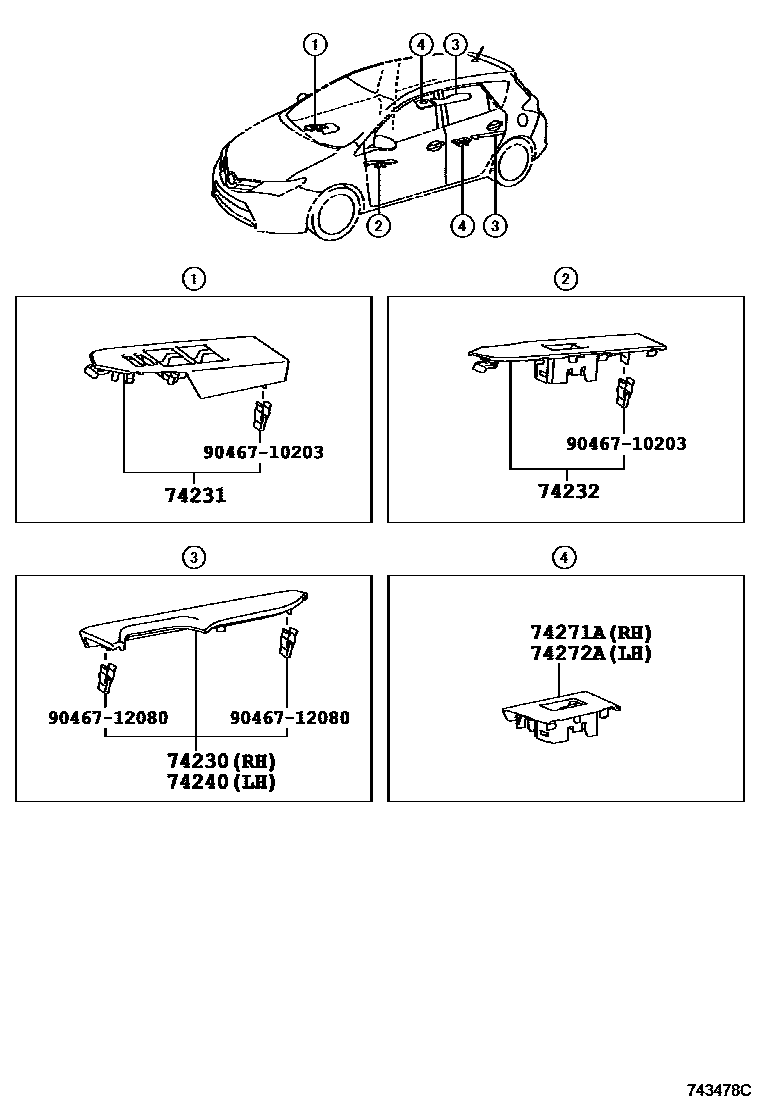

Toyota COROLLA/AURIS (JPP) — ARMREST & VISOR

74230ARMREST ASSY, REAR, RH

main74250-12060-C3i201208-201503

BLACK/RED,TRIM20

main74250-12060-C4i201208-201503

BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20

main74250-12090-C2i201503-201805

BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20

main74250-12090-C3i201503-201805

BLACK/ORANGE,TRIM2#; BLACK/ORANGE,TRIM20

main74250-12100-C2i201503-201805

BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY,BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12C60-C0i201208-201503

"S PACKAGE",BLACK,TRIM2#; BLACK,TRIM2#

main74231-12C70-C0i201208-201503

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12A30-C0i201208-201503

BLACK,TRIM2#

74240ARMREST ASSY, REAR, LH

main74260-12060-C3i201208-201503

BLACK/RED,TRIM20

main74260-12060-C4i201208-201503

BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20

main74260-12090-C2i201503-201805

BLACK/GRAY,TRIM2#; BLACK/GRAY,TRIM20

main74260-12090-C3i201503-201805

BLACK/ORANGE,TRIM2#; BLACK/ORANGE,TRIM20

main74260-12100-C2i201503-201805

BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY&WIRELESS DOOR LOCK-W(SMART ENTRY) & W(ANSWER BACK BUZZER),BLACK,TRIM2#; WITH(TFT COLOR MULTI INFORMATION DISPLAY,BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12450-C0i201208-201503

BLACK,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12460-C0i201503-201805

BLACK,TRIM2#

9046710203

main90467-10203

9046712080

main90467-12080

8 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA/AURIS (JPP)

This section contains 20 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA/AURIS (JPP). Key components include: ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, REAR, LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
