Toyota COROLLA (ASIA/INDIA) — PARTIAL ENGINE ASSEMBLY

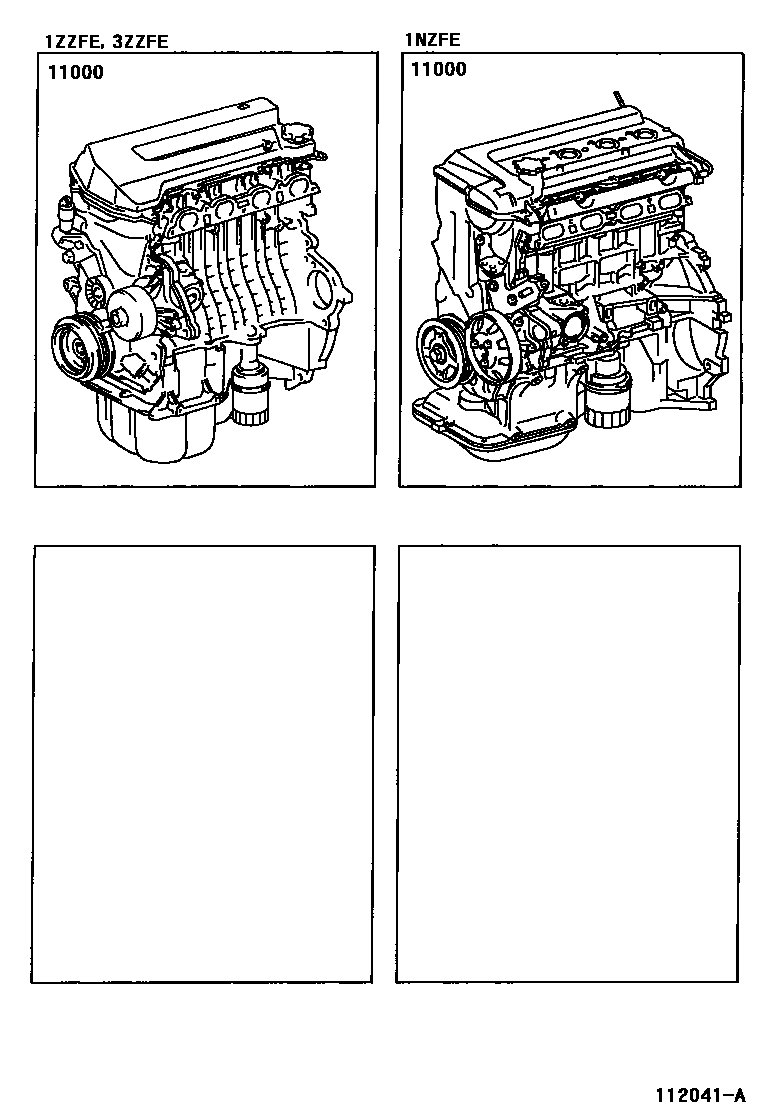

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0D091i200311-200401

main19000-0D100i200105-200311

main19000-0D101i200311-200808

main19000-0D102i200808

main19000-0D110i200103-200311

main19000-0D111i200311-200401

main19000-0D120i200107-200311

main19000-0D130i200107-200311

main19000-0D260i200105-200311

main19000-0D261i200311-200710

main19000-0D281i200311-200802

main19000-0D370i200710-200801

main19000-21110i200107-200403

main19000-22210i200107-200403

main19000-22330i200508-200807

main19000-22331i200807

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota COROLLA (ASIA/INDIA)

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota COROLLA (ASIA/INDIA). Key components include: ENGINE ASSY, PARTIAL.
