Toyota COROLLA/ALTIS — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
main85315-02340iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH,VN)200801-201003
main85315-02470iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC201008
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85375-06101iZRE142..HTWCF;ZRE142..(18G,18J,E)..(IDN,IND,MA,VN);ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=180
L=1800(*H,L=80)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=40
L=1930
L=40
L=1450(*H,L=40)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=510
main90068-59065iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008
L=1880
L=1880
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90068-59063iZRE142..HTWCF;ZRE142..(18G,18J,E)..(IDN,IND,MA,VN);ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
L=510
L=1800(*H,L=510)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=190)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
9011906767
main90119-06767
90119T0144
main90119-T0144

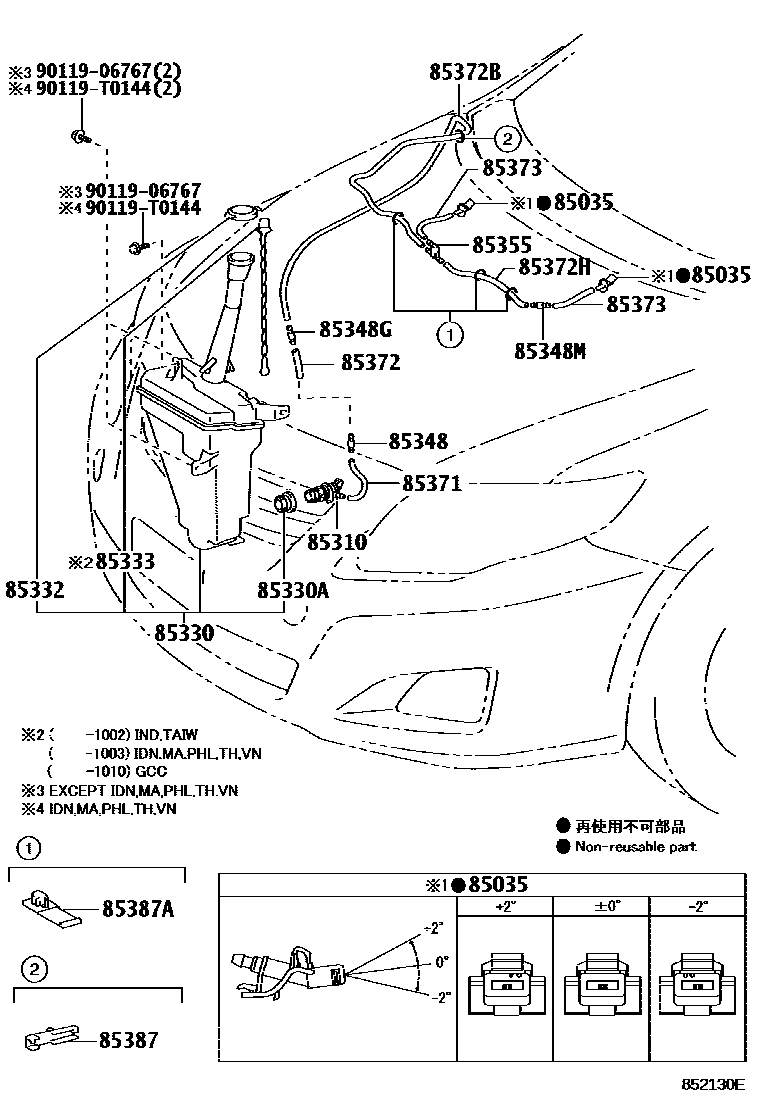

19 parts on this diagram · 3 diagrams in section
WINDSHIELD WASHER for Toyota COROLLA/ALTIS
This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA/ALTIS. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
