Toyota COROLLA/ALTIS — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

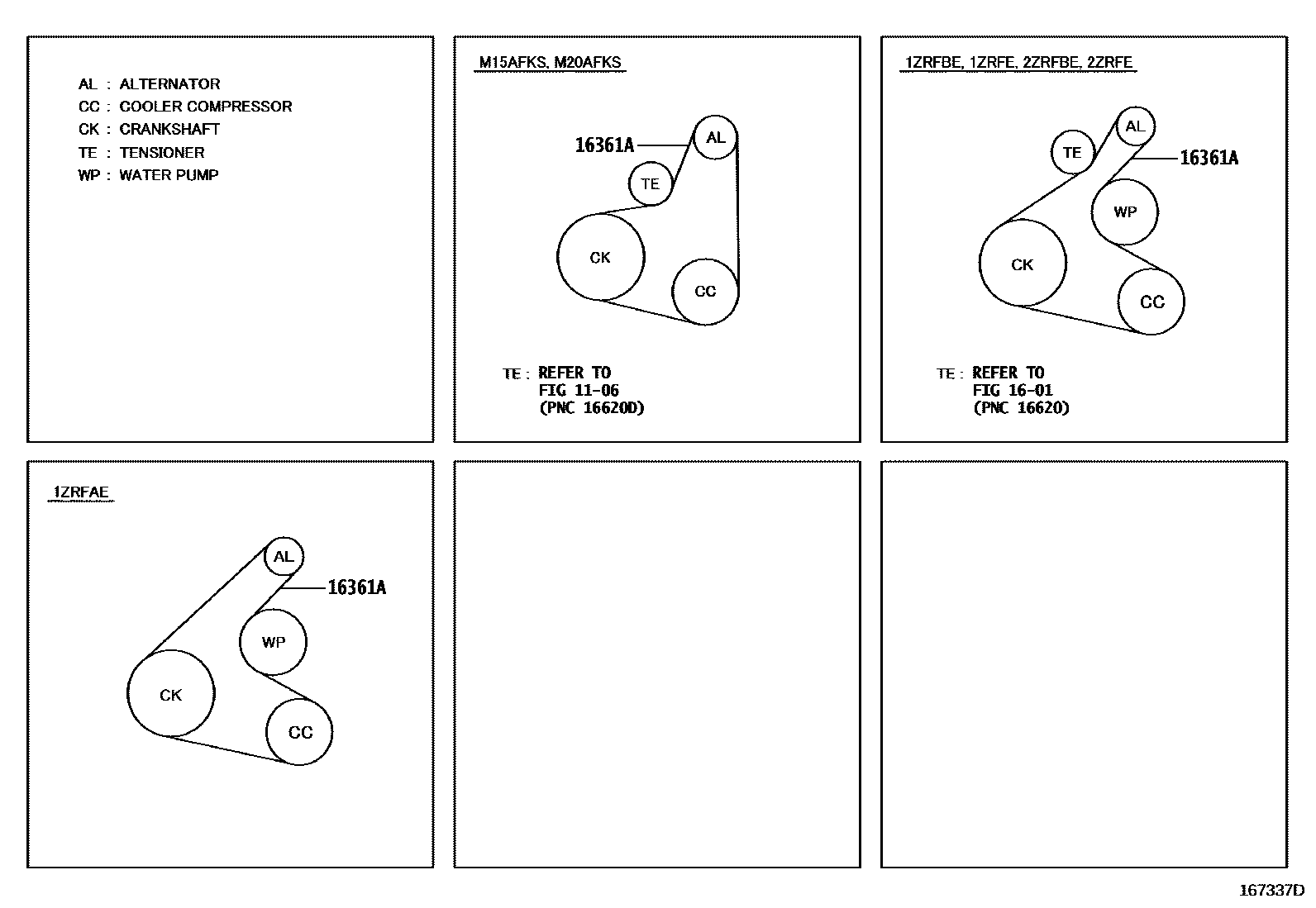

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02679i202306

main90916-02706i201904-202304

(J)

main90916-02755i201904-202305

main90916-02772i202305

main90916-02789i202305

main90916-T2043i202304-202410

(L)

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA/ALTIS

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota COROLLA/ALTIS. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
