Toyota COROLLA/ALTIS — V-BELT

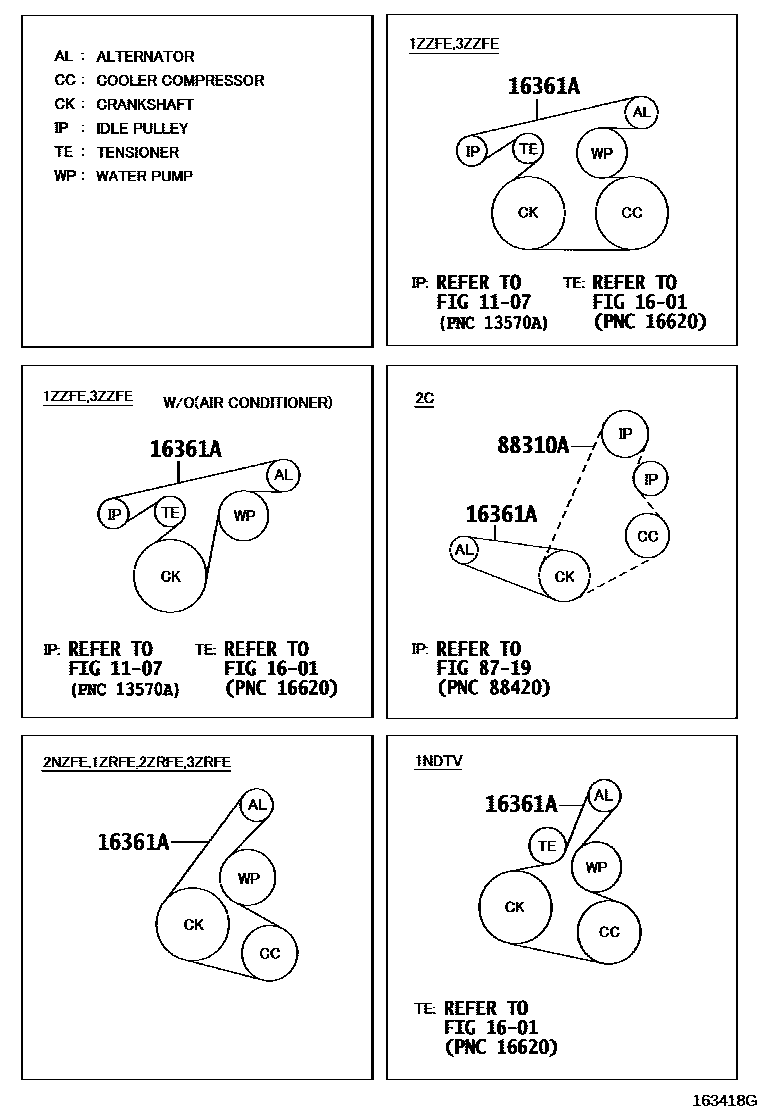

Parts diagram

1107MOUNTING

→ Go to FIG 11-07

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02372i201104-201406

main90916-02556i201104-201202

main90916-02574i200712-200902

main90916-02674i201006-201105

main90916-02679i201007-201203

main90916-02705i201203-201406

main90916-T2027i201203-201311

(L)

main99366-H1700i201008-201311

main90916-02539supersedes 90916-02660i200901-200902

AIR CONDITIONER-WITHOUT

main99366-H1400supersedes 90916-02660i200903-201007

AIR CONDITIONER-WITHOUT

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99365-C1210i201104

L=1210

main99365-D1210i200808-200908

L=1210

main99365-H1210i200909-201104

L=1210

5 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA/ALTIS

This section contains 5 genuine Toyota parts for the V-BELT system of the Toyota COROLLA/ALTIS. Key components include: MOUNTING, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR), HEATING & AIR CONDITIONING - COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1.
