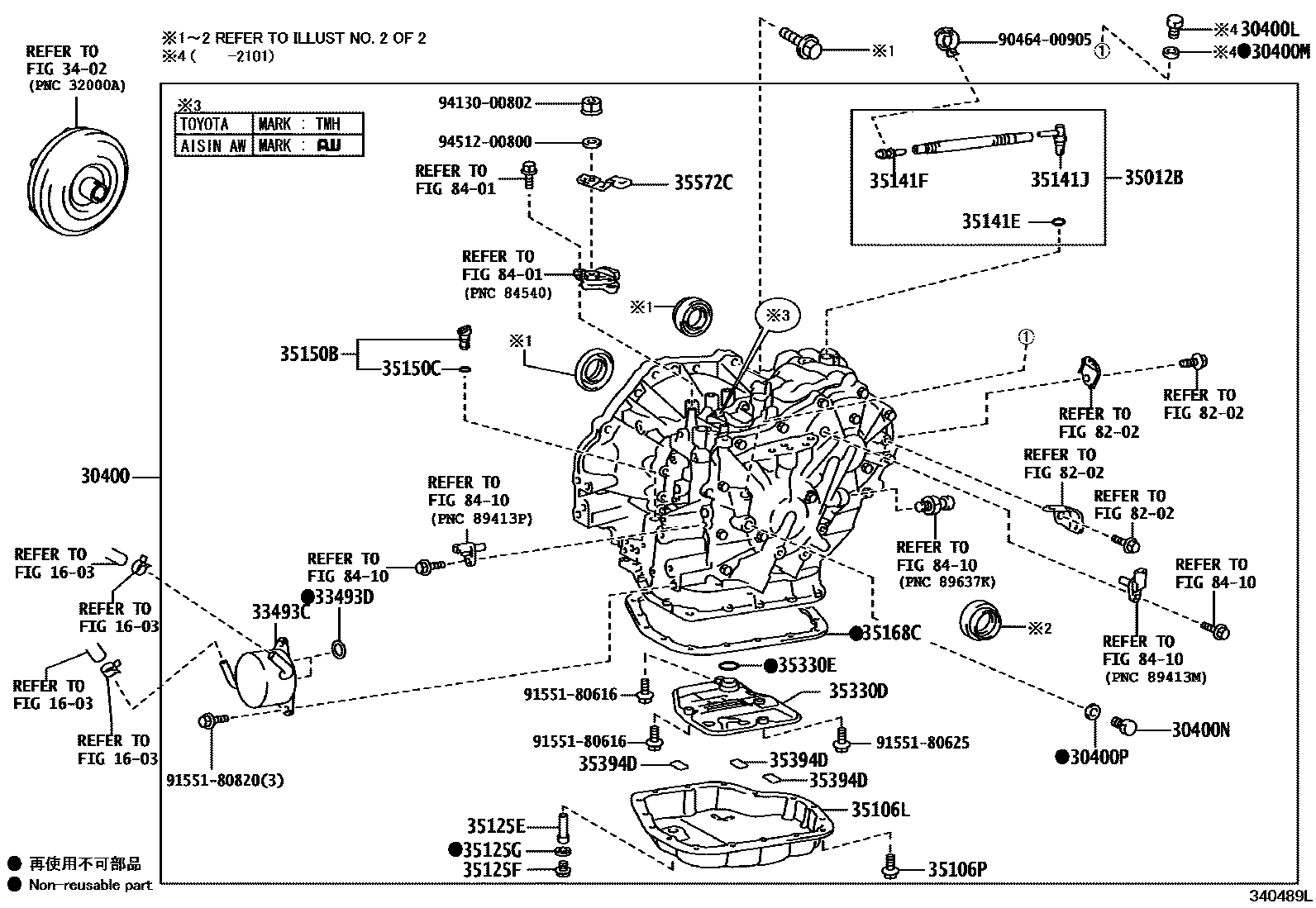

Toyota COROLLA/ALTIS — TRANSAXLE ASSY(CVT)
1603RADIATOR & WATER OUTLET
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K313,AISIN AW:REF.ILLUST
K313
K313
K111
30400LPLUG , FILLER(CVT)
30400MGASKET, FILLER PLUG(CVT)
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
AISIN AW:REF.ILLUST
33493DRING, O (FOR TRANSMISSION OIL COOLER)
3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)
35012BHOSE SUB-ASSY, TRANSMISSION BREATHER
AISIN AW:REF.ILLUST
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
TOYOTA:REFER TO ILL.
AISIN AW:REF.ILLUST
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
TOYOTA:REFER TO ILL.
AISIN AW:REF.ILLUST
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35141JPLUG, BREATHER, NO.2(CVT)
main90930-03191iZRE171..CVT..(PHL,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH)201507-201610
TOYOTA:REFER TO ILL.
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
main35330-12050iZRE171..CVT..(PHL,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH)201507-201610
35330ERING, O (FOR OIL STRAINER)
AISIN AW:REF.ILLUST
35394DMAGNET, OIL CLEANER(CVT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
AISIN AW:REF.ILLUST
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9046400905
main90464-00905
9155180616
main91551-80616
9155180625
main91551-80625
9155180820
main91551-80820
9413000802
main94130-00802
9451200800
main94512-00800
34 parts on this diagram · 9 diagrams in section
TRANSAXLE ASSY(CVT) for Toyota COROLLA/ALTIS
This section contains 133 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota COROLLA/ALTIS. Key components include: RADIATOR & WATER OUTLET, TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, BOLT(FOR TRANSAXLE & ENGINE SETTING), SEAL, TYPE T OIL(FOR CVT OIL PUMP), PLUG, TRANSAXLE HOLE.
