83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRE17#201310-201402

main83530-12060iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE171,173..CVT,MTM;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201610

main83530-28010iNDE170201405-201702

DENSO

main83530-28020iNZE170201310-201707

DENSO

main83530-60010iNDE170201703-201906

YAZAKI

main83530-60020iZRE171,172..PKN201610-201707

YAZAKI

89429FSENSOR, TEMPERATURE

main89429-12010iZRE172..6F..PKN201610-202109

89465SENSOR, OXYGEN

main89465-02420iZRE171..TH201611-201907

main89465-12B90iZRE172..18E..VN;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);ZRE171,173..(CVT,MTM)..(HTWC,HTWVM);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201610

main89465-52380iNZE170201407-201707

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE170201405-201702

main89467-52060iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

89615SENSOR, KNOCK CONTROL

main89615-20090iZRE171..4FC..N201610-202208

8271512L60BRACKET,WIRING HARNESS CLAMP

main82715-12L60

8271512Q50BRACKET,WIRING HARNESS CLAMP

main82715-12Q50

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105T0178

main90105-T0178

9017906219

main90179-06219

90182T0006

main90182-T0006

9043012221

main90430-12221

9155180835

main91551-80835

9155381014

main91553-81014

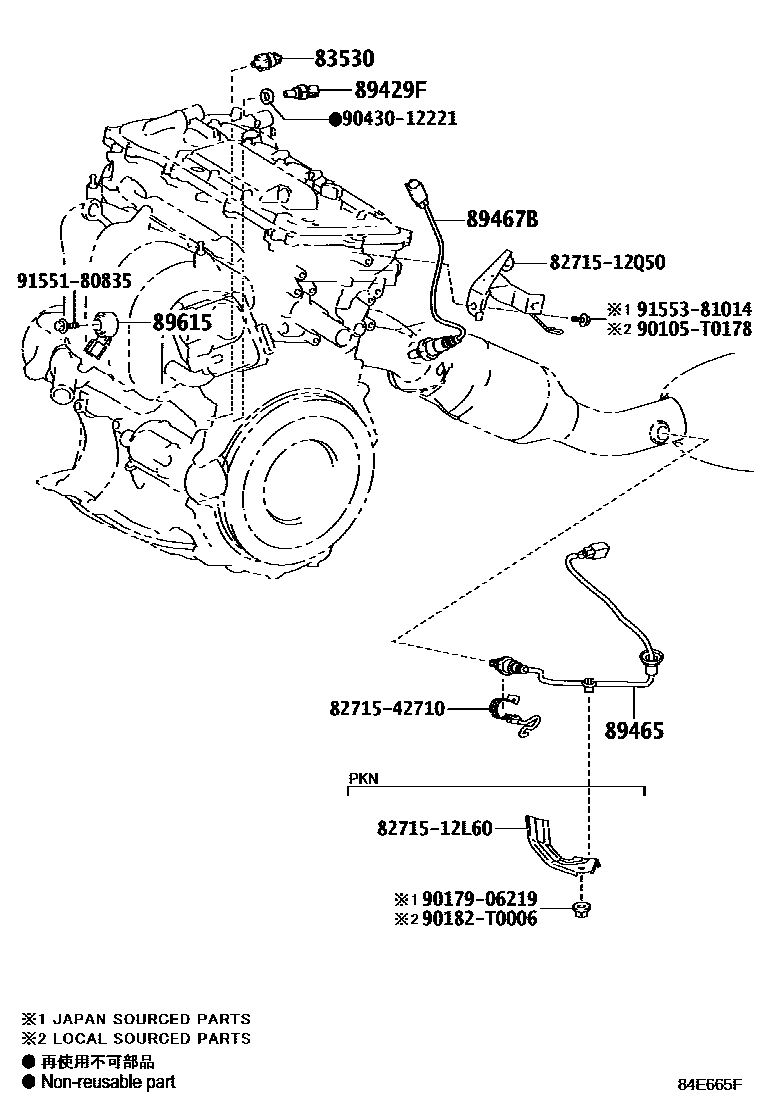

14 parts on this diagram · 15 diagrams in section
