Toyota COROLLA/ALTIS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0010 1ENGINE & TRANSMISSION 0011 1ENGINE ROOM 0012 1ENGINE ROOM RELAY BLOCK 0013 1COWL 0014 1COWL 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1STEERING 0018 1SEAT 0019 1DOOR,ROOF,FLOOR & LUGGAGE

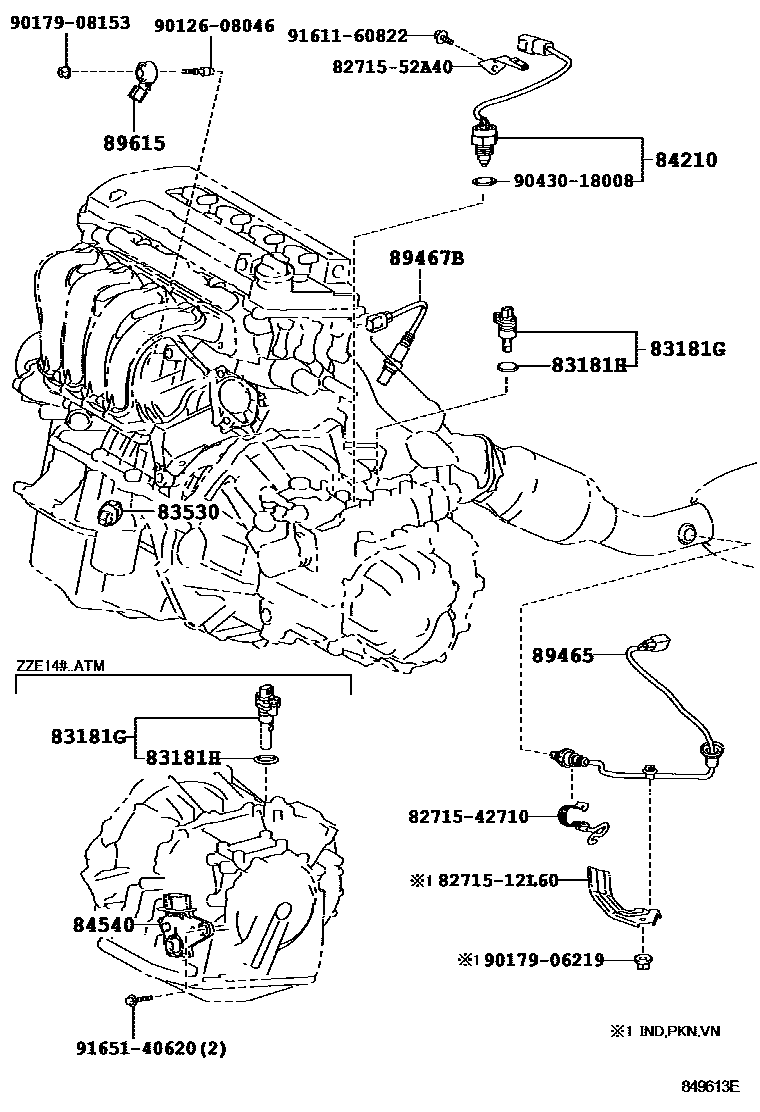

83181GSENSOR, SPEEDOMETER

main83181-12020iNZE140,ZRE141,ZZE141..MTM201008-201406

main83181-12030iCE140200808-201104

main83181-12040iZZE141..4FC200712-201008

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iCE140;ZZE141..4FC200712-201104

main96711-24030iNZE140,ZZE141..5F200801-201104

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZRE14#..IND,PKN,VN201310-201402

YAZAKI

main83530-12060iZRE14#201402

YAZAKI

main83530-12070iZRE14#201402

DENSO

main83530-28010iCE140,NDE140201104

DENSO

main83530-28020iZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW;ZRE143..CVFC..(IDN,MA,PHL,TAIW,TH);NZE140,ZRE141..16E,16G,16V,GLI,XLI;ZRE141,142..(6F,CVFC)..(16J,1201007

DENSO

main83530-60010iNDE140200808-201105

main83530-60020iZZE142..PKN200712

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iCE140201008-201406

main84210-52010iNZE140,ZZE14#..5F200801-201105

main84210-52050iNDE140,ZRE141,142..6F201205-201407

84540SWITCH ASSY, NEUTRAL START

main84540-46010iZRE141,142..4FC;ZZE141..16G..TH201007-201406

main84540-48010iZRE143..4FC200811-201010

main84540-52070iZRE142,143..CVFC201007-201407

89465SENSOR, OXYGEN

main89465-02210iZRE143,ZZE14#..4FC,5F200712-201105

main89465-52380iNZE140201104-201406

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE140201107-201312

(L)

main89467-12030iZRE143..VN200811-201010

main89467-12100iZZE142..VN200712-201010

main89467-12130iNDE140201107-201312

(J)

main89467-12170iNDE140201105-201106

main89467-52060iZRE141,142..ATM..(16J,18G)..TH201007-201211

89615SENSOR, KNOCK CONTROL

main89615-20090iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

8271512L60BRACKET,WIRING HARNESS CLAMP

main82715-12L60

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

9012608046

main90126-08046

9017906219

main90179-06219

9017908153

main90179-08153

9043018008

main90430-18008

9161160822

main91611-60822

9165140620

main91651-40620

17 parts on this diagram · 15 diagrams in section
