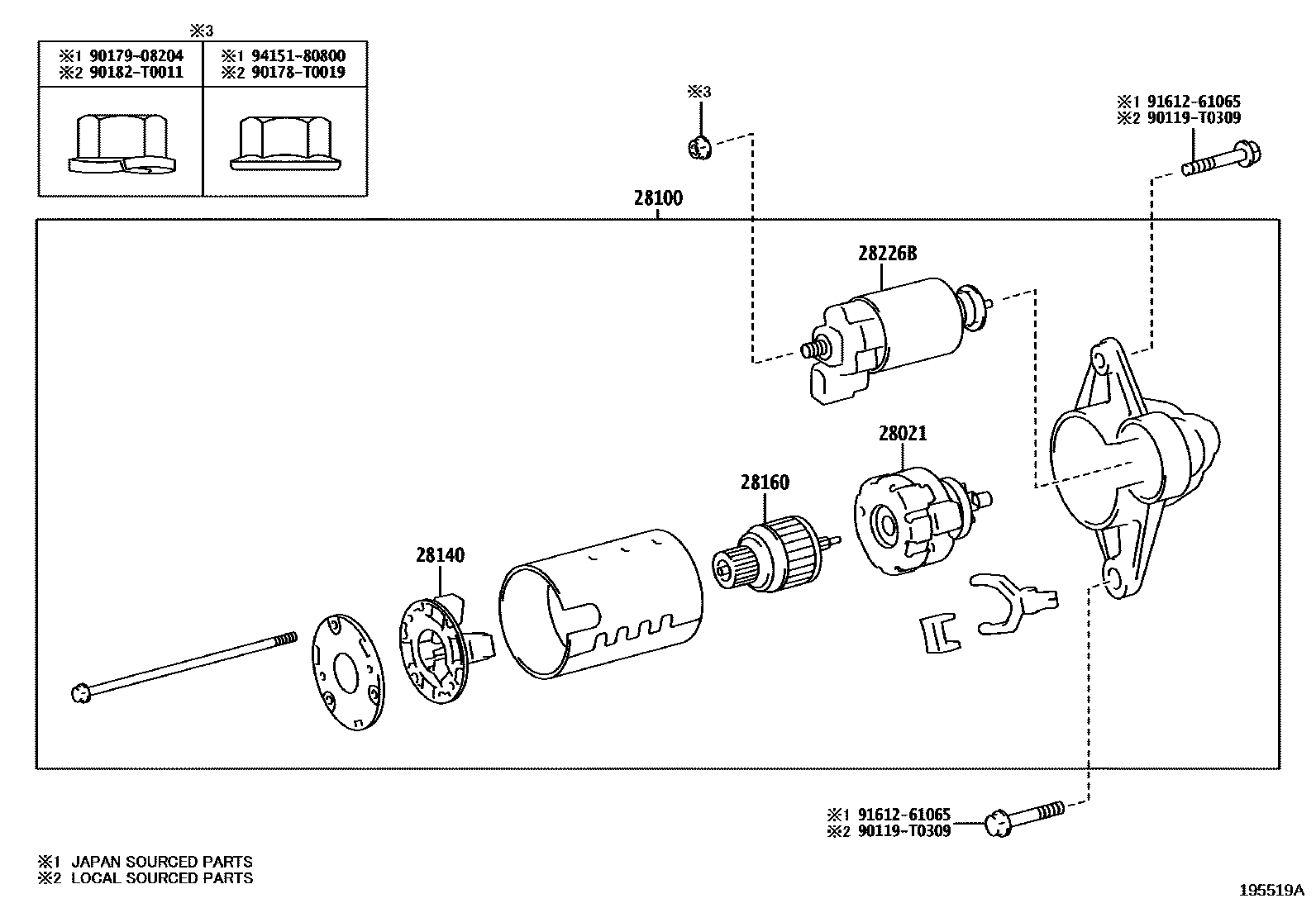

Toyota COROLLA/ALTIS — STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
12V 1.0KW
12V 1.0KW
12V 1.0KW
12V 1.0KW
28140HOLDER ASSY, STARTER BRUSH
main28140-0Y300i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306
28160ARMATURE ASSY, STARTER
28226BSTARTER KIT, REPAIR SERVICE
90119T0309
main90119-T0309
90178T0019
main90178-T0019
9017908204
main90179-08204
90182T0011
main90182-T0011
9161261065
main91612-61065
9415180800
main94151-80800
11 parts on this diagram · 3 diagrams in section
STARTER for Toyota COROLLA/ALTIS
This section contains 15 genuine Toyota parts for the STARTER system of the Toyota COROLLA/ALTIS. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOLDER ASSY, STARTER BRUSH, ARMATURE ASSY, STARTER, TERMINAL, STARTER.
