Toyota COROLLA/ALTIS — STARTER
28011CLUTCH SUB-ASSY, STARTER
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014SHAFT SUB-ASSY, PLANET CARRIER
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
28100STARTER ASSY
12V 0.8KW
12V 0.8KW
12V 1.0KW
12V 1.0KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 1.6KW
28110HOUSING ASSY, STARTER DRIVE
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
main28113-0T080i1ZRFE..ZRE171..CVT..GLI;1ZRFE..ZRE171..(CVT,MTM)..XLI..GCC;2ZRFE,3ZRFE..ZRE172,173..CVT..(GCC,TAIW)201310-201609
28120YOKE ASSY, STARTER
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
main28150-0T070i3ZRFE..ZRE173..20V..(MA,PHL);1ZR#,2ZR#..ZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH201611-201907
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
28176SCREW, STARTER
28177PLATE(FOR STARTER ARMATURE)
28199APROTECTOR, DUST STARTER
28255GEAR, PLANET
28256GEAR, STARTER INTERNAL
main28256-0T080i1ZRFE..ZRE171..CVT..GLI;1ZRFE..ZRE171..(CVT,MTM)..XLI..GCC;2ZRFE,3ZRFE..ZRE172,173..CVT..(GCC,TAIW)201310-201609
9006801018
main90068-01018
9009690030
main90096-90030
9009901538
main90099-01538
9009901539
main90099-01539
9009901542
main90099-01542
9009904373
main90099-04373
9009904448
main90099-04448
9009905178
main90099-05178
9009907124
main90099-07124
9009912405
main90099-12405
9017908204
main90179-08204
9161261065
main91612-61065

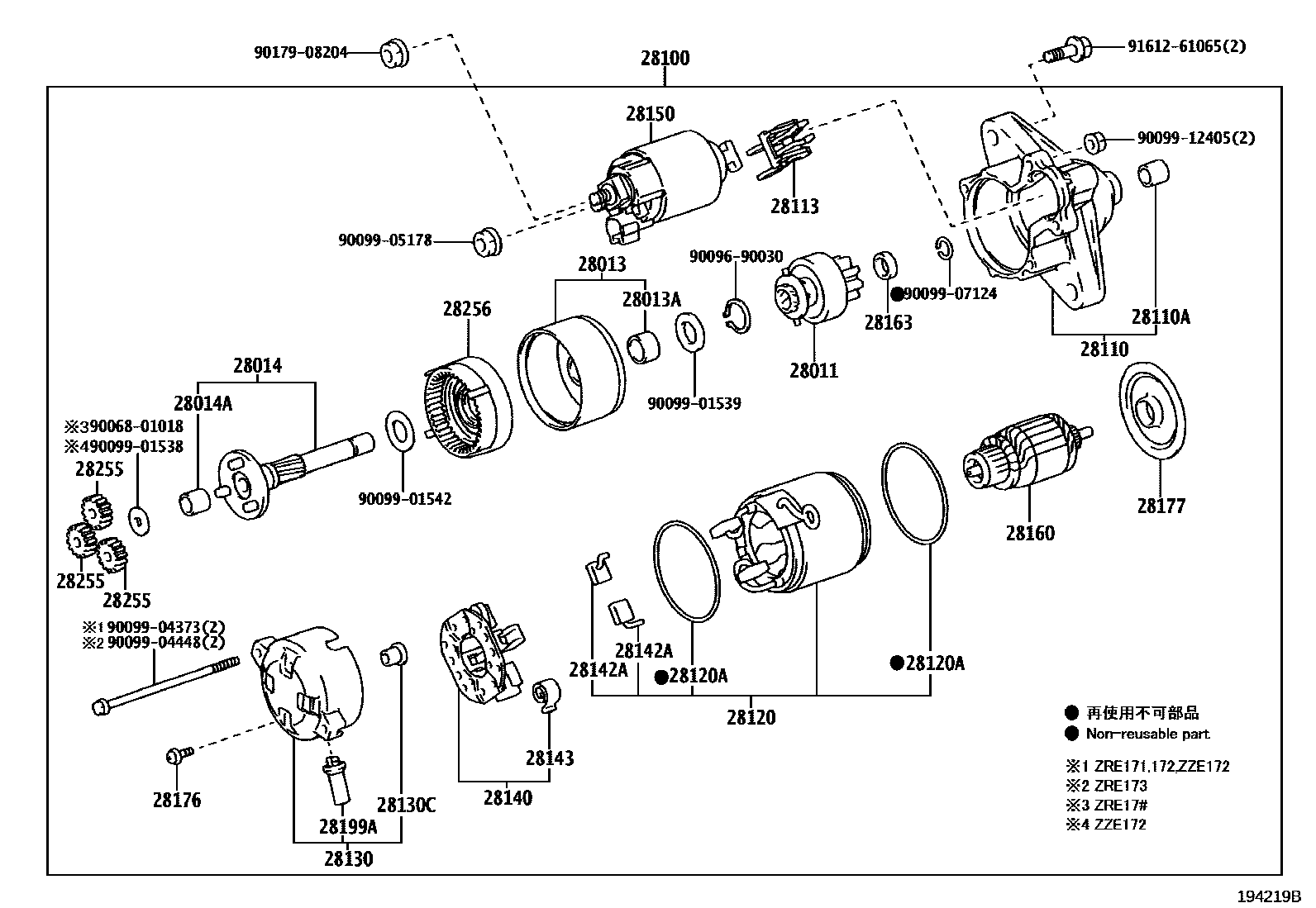

36 parts on this diagram · 5 diagrams in section
STARTER for Toyota COROLLA/ALTIS
This section contains 40 genuine Toyota parts for the STARTER system of the Toyota COROLLA/ALTIS. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, SHAFT SUB-ASSY, PLANET CARRIER, BUSH OR BEARING, PLANET CARRIER SHAFT.
