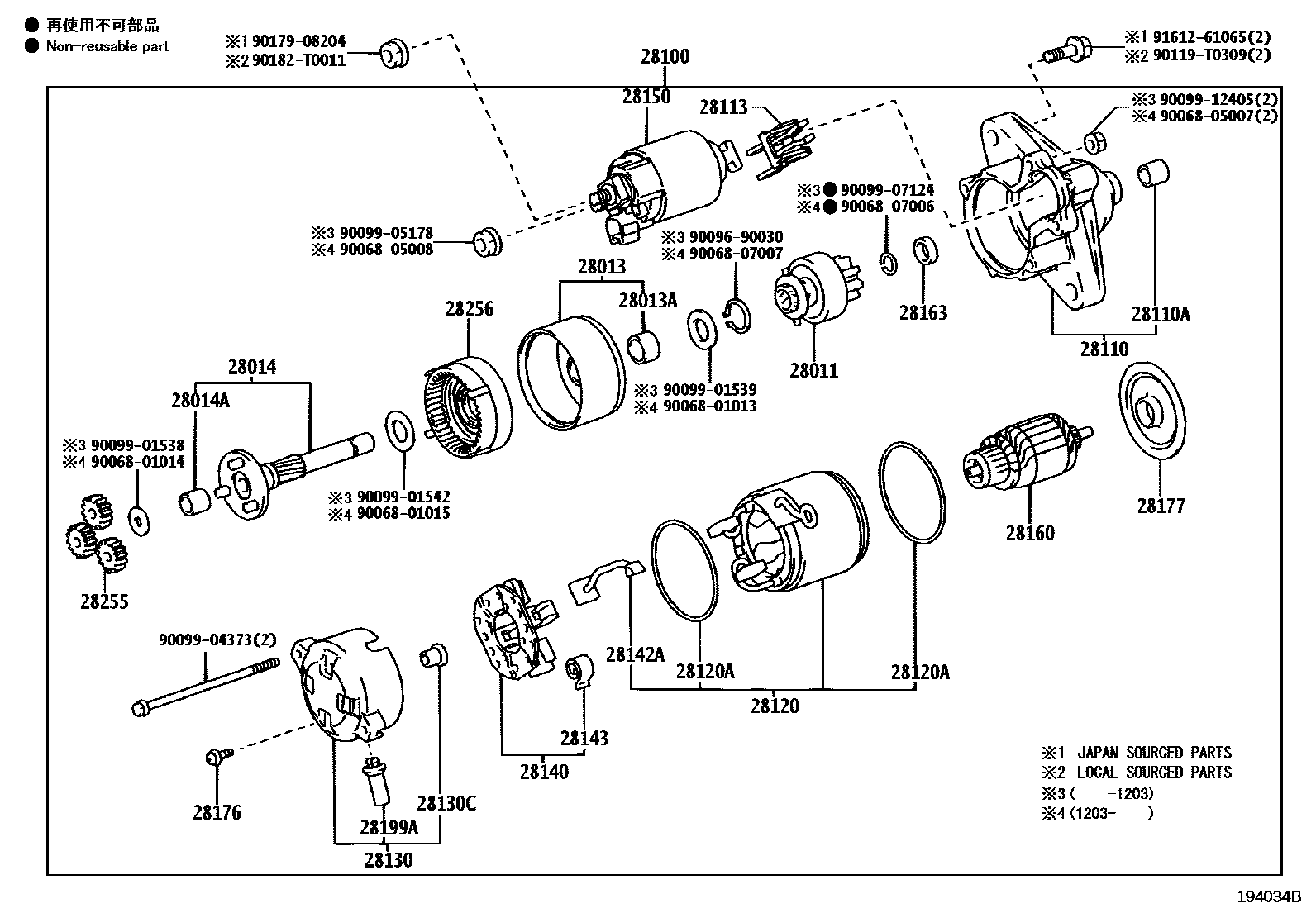

Toyota COROLLA/ALTIS — STARTER
28011CLUTCH SUB-ASSY, STARTER
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
28014SHAFT SUB-ASSY, PLANET CARRIER
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
main90099-10180i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201008
28100STARTER ASSY
main28100-0D040i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH,VN)200801-201001
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 1.0KW
12V 1.0KW
12V 1.0KW
12V 1.0KW
main28100-0T100i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC201008
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 0.8KW
12V 1.6KW
12V 0.8KW
12V 1.4KW
12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
28110ABEARING(FOR STARTER HOUSING)
28113LEVER, STARTER PINION DRIVE
main28113-70020i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201008
28120YOKE ASSY, STARTER
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-15190i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201008
28130CBEARING, STARTER FLANGE
28140HOLDER ASSY, STARTER BRUSH
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28163NUT OR COLLAR, PINION STOP, STARTER
28176SCREW, STARTER
28177PLATE(FOR STARTER ARMATURE)
28199APROTECTOR, DUST STARTER
main28199-46080i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201008
28255GEAR, PLANET
28256GEAR, STARTER INTERNAL
9006801013
main90068-01013
9006801014
main90068-01014
9006801015
main90068-01015
9006805007
main90068-05007
9006805008
main90068-05008
9006807006
main90068-07006
9006807007
main90068-07007
9009690030
main90096-90030
9009901538
main90099-01538
9009901539
main90099-01539
9009901542
main90099-01542
9009904373
main90099-04373
9009905178
main90099-05178
9009907124
main90099-07124
9009912405
main90099-12405
90119T0309
main90119-T0309
9017908204
main90179-08204
90182T0011
main90182-T0011
9161261065
main91612-61065
43 parts on this diagram · 9 diagrams in section
STARTER for Toyota COROLLA/ALTIS
This section contains 53 genuine Toyota parts for the STARTER system of the Toyota COROLLA/ALTIS. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, SHAFT SUB-ASSY, PLANET CARRIER, BUSH OR BEARING, PLANET CARRIER SHAFT.
