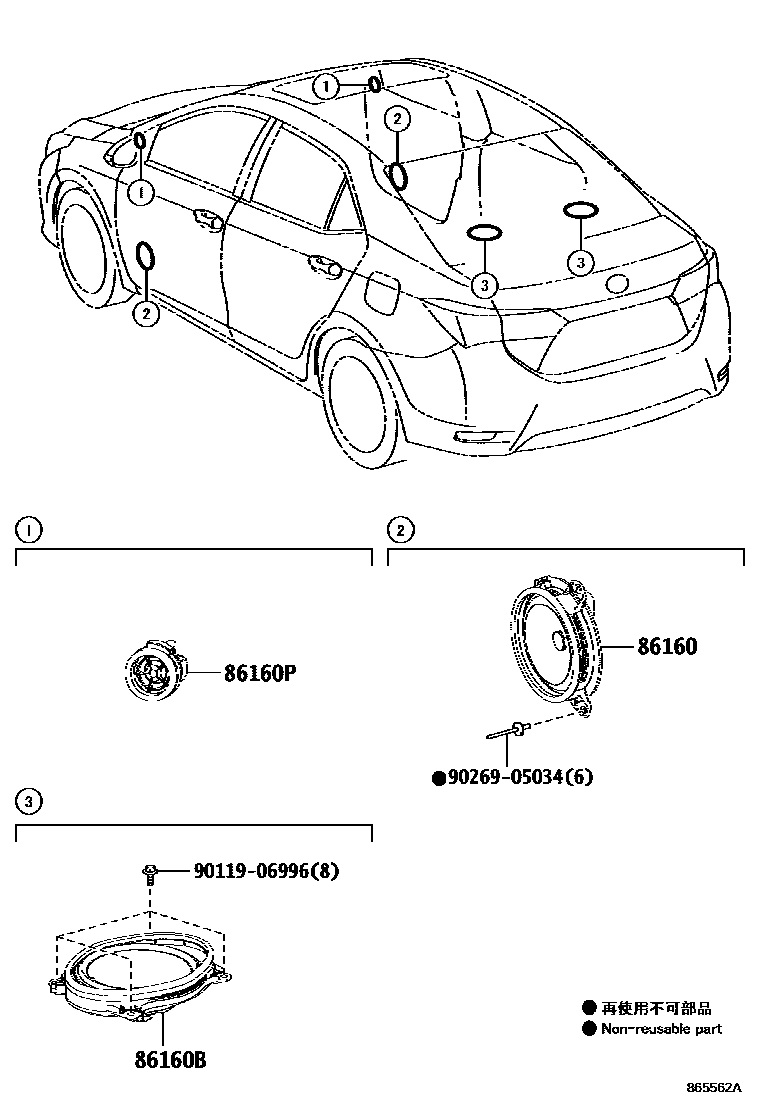

Toyota COROLLA/ALTIS — SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-0K220×2iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..GEN,MA,PHL,SGP,TH,VN201611-202201
86160BSPEAKER ASSY, REAR
main86160-02C80×2iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..GEN,MA,PHL,SGP,TH,VN201611-202201
86160PSPEAKER ASSY, FRONT NO.2
main86160-02B20×2iZRE172..G;ZRE173..4FC,6F;ZRE171,ZZE172..LHD..(4FC,6F)..GLI; ZRE172..TAIW..E201310-201609
SPORTY PACKAGE
main86160-02B30×2iZRE172..ARL,MA;ZRE172..CVT..(18G,18GS,18V);ZRE171,173..(16E,16G,16V,20G,20V,GLI)..(HTWC,HTWCF)..(GEN,MA,PHL,TH,VN)201611-202201
9011906996
main90119-06996
9026905034
main90269-05034
5 parts on this diagram · 1 diagram in section
SPEAKER for Toyota COROLLA/ALTIS
This section contains 5 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA/ALTIS. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
