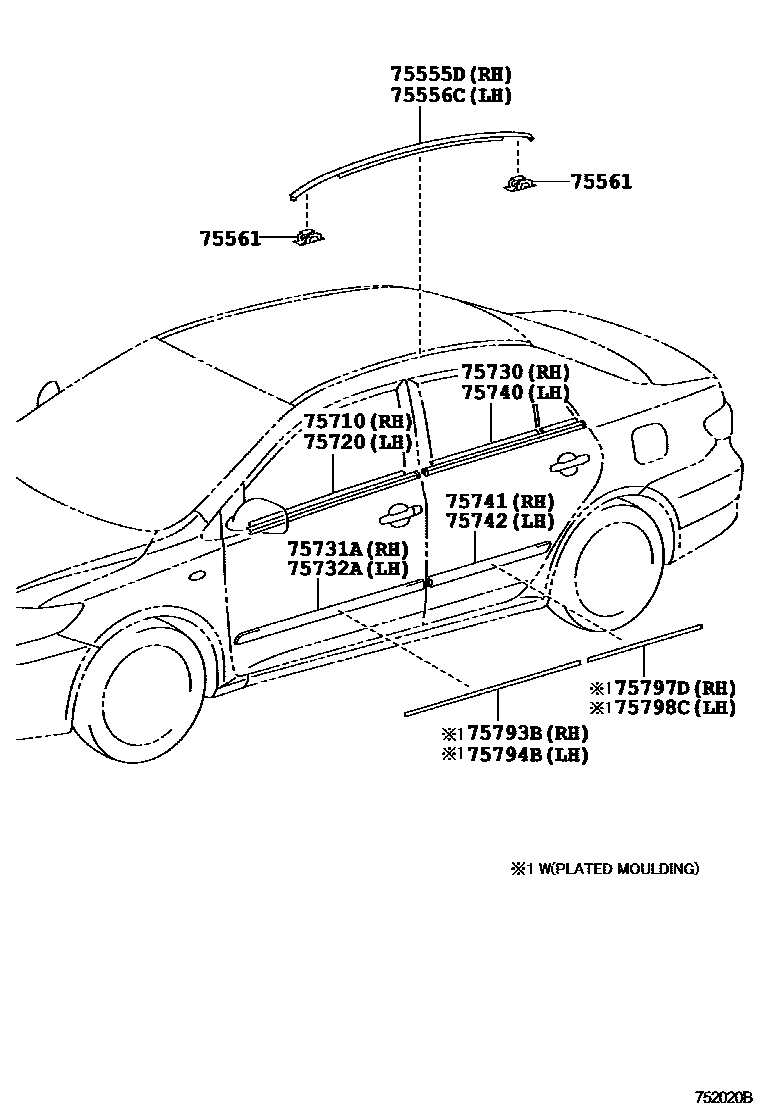

Toyota COROLLA/ALTIS — SIDE MOULDING
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-02150iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-02250iZRE141..6F..TH;CE140,NZE140,ZRE141,142,ZZE141..(16E,18J,20D,D,GLI,LIMO,XLI)..(IND,MA,PHL,PKN,TH)201008
75720MOULDING ASSY, FRONT DOOR BELT, LH
GRADE MARK : 1.6E OR 1.8E(TAIWAN)
75730MOULDING ASSY, REAR DOOR BELT, RH
GRADE MARK : 1.6E OR 1.8E(TAIWAN)
75731AMOULDING, FRONT DOOR, OUTSIDE RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
75732AMOULDING, FRONT DOOR, OUTSIDE LH
GRADE MARK-Z; PAINT REQ.
main75732-02919iZRE142..HTWCF;ZZE141..16G..TH;ZRE142..18G..(IDN,MA);ZRE143..CVFC..(IDN,MA,PHL,TAIW,TH);ZRE141,142..(16G,16V,18E,18J)..(IDN,PHL,TH)..HTWC201007-201311
PAINT REQ.
PAINT REQ.; PAINT REQ.,GRADE MARK : J
PAINT REQ.
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-02250iZRE141..6F..TH;CE140,NZE140,ZRE141,142,ZZE141..(16E,18J,20D,D,GLI,LIMO,XLI)..(IND,MA,PHL,PKN,TH)201008
75741MOULDING, REAR DOOR, OUTSIDE RH
PAINT REQ.
main75741-02917iZRE142..HTWCF;ZZE141..16G..TH;ZRE142..18G..(IDN,MA);ZRE143..CVFC..(IDN,MA,PHL,TAIW,TH);ZRE141,142..(16G,16V,18E,18J)..(IDN,PHL,TH)..HTWC201007-201311
PAINT REQ.
PAINT REQ.; PAINT REQ.,GRADE MARK : J
PAINT REQ.
75742MOULDING, REAR DOOR, OUTSIDE LH
GRADE MARK-Z; PAINT REQ.
PAINT REQ.
PAINT REQ.; PAINT REQ.,GRADE MARK : J
PAINT REQ.
75793BINSERT, FRONT DOOR OUTSIDE MOULDING, RH
75794BINSERT, FRONT DOOR OUTSIDE MOULDING, LH
75797DINSERT, REAR DOOR OUTSIDE MOULDING, RH
75798CINSERT, REAR DOOR OUTSIDE MOULDING, LH
main75798-02040iZRE143..CVFC;ZRE142..HTWCF;NDE140,ZRE141..16G,16V,E,G;ZRE142..(18G,18V,E,G)..(IDN,IND,MA,VN);ZRE142,ZZE141..(16G,18E,18J)..(IDN,TH)..HTWC201007
15 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota COROLLA/ALTIS
This section contains 15 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA/ALTIS. Key components include: MOULDING, ROOF DRIP SIDE FINISH, CENTER RH, MOULDING, ROOF DRIP SIDE FINISH, CENTER LH, CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1, MOULDING ASSY, FRONT DOOR BELT, RH, MOULDING ASSY, FRONT DOOR BELT, LH.
