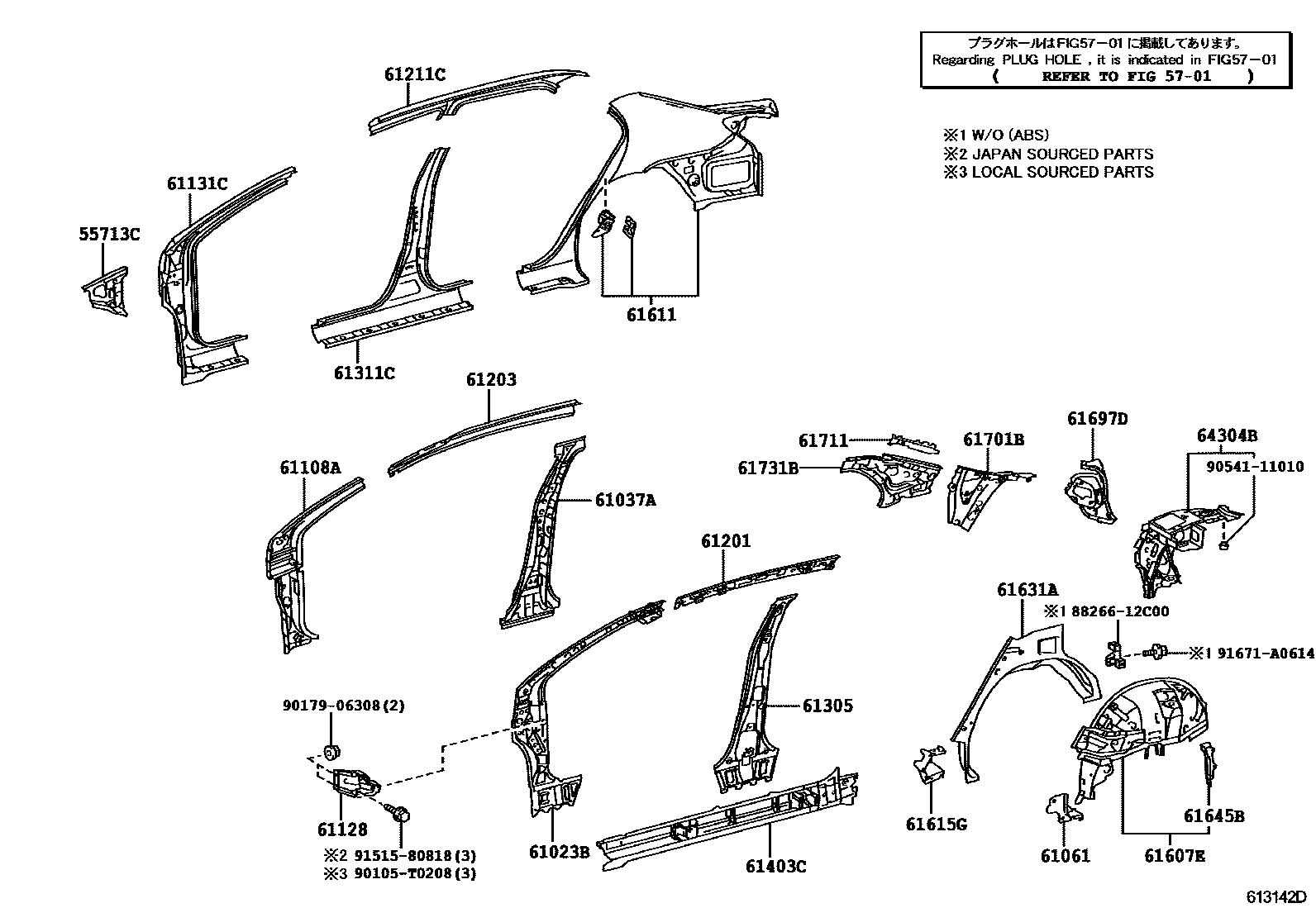

Toyota COROLLA/ALTIS — SIDE MEMBER
55713CPANEL, COWL TOP SIDE, RH
main55713-02100iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008
5701HOLE PLUG
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-02911iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH
main61061-12020iZRE142..HTWCF;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..16E,16G,16V,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,XLI201112
(J)
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
main61201-02190iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,E,G,LIMO)..(IDN,IND,MA,PHL,TH,VN)201104
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
(J)
61211CRAIL, ROOF SIDE, RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
main61305-02070iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-02180iZRE141..16E..PHL;ZRE142..(18E,18EL)..HTWCF;ZRE142,ZZE141..(16G,18J,XLI)..(GCC,IND,TAIW,TH);CE140,NZE140,ZRE141..RHD..(16E,16G,20DSA,D,GLI,N)201007
SEAT COVER MATERIAL-FABRIC
SEAT COVER MATERIAL-FABRIC
61611PANEL, QUARTER, RH
61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
main61615-12020iZRE142..HTWCF;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..16E,16G,16V,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,XLI201112
(J)
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61697DHOUSING, QUARTER PANEL END, RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
main61731-02210iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)201007-201306
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
8826612C00CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-12C00
90105T0208
main90105-T0208
9017906308
main90179-06308
9054111010
main90541-11010
9151580818
main91515-80818
91671A0614
main91671-A0614
30 parts on this diagram · 3 diagrams in section
SIDE MEMBER for Toyota COROLLA/ALTIS
This section contains 66 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA/ALTIS. Key components include: PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH, HOLE PLUG, PILLAR SUB-ASSY, FRONT BODY, INNER RH, PILLAR SUB-ASSY, FRONT BODY, INNER LH.
