Toyota COROLLA/ALTIS — SHORT BLOCK ASSEMBLY

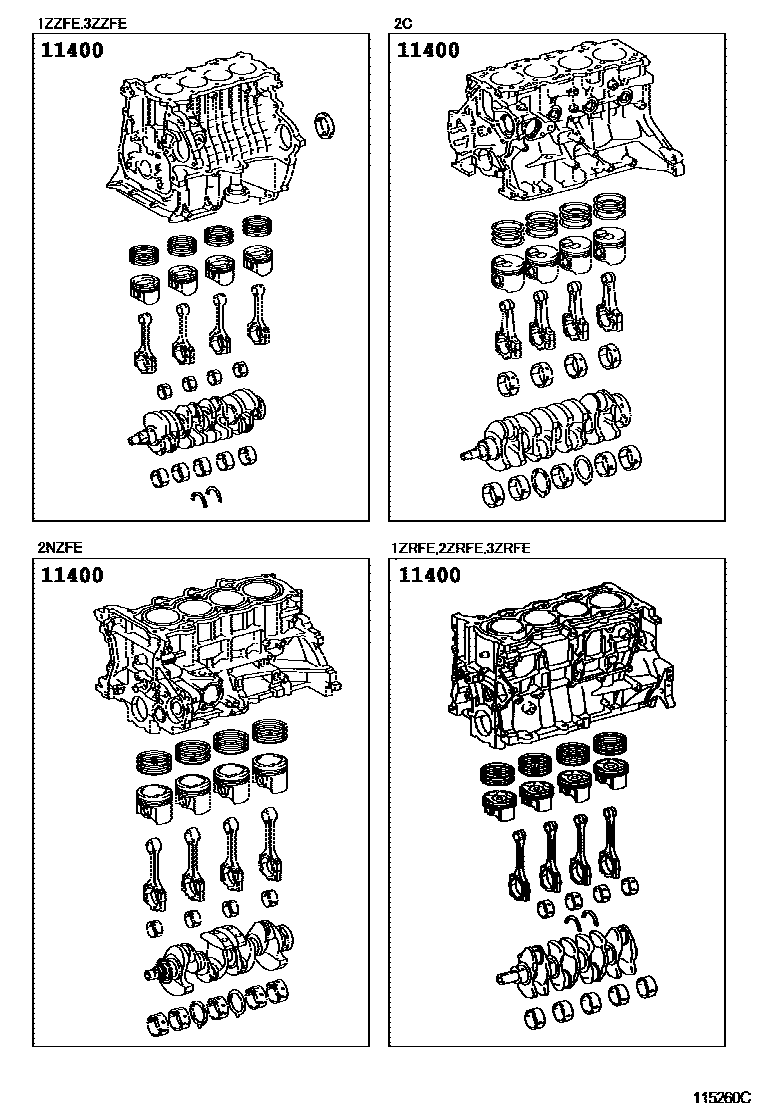

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0D072i200712-200808

main11400-0D073i200808-201007

main11400-0D230i200712-200808

main11400-0D231i200808-201007

main11400-0D250i200801-200808

main11400-0D251i201008-201311

main11400-0D260i200801-200808

main11400-0D261i200808-201008

main11400-0D280i200912-201004

SINGAPORE SPEC

main11400-0T130i201008-201311

main11400-0T140i201008-201211

main11400-0T150i201008-201311

main11400-0T160i201007-201311

*264

main11400-0T170i201008-201311

main11400-0T180i201007-201407

main11400-0T190i201104-201406

main11400-0T230i201211-201311

main11400-21150i201104-201206

main11400-22171i201004-201010

main11400-22531i200808

main11400-33140i201006-201105

main11400-33141i201205-201212

main11400-33180i201212-201312

main11400-37071i201007-201311

*119

main11400-37081i201007-201407

*119

main11400-37090i200811-201010

main11400-37160i200905-201008

main11400-64650i201104-201406

1 parts on this diagram · 2 diagrams in section

SHORT BLOCK ASSEMBLY for Toyota COROLLA/ALTIS

This section contains 1 genuine Toyota parts for the SHORT BLOCK ASSEMBLY system of the Toyota COROLLA/ALTIS. Key components include: BLOCK ASSY, SHORT.
