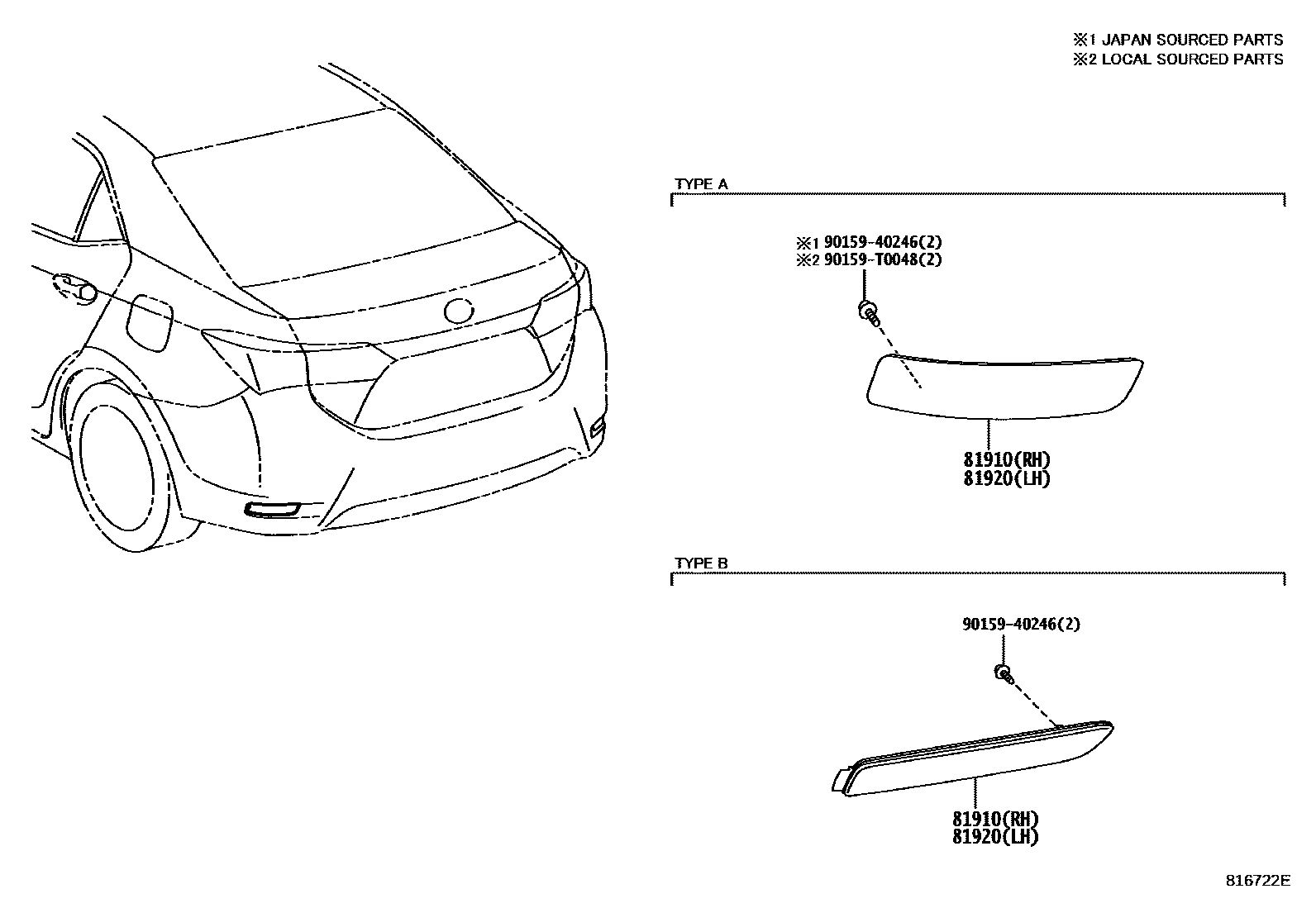

Toyota COROLLA/ALTIS — REFLEX REFLECTOR
81910REFLECTOR ASSY, REFLEX, RH
TYPE B:REFER ILLUST.
main81910-02170iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-201610
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
81920REFLECTOR ASSY, REFLEX, LH
TYPE B:REFER ILLUST.
main81920-02110iZRE172..18E..VN;ZRE172..ARL,IDN,MA,PKN,TH;NZE170,ZRE171,173..GEN,MA,PHL,PKN,SGP,TH,VN201611-202012
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
9015940246
main90159-40246
90159T0048
main90159-T0048
4 parts on this diagram · 1 diagram in section
REFLEX REFLECTOR for Toyota COROLLA/ALTIS
This section contains 4 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota COROLLA/ALTIS. Key components include: REFLECTOR ASSY, REFLEX, RH, REFLECTOR ASSY, REFLEX, LH.
