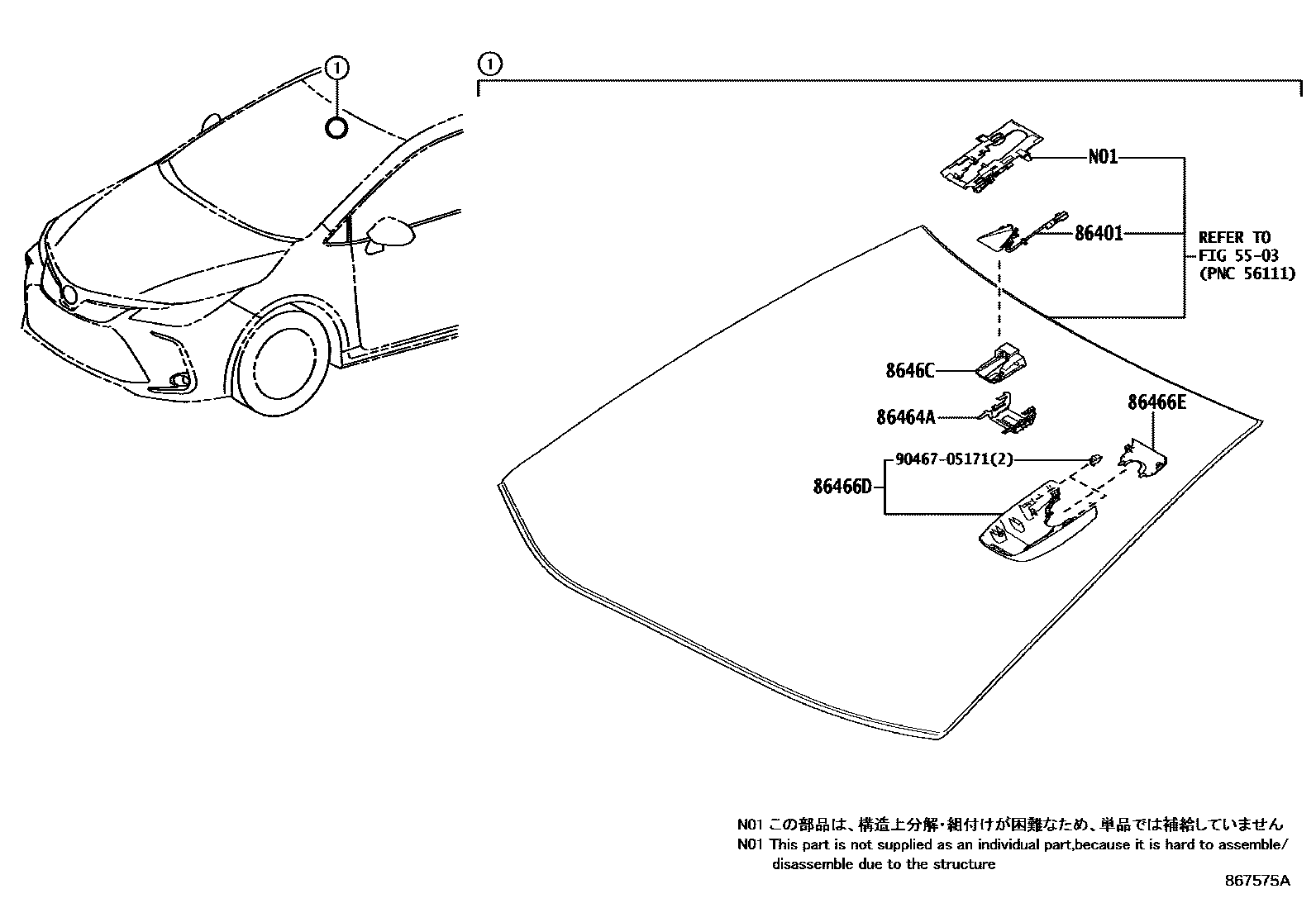

Toyota COROLLA/ALTIS — PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-12010iZRE211..TAIW;ZWE211..V..(IDN,MA,SGP,TAIW,TH)201904-202010

LOW GRADE PACKAGE

main86401-12011supersedes 86401-12011iZRE211..TAIW202304-202405

86464ALATCH, FORWARD RECOGNITION

main86464-26010supersedes 86464-26010iZWE211..MA201904-202112

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-12030supersedes 86466-12030iZWE211..MA201904-202112

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-12040supersedes 86466-12040iZWE211..MA201904-202112

8646CCAMERA, FORWARD RECOGNITION

main8646C-12010iZRE211,ZWE211..TAIW201904-202201

LOW GRADE PACKAGE

main8646C-12020iZRE210,ZWE211..V..PHL201908-202201

BRUNEI SPEC& UP GRADE PACKAGE

main8646C-12090iZRE211..TAIW202304-202405

main8646C-12092iZRE211..E..MA202411

TRINIDAD & TOBAGO,BARBADOSE SPEC

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
