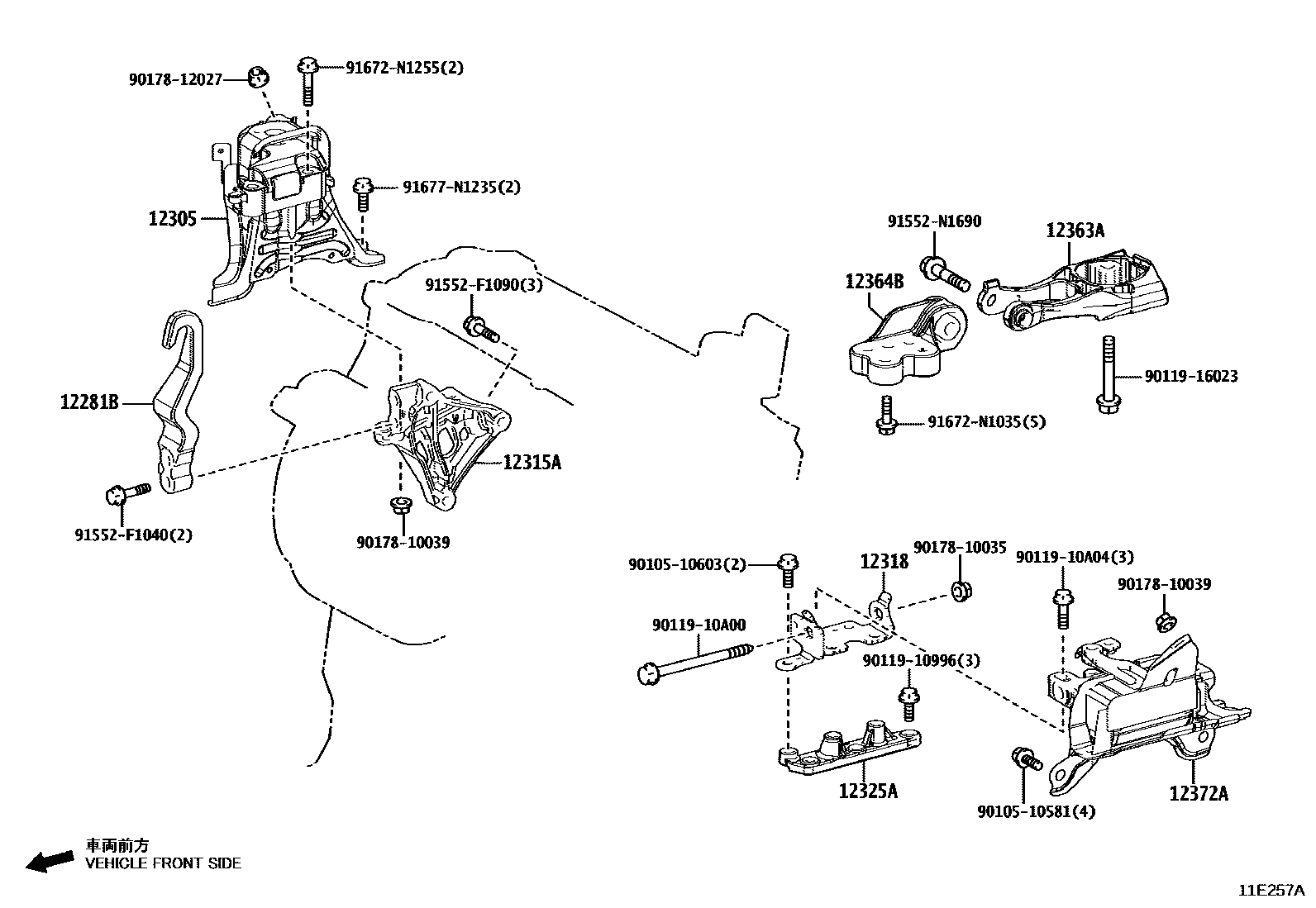

Toyota COROLLA/ALTIS — MOUNTING
12281BHANGER, ENGINE, NO.1
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
main12305-0T381i1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
main12315-37060i2ZRFXE..ZWE211..(G,V)..TH;2ZRFXE..ZWE211..GEN,IDN,PHL,SGP,VN;1ZR#,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306
12318STAY, ENGINE MOUNTING, LH
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12364BROD, ENGINE MOVING CONTROL, NO.2
main12364-0T100i2ZRFE..ZRE211..D,E,X;2ZRFXE..ZWE211..GEN,IDN,SGP,VN;2ZRFXE..ZWE211..(G,X)..(PHL,TH);1ZR#,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,SGP,TH,VN202306
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510581
main90105-10581
9010510603
main90105-10603
9011910996
main90119-10996
9011910A00
main90119-10A00
9011910A04
main90119-10A04
9011916023
main90119-16023
9017810035
main90178-10035
9017810039
main90178-10039
9017812027
main90178-12027
91552F1040
main91552-F1040
91552F1090
main91552-F1090
91552N1690
main91552-N1690
91672N1035
main91672-N1035
91672N1255
main91672-N1255
91677N1235
main91677-N1235
23 parts on this diagram · 7 diagrams in section
MOUNTING for Toyota COROLLA/ALTIS
This section contains 59 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA/ALTIS. Key components include: HANGER, ENGINE, NO.1, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH, INSULATOR SUB-ASSY, DRIVE SHAFT HEAT.
