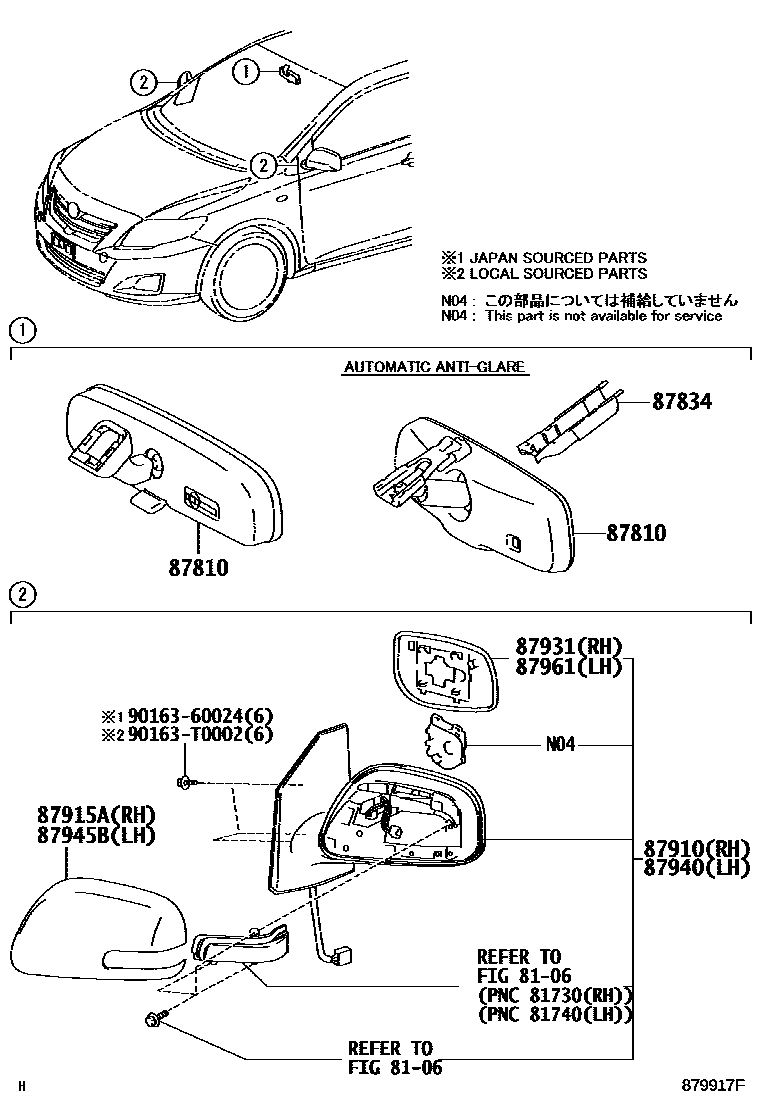

Toyota COROLLA/ALTIS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
DONNELLY
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,GRADE MARK : J
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)
87915ACOVER, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)
87931OUTER MIRROR, RH
main87931-0D290iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,GRADE MARK : J
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)
87945BCOVER, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)
main87945-06903iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;NDE140,ZRE141,ZZE141..16E,16G,16V,E,G;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC201008
87961MIRROR OUTER, LH
9016360024
main90163-60024
90163T0002
main90163-T0002
11 parts on this diagram · 4 diagrams in section
MIRROR for Toyota COROLLA/ALTIS
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota COROLLA/ALTIS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
