Toyota COROLLA/ALTIS — METER

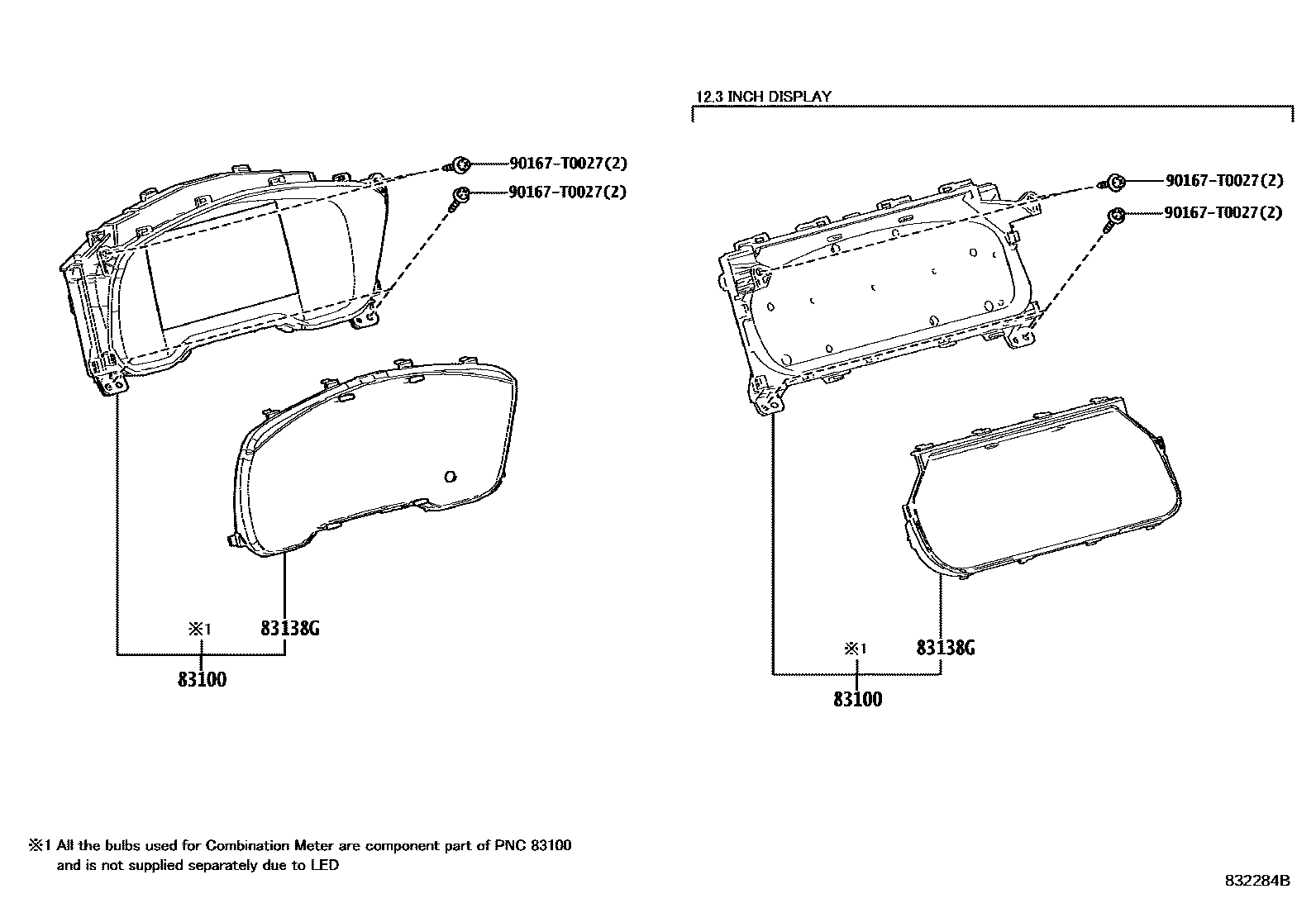

Parts diagram
83100METER ASSY, COMBINATION
main83800-F2710i201904-202007
DENSO
main83800-F2V81i202405-202407
DENSO
main83800-F2V82i202408
DENSO
main83800-F2Z50i201908-202012
YAZAKI
main83800-FE650i201908-202012
DENSO; DENSO, UP GRADE PACKAGE; DENSO, UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH; DENSO,BRUNEI SPEC& SPORTY PACKAGE&TOYOTA SAFETY SENSE-WITH; DENSO,BRUNEI SPEC& UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH
main83800-FE670i201908-202012
DENSO
main83800-FE690i201908-202012
DENSO
main83800-FE710i201904-202007
YAZAKI
main83800-FE730i201904-202007
DENSO
main83800-FE740i201904-202007
DENSO
main83800-FE860i201908-202012
YAZAKI
main83800-FE870i201908-202101
DENSO
main83800-FEA00i202306-202411
DENSO
main83800-FEA02i202411
DENSO
main83800-FEE70i201908-202012
DENSO
main83800-FES10i202007-202107
DENSO
main83800-FES11i202108-202304
DENSO
main83800-FES20i202007-202107
DENSO
main83800-FES21i202305-202411
DENSO
main83800-FES23i202411
DENSO
main83800-FES40i202007-202107
DENSO
main83800-FES41i202305-202411
DENSO; DENSO,SAUDI ARABIA SPEC&UP GRADE PACKAGE
main83800-FES43supersedes 83800-FE760i202411
DENSO; DENSO,SAUDI ARABIA SPEC&UP GRADE PACKAGE
main83800-FES60i202007-202107
DENSO
main83800-FES61i202108-202305
DENSO
main83800-FES63i202411
DENSO
main83800-FET50i202007-202305
YAZAKI
main83800-FET70i202101-202306
DENSO
main83800-FET90i202101-202112
DENSO
main83800-FEU00supersedes 83800-FEU30i202201-202306
DENSO
main83800-FEU10i202101-202306
DENSO; DENSO, UP GRADE PACKAGE; DENSO, UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH; DENSO,BRUNEI SPEC& SPORTY PACKAGE&TOYOTA SAFETY SENSE-WITH; DENSO,BRUNEI SPEC& UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH
main83800-FEU20i202306-202411
DENSO
main83800-FEU22i202411
DENSO
main83800-FEU30i202101-202306
DENSO
main83800-FEU32i202411
DENSO
main83800-FEU40i202101-202112
YAZAKI
main83800-FEU50i202101-202306
YAZAKI
main83A00-02090i202304-202405
DENSO
main83A00-02092i202405
DENSO
main83A00-02110i202304-202405
DENSO
main83A00-02112i202405
DENSO
main83A00-02170i202306-202411
DENSO
main83A00-02172i202411
DENSO
main83A00-02200i202306-202307
DENSO
main83A00-02201i202308-202406
DENSO
main83A00-02202i202411
DENSO
main83A00-02210i202306-202406
DENSO; DENSO,UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH; DENSO,X PACKAGE&TOYOTA SAFETY SENSE-WITH
main83A00-02211i202411
DENSO; DENSO,UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH
main83A00-02220i202306-202406
DENSO
main83A00-02221i202411
DENSO
main83A00-02290i202305
YAZAKI
main83A00-02V50i202306
YAZAKI
main83A00-02X90i202406-202411
DENSO
main83A00-02Y00i202406-202411
DENSO; DENSO,UP GRADE PACKAGE&TOYOTA SAFETY SENSE-WITH
main83A00-02Y10i202406-202411
DENSO
main83800-FE630i201908-202012
DENSO,BRUNEI SPEC&TOYOTA SAFETY SENSE-WITH
main83800-FE660supersedes 83A00-02250i201904-202007
DENSO, SPORTY PACKAGE; DENSO, UP GRADE PACKAGE
main83800-FE680i201908-202012
DENSO, SPORTY PACKAGE
main83800-FE700supersedes 83800-FET30i201904-202007
YAZAKI,QATAR SPEC& LOW GRADE PACKAGE; YAZAKI,SAUDI ARABIA SPEC& LOW GRADE PACKAGE
main83800-FE750supersedes 83800-FE760i201904-202007
DENSO, UP GRADE PACKAGE
main83800-FE790supersedes 83800-FES53i201904-202008
DENSO, UP GRADE PACKAGE
main83800-FE800supersedes 83800-FES53i201904-202008
DENSO, MIDDLE GRADE PACKAGE
main83800-FE820supersedes 83A00-02233i201904-202006
DENSO, LOW GRADE PACKAGE
main83800-FEC80supersedes 83800-FEU30i201908-202012
DENSO, LOW GRADE PACKAGE
main83800-FES30supersedes 83800-FE760i202007-202107
DENSO, UP GRADE PACKAGE
main83800-FES31supersedes 83800-FE760i202305-202411
DENSO,UP GRADE PACKAGE
main83800-FES33supersedes 83800-FE760i202411
DENSO,UP GRADE PACKAGE
main83800-FES70supersedes 83A00-02250i202007-202107
DENSO, MIDDLE GRADE PACKAGE; DENSO, SPORTY PACKAGE; DENSO, UP GRADE PACKAGE; DENSO,X PACKAGE
main83800-FES71supersedes 83A00-02250i202108-202304
DENSO, MIDDLE GRADE PACKAGE; DENSO,X PACKAGE
main83800-FET00supersedes 83A00-02233i202006-202107
DENSO, LOW GRADE PACKAGE
main83800-FET01supersedes 83A00-02233i202108-202304
DENSO, LOW GRADE PACKAGE
main83800-FET10supersedes 83800-FES53i202008-202107
DENSO, UP GRADE PACKAGE
main83800-FET11supersedes 83800-FES53i202108-202305
DENSO, UP GRADE PACKAGE
main83800-FET20supersedes 83800-FES53i202008-202107
DENSO, MIDDLE GRADE PACKAGE
main83800-FET21supersedes 83800-FES53i202108-202305
DENSO, MIDDLE GRADE PACKAGE
main83800-FET40supersedes 83800-FET30i202007-202305
YAZAKI,QATAR SPEC& LOW GRADE PACKAGE; YAZAKI,SAUDI ARABIA SPEC& LOW GRADE PACKAGE
main83800-FET60i202101-202306
DENSO,BRUNEI SPEC&TOYOTA SAFETY SENSE-WITH
main83800-FEU12i202411
DENSO,BRUNEI SPEC&TOYOTA SAFETY SENSE-WITH
main83A00-02240supersedes 83A00-02233i202304-202307
DENSO,LOW GRADE PACKAGE
main83A00-02241supersedes 83A00-02233i202308-202404
DENSO,LOW GRADE PACKAGE
main83A00-02242supersedes 83A00-02233i202405-202407
DENSO,LOW GRADE PACKAGE
main83A00-02243supersedes 83A00-02233i202408
DENSO,LOW GRADE PACKAGE
main83A00-02260supersedes 83800-FES53i202305-202307
DENSO,UP GRADE PACKAGE
main83A00-02261supersedes 83800-FES53i202308-202411
DENSO,UP GRADE PACKAGE
main83A00-02263supersedes 83800-FES53i202411
DENSO,UP GRADE PACKAGE
main83A00-02300i202305
YAZAKI; YAZAKI,QATAR SPEC&UP GRADE PACKAGE
main83A00-02310supersedes 83A00-02300i202305
YAZAKI,QATAR SPEC
83138GGLASS, COMBINATION METER
main83852-02E30i202308-202406
main83852-FE630i201908-202112
main83852-FE660i201904-202112
main83852-FE700i201904-202305
main83852-FE730i201904-202304
main83852-FE860i201908-202112
90167T0027
main90167-T0027

3 parts on this diagram · 3 diagrams in section

METER for Toyota COROLLA/ALTIS

This section contains 7 genuine Toyota parts for the METER system of the Toyota COROLLA/ALTIS. Key components include: METER ASSY, COMBINATION, MIRROR SUB-ASSY, METER, GLASS, COMBINATION METER, PLATE, COMBINATION METER MIRROR, NO.1.
