Toyota COROLLA/ALTIS — INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
DK.GRAY,TRIM1#
GRAY,TRIM1#
main55302-02310-B0iZRE142,143..(18E,18G,20G,20V)..(MA,TH); ZRE142,143..IDN;ZRE141,142..RHD..(16E,16G,18EL)201008-201311
DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
DK.GRAY,TRIM1#
GREGE,TRIM4#
GREGE,TRIM4#
DK.GRAY,TRIM12; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,DK.GRAY,TRIM12
ASH BROWN,TRIM4#; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,ASH BROWN,TRIM4#
GREGE,TRIM4#; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,GREGE,TRIM4#
GRADE MARK : 1.6E OR 1.8E(TAIWAN),DK.GRAY,TRIM1#
DK.GRAY,TRIM12; GRADE MARK : 1.6E OR 1.8E(TAIWAN)&INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,DK.GRAY,TRIM12; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,DK.GRAY,TRIM12
GRADE MARK : 1.6E OR 1.8E(TAIWAN)&INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,GRAY,TRIM11; GRAY,TRIM11; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,GRAY,TRIM11
ASH BROWN,TRIM4#; GRADE MARK : 1.6E OR 1.8E(TAIWAN)&INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,ASHBROWN,TRIM4#; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,ASH BROWN,TRIM4#
DK.GRAY,TRIM1#; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,DK.GRAY,TRIM1#
DK.GRAY,TRIM1#; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,DK.GRAY,TRIM1#
ASH BROWN,TRIM4#; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,ASH BROWN,TRIM4#
AIR CONDITIONER-AUTO SINGLE MODE,GRAY,TRIM1#
AIR CONDITIONER-AUTO SINGLE MODE,DK.GRAY,TRIM1#
AIR CONDITIONER-AUTO SINGLE MODE,GREGE,TRIM4#
AIR CONDITIONER-AUTO SINGLE MODE,GREGE,TRIM4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
GRAY,TRIM1#; GRAY,TRIM11
DK.GRAY,TRIM1#; DK.GRAY,TRIM12
GREGE,TRIM4#
GRAY,TRIM1#
DK.GRAY,TRIM1#
main55303-02300-E0iZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V)200801-201008
GREGE,TRIM4#
GREGE,TRIM4#
GREGE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-02330iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
main55317-02200-B0iZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW; ZZE14#..LHD..(16E,16G,GLI,XLI)200712-201007
GRAY,TRIM1#; GRAY,TRIM11
DK.GRAY,TRIM12
GREGE,TRIM4#
GRAY,TRIM1#
DK.GRAY,TRIM1#
main55317-02210-E0iZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V)200801-201008
GREGE,TRIM4#
GREGE,TRIM4#
55318CPANEL, INSTRUMENT SIDE, LH
GRAY,TRIM1#; GRAY,TRIM11
DK.GRAY,TRIM12
GREGE,TRIM4#
GRAY,TRIM1#
DK.GRAY,TRIM1#
main55318-02070-E0iZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V)200801-201008
GREGE,TRIM4#
GREGE,TRIM4#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-02530iZRE142..HTWCF;ZRE141..6F..TH;ZRE142..18G..(IDN,MA);ZRE14#,ZZE141..(16E,16G,18E,18J,20G,20V,LIMO)..(IDN,MA,TH)..HTWC201008-201311
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55355CUSHION, INSTRUMENT PANEL, NO.1
main55355-02160iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW); ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW; ZZE142..18E..TAIW200712-201007
GRADE MARK : 1.6E OR 1.8E(TAIWAN)&INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55416ARETAINER, METER HOOD, NO.1
main55416-02130iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008
55417CBRACKET, INSTRUMENT PAD, NO.3
55511APLATE, INSTRUMENT PANEL, NAME
main55471-02020-B0iZRE141..16G..PHL;ZRE141,ZZE141..(16E,16J,LIMO)..(PHL,TH); ZRE141..16G..TH; ZZE141..16G201008-201211
DK.GRAY,TRIM1#; DK.GRAY,TRIM4#; SRS AIR BAG-WITHOUT,DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
55961NOZZLE, SIDE DEFROSTER, NO.1
DK.GRAY,TRIM4#
MD.GRAY,TRIM1#
main55961-02090-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW); ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW; ZZE142..18E..TAIW200712-201007
ASH BROWN,TRIM4#; GRADE MARK : 1.6E OR 1.8E(TAIWAN)&INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,ASHBROWN,TRIM4#; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,ASH BROWN,TRIM4#
main55961-02100-B0iCE140,NZE140,ZRE142,143..IDN,PKN;ZRE141,142,ZZE141..RHD..(16E,16G,18EL,D,N)201008-201406
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
DK.GRAY,TRIM4#
MD.GRAY,TRIM1#
main55962-02050-E0iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW); ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW; ZZE142..18E..TAIW200712-201007
ASH BROWN,TRIM4#; GRADE MARK : 1.6E OR 1.8E(TAIWAN)&INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,ASHBROWN,TRIM4#; INSTRUMENT PANEL-UPPER SAFETY PAD:SOFT TYPE,ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
AIR CONDITIONER-AUTO SINGLE MODE
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202WIRING & CLAMP
8416AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9010508120
main90105-08120
90105T0041
main90105-T0041
9015960431
main90159-60431
9015960546
main90159-60546
9015970004
main90159-70004
90159T0014
main90159-T0014
9016750046
main90167-50046
90167T0011
main90167-T0011
90168T0001
main90168-T0001
90178T0019
main90178-T0019
9018305094
main90183-05094
9018306025
main90183-06025
9046710201
main90467-10201
9046712080
main90467-12080
9167380616
main91673-80616
9356855014
main93568-55014
9415180800
main94151-80800

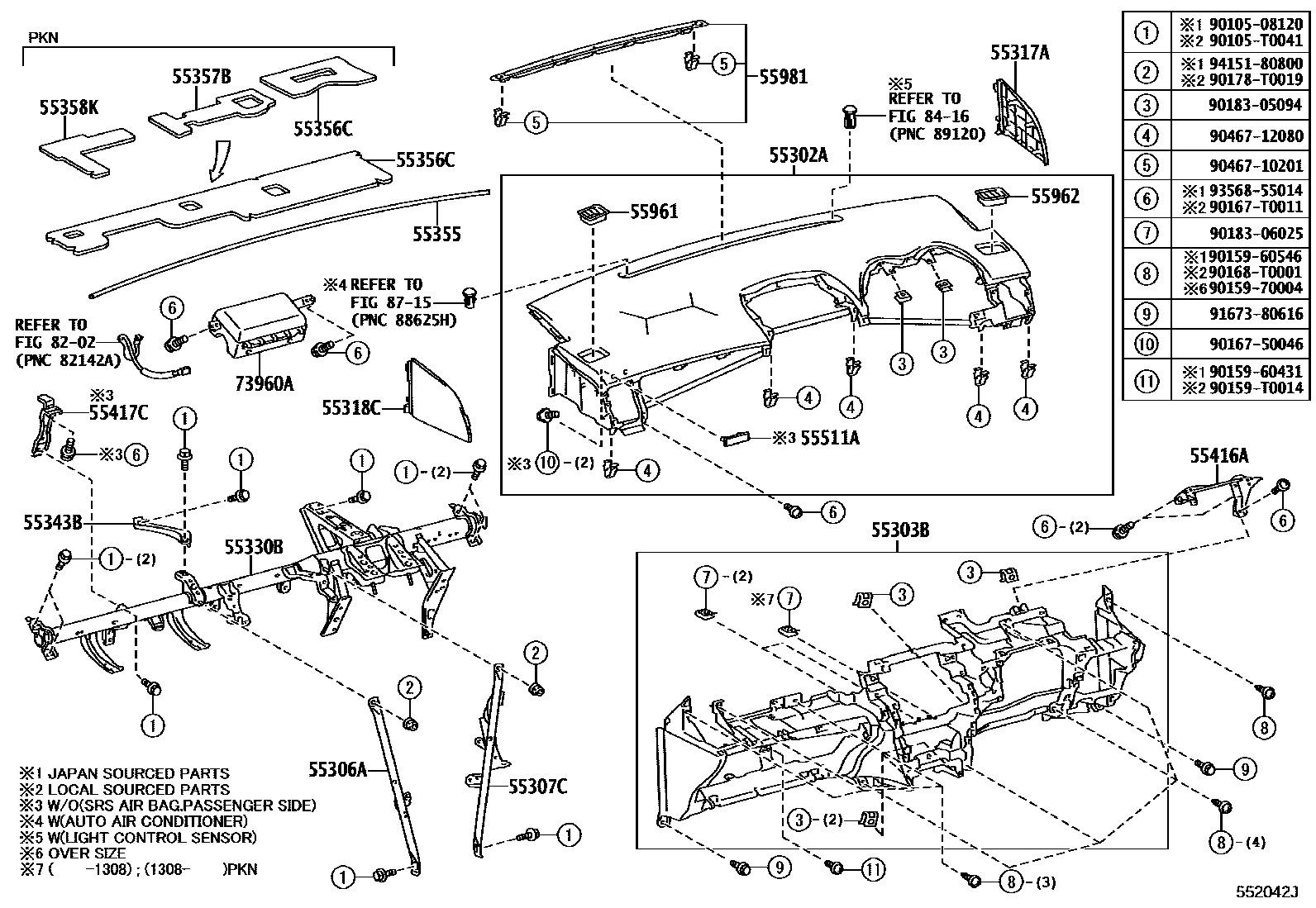

39 parts on this diagram · 10 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota COROLLA/ALTIS
This section contains 91 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota COROLLA/ALTIS. Key components include: DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1, PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER, STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, PANEL SUB-ASSY, INSTRUMENT, LOWER.
