Toyota COROLLA/ALTIS — INDICATOR

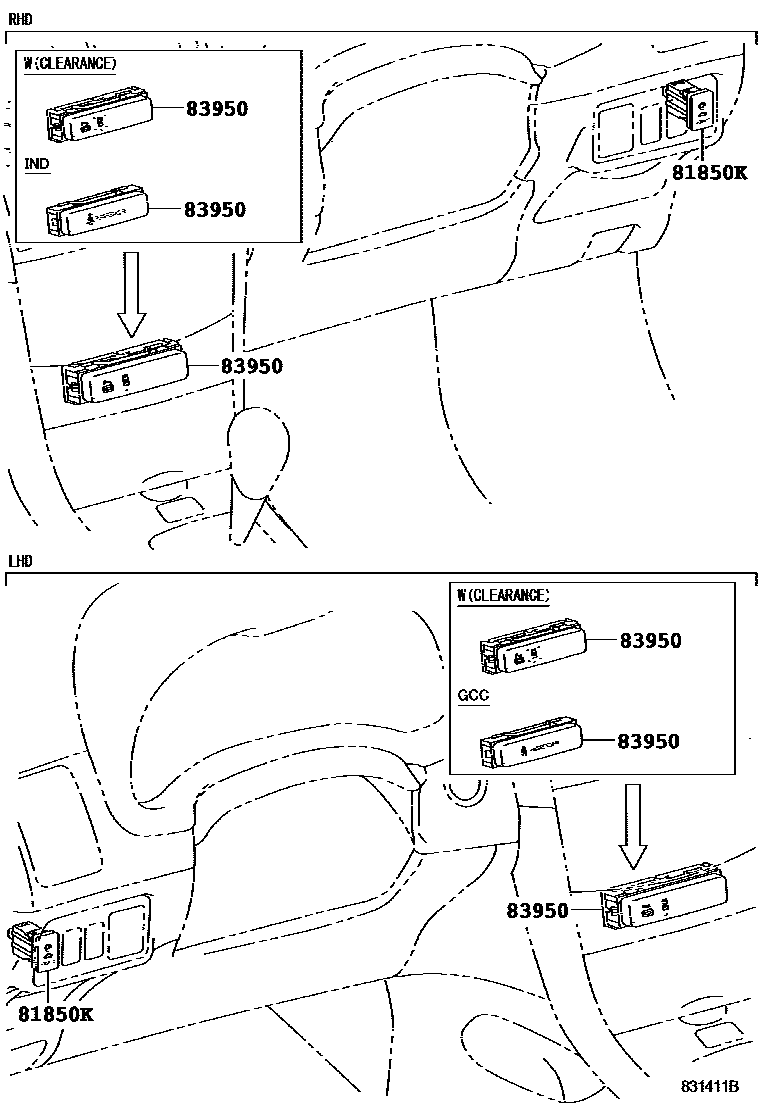

81850KLAMP ASSY, SECURITY INDICATOR

main81850-12270iZRE142..HTWCF;ZRE142..18G..(IDN,MA,VN);ZRE141..4FC..(16E,16G,16V,XLI);ZRE141,143..(6F,CVFC)..(16G,20G,20V,G);ZRE142,ZZE141..(16G,18E,18J,GLI,XLI)..(GCC,IDN,TAIW,TH)201007

main81850-12280iZRE142..18J..IND201301-201312

83950LAMP ASSY, TELLTALE

main83950-02110iZRE143..IDN,MA,PHL;ZRE141,142..ATM..(16E,16V,18G)..(MA,PHL)201008-201311

main83950-02120iZRE143..CVFC..VN;ZRE142..18G..(IDN,VN)201008

main83950-02130iZRE143..(20G,20V)..TAIW200712-201007

main83950-02140iZRE142,143..(18E,20G,G)..TAIW201007-201310

main83950-02150iNDE140;ZRE142..(18G,18J)..IND201105-201312

main83950-02160iZZE14#..GCC200901-201007

main83950-02180iZRE142..18V,E,G201105-201312

2 parts on this diagram · 1 diagram in section
