Toyota COROLLA/ALTIS — HEATING & AIR CONDITIONING - COMPRESSOR

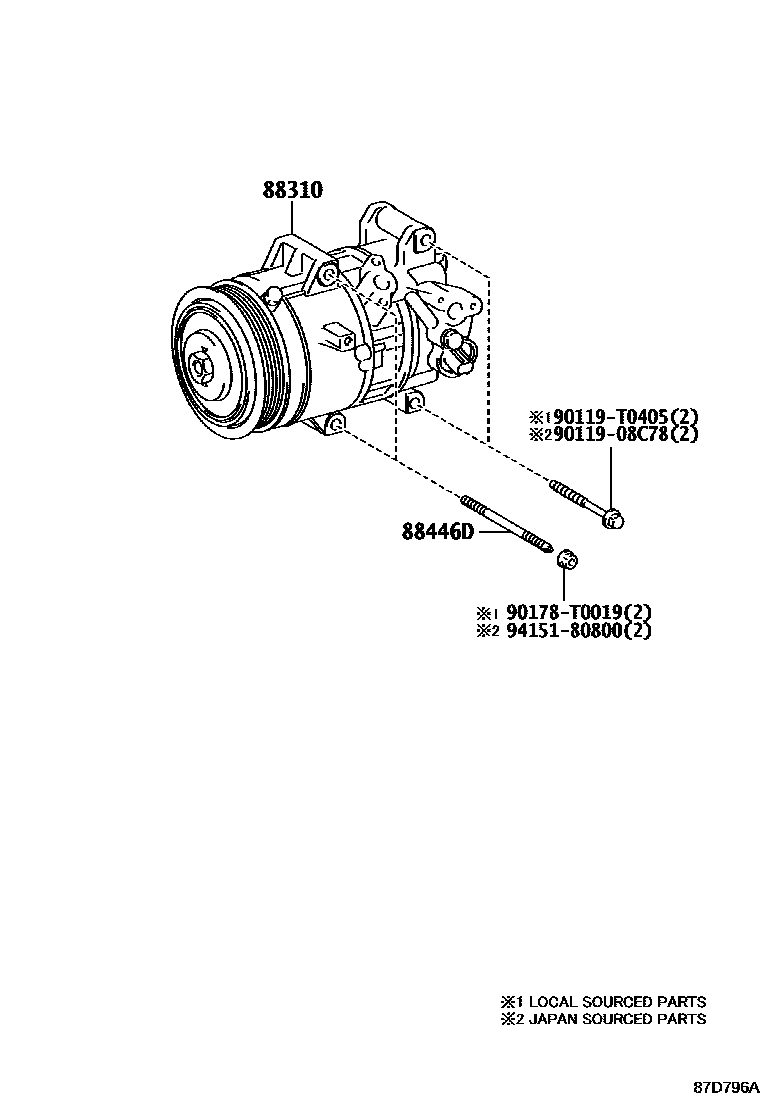

Parts diagram

88310COMPRESSOR ASSY, W/PULLEY

main88310-02671i201310-201409

main88310-02890i201312-201407

main88310-02891i201408-201512

main88310-02892i201611-202201

main88310-02A00i201310-201409

main88310-02A01i201410-201604

main88310-02A02i201610-201903

main88310-02A10i201405-201409

main88310-02A11i201410-201607

main88310-02A12i201703-201906

main88310-02A30i201707-201911

main88310-02A40i201407-201409

main88310-02A41i201410-201607

main88310-02A42i201707

main88310-12B50i201703-201906

88446DBOLT, COOLER

main88446-02090×2i201312-201610

main88446-02100×2i201310-201409

main88446-02110×2i201703-201906

main88446-42030×2i201707-202109

9011908C78

main90119-08C78

90119T0405

main90119-T0405

90178T0019

main90178-T0019

9415180800

main94151-80800

6 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA/ALTIS

This section contains 7 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA/ALTIS. Key components include: COMPRESSOR ASSY, W/PULLEY, BOLT, COOLER.
