Toyota COROLLA/ALTIS — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
(L)
main22271-0T060i1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH,VN201811-202201
(L)
23250INJECTOR ASSY, FUEL
(L)
(L)
main23209-39146×4i1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH201310-201610
(J)
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23291INSULATOR, INJECTOR VIBRATION
(L),T/P B:REF.ILLUST
(J),T/P B:REF.ILLUST
TYPE A:REFER ILLUST.
main23291-28020×4i2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM201610
(J),T/P B:REF.ILLUST
23807PIPE SUB-ASSY, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
BLACK X NATURAL
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
main23901-0T150i2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZR#,2ZRFBE..ZRE171,172..CVT,MTM;2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW)201610
7701FUEL TANK & TUBE
9012606031
main90126-06031
9155180650
main91551-80650
9155180840
main91551-80840
9167180614
main91671-80614
9415180600
main94151-80600

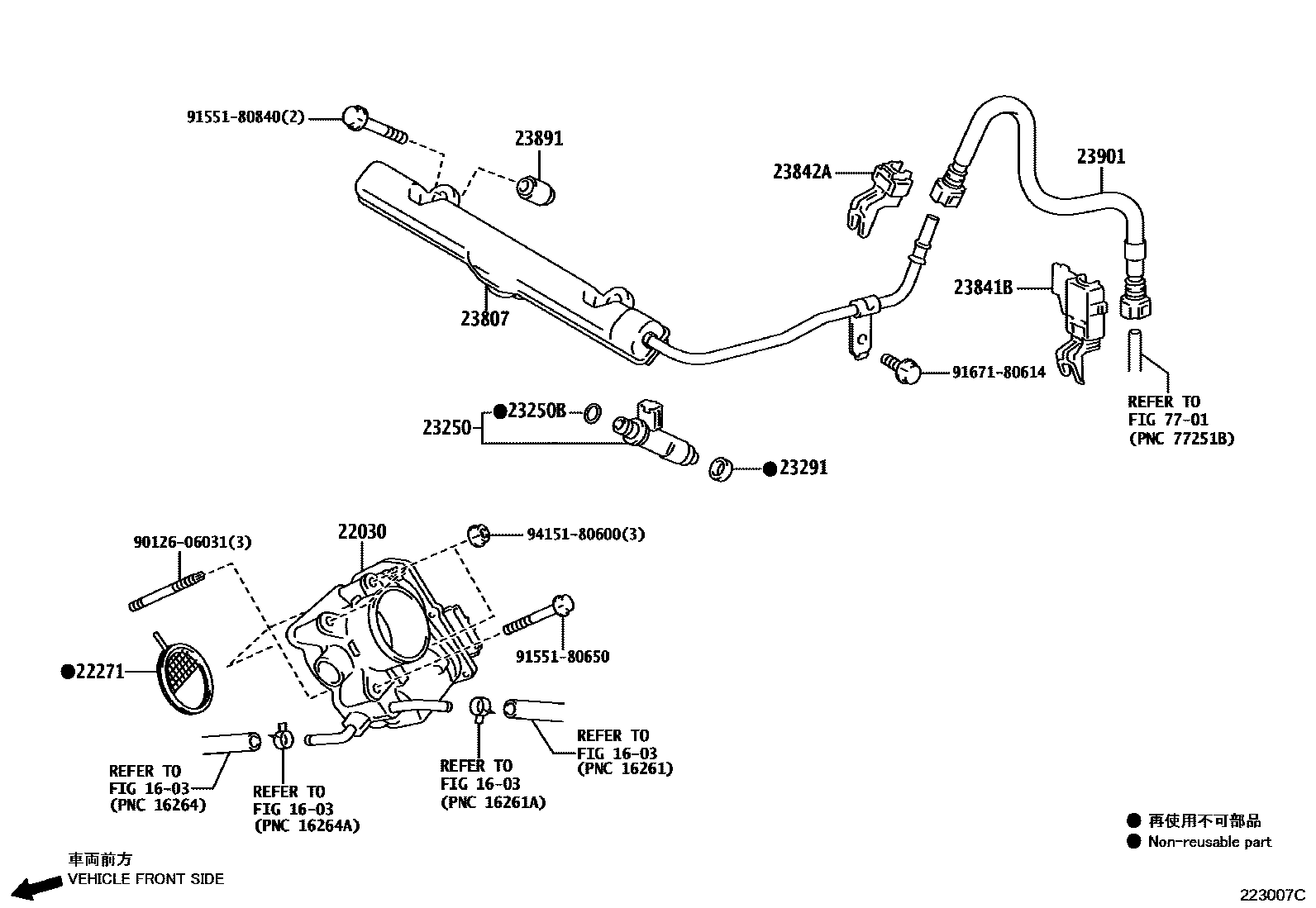

17 parts on this diagram · 4 diagrams in section
FUEL INJECTION SYSTEM for Toyota COROLLA/ALTIS
This section contains 40 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota COROLLA/ALTIS. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY, CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT.
