Toyota COROLLA/ALTIS — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
(L)
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
main23291-0T010×4i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH,VN)..HTWC201203
(L),T/P B:REF.ILLUST
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23807PIPE SUB-ASSY, FUEL DELIVERY
main23807-22060i1ZZFE..ZZE142..(18E,18V)..(IDN,PHL,TH);1ZZFE,3ZZFE..ZZE14#..(16E,16G,16J,18G,LIMO)..TH200801-201008
main23814-37051i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..16E,16G,16V,20G,20V,D,G,N,XLI;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC201108
23807VSPACER, NO.1(FOR DELIVERY PIPE)
main23891-37010×2i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)201007
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
NO.1
NO.2
NO.1
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
9012606031
main90126-06031
9155180650
main91551-80650
9155180840
main91551-80840
9167180614
main91671-80614
9415180600
main94151-80600

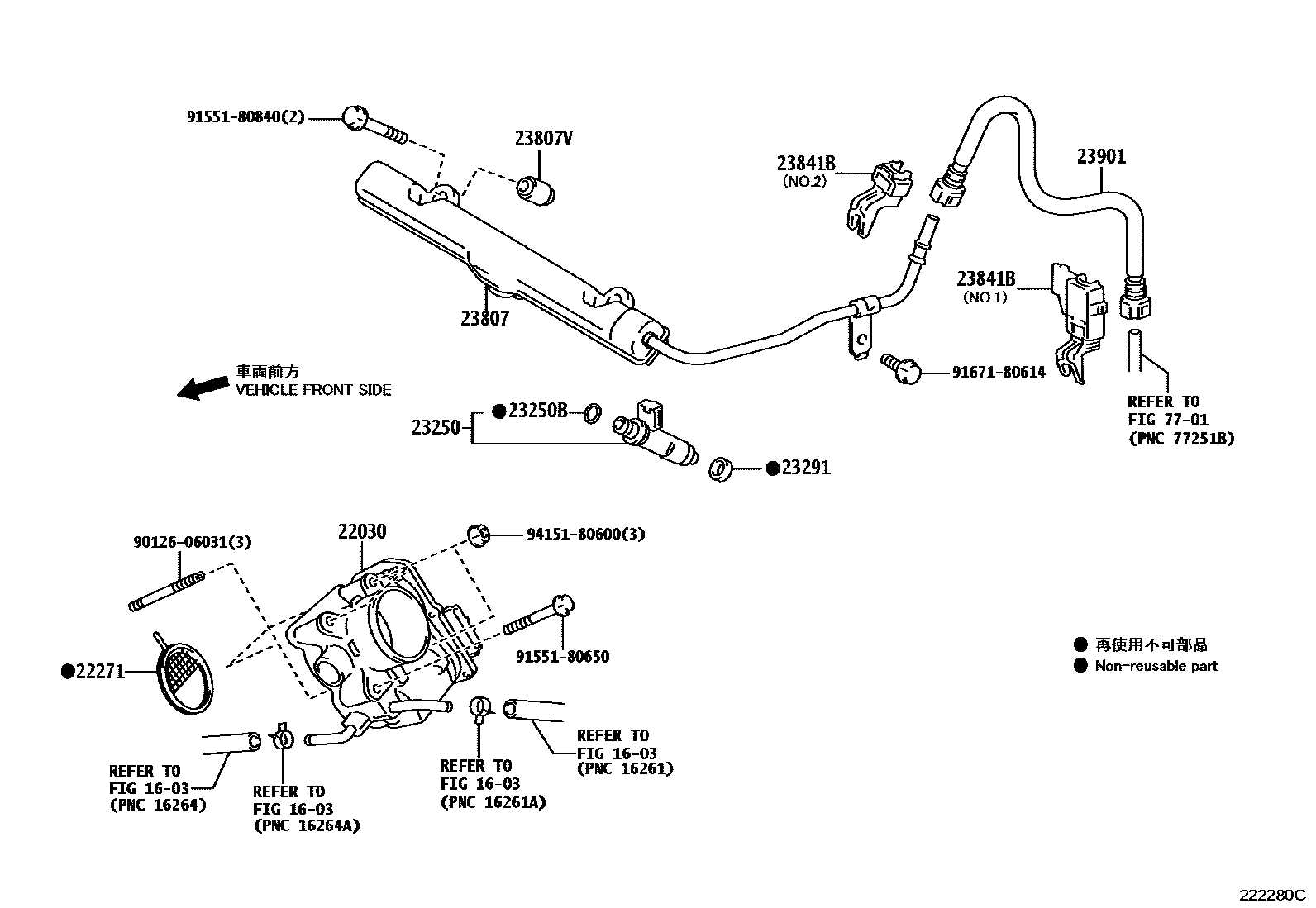

16 parts on this diagram · 3 diagrams in section
FUEL INJECTION SYSTEM for Toyota COROLLA/ALTIS
This section contains 31 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota COROLLA/ALTIS. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY, INJECTOR ASSY, FUEL.
