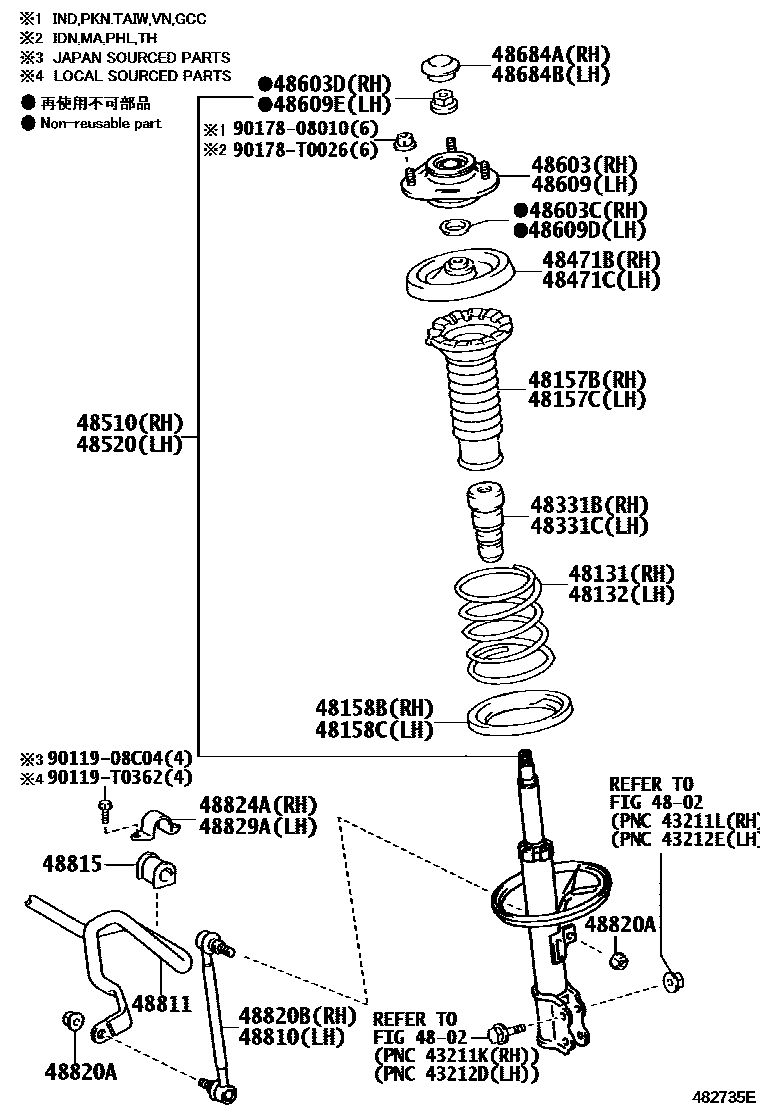

Toyota COROLLA/ALTIS — FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
SINGAPORE SPEC
48132SPRING, FRONT COIL, LH
SINGAPORE SPEC
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-02020iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-02030iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-02030iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-02680
MARK 48510-02660
MARK 48510-02670
MARK 48510-02650
MARK 48510-02640
MARK 48510-02720
MARK 48510-02710
MARK 48510-02730
MARK 48510-02740
MARK 48510-02750
MARK 48510-02830
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-02680
MARK 48520-02660
MARK 48520-02670
MARK 48520-02650
MARK 48520-02640
MARK 48520-02720
MARK 48520-02710
MARK 48520-02730
MARK 48520-02740
MARK 48520-02750
MARK 48520-02830
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
main90303-22002iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90179-14015iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)201007
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-02030iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-02100iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-02070iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-02070iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
9011908C04
main90119-08C04
90119T0362
main90119-T0362
9017808010
main90178-08010
90178T0026
main90178-T0026
32 parts on this diagram · 1 diagram in section
FRONT SPRING & SHOCK ABSORBER for Toyota COROLLA/ALTIS
This section contains 32 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota COROLLA/ALTIS. Key components include: FRONT AXLE ARM & STEERING KNUCKLE, SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH.
