Toyota COROLLA/ALTIS — FRONT FENDER APRON & DASH PANEL

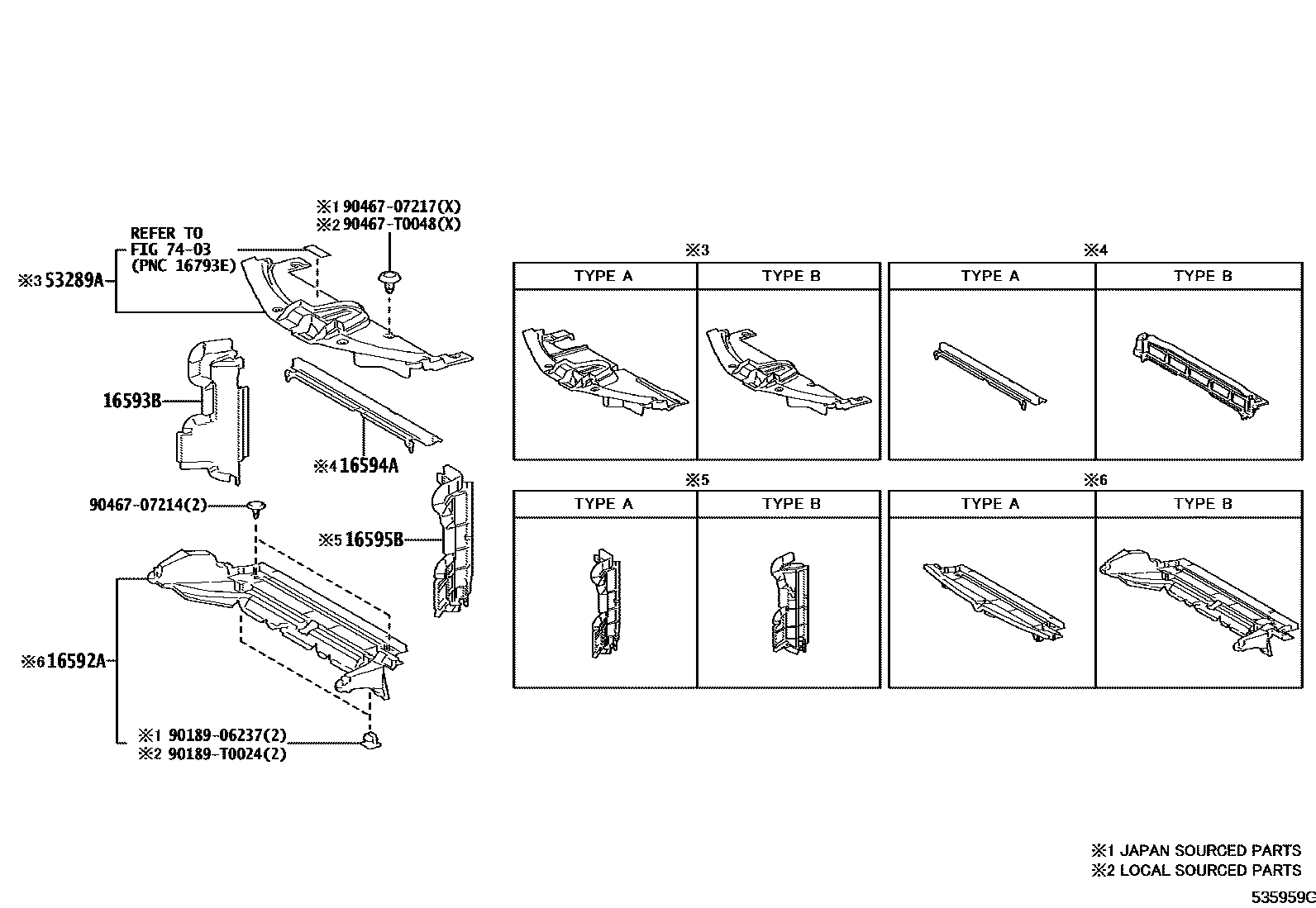

Parts diagram
16592AGUIDE, RADIATOR AIR, NO.3
main16592-0T160i202306
TYPE A:REFER ILLUST.
main16592-0T170i202305
TYPE B:REFER ILLUST.
main16592-0T220i201904-202305
TYPE B:REFER ILLUST.
main16592-0T230i201908-202112
TYPE A:REFER ILLUST.
main16592-0T240i201908-202306
TYPE B:REFER ILLUST.
main16592-0T260i202306
TYPE B:REFER ILLUST.
main16592-0T350i202304
TYPE A:REFER ILLUST.
main16592-0T360i202304
TYPE A:REFER ILLUST.
16593BGUIDE, RADIATOR AIR, NO.1 RH
main16593-0T170i202306
main16593-0T180i201904-202305
main16593-F2080i201904-202305
16594AGUIDE, RADIATOR AIR, NO.2
main16594-0T070i201908-202306
TYPE A:REFER ILLUST.
main16594-0T080i201908-202306
TYPE A:REFER ILLUST.
main16594-0T110i201904-202305
TYPE A:REFER ILLUST.
main16594-0T120i201904-202304
TYPE A:REFER ILLUST.
main16594-F2060i202305
TYPE B:REFER ILLUST.
16595BGUIDE, RADIATOR AIR, NO.1 LH
main16595-0T190i201908-202306
TYPE A:REFER ILLUST.
main16595-0T200i201904-202304
TYPE A:REFER ILLUST.
main16595-0T210i202306-202410
TYPE B:REFER ILLUST.
main16595-0T220i201904-202305
TYPE B:REFER ILLUST.
main16595-F2100i202305
TYPE B:REFER ILLUST.
53289ACOVER, RADIATOR SUPPORT OPENING
main53289-02080i201908-202112
TYPE A:REFER ILLUST.
main53289-02090i201908-202306
TYPE B:REFER ILLUST.
main53289-02100i201904-202304
TYPE A:REFER ILLUST.
main53289-02110i201904-202304
TYPE B:REFER ILLUST.
7403CAUTION PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 74-03
9018906237
main90189-06237
90189T0024
main90189-T0024
9046707214
main90467-07214
9046707217
main90467-07217
90467T0048
main90467-T0048

11 parts on this diagram · 6 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota COROLLA/ALTIS

This section contains 66 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota COROLLA/ALTIS. Key components include: GUIDE, RADIATOR AIR, NO.3, GUIDE, RADIATOR AIR, NO.1 RH, GUIDE, RADIATOR AIR, NO.2, GUIDE, RADIATOR AIR, NO.1 LH, BRACKET, FRONT BUMPER SIDE, RH.
