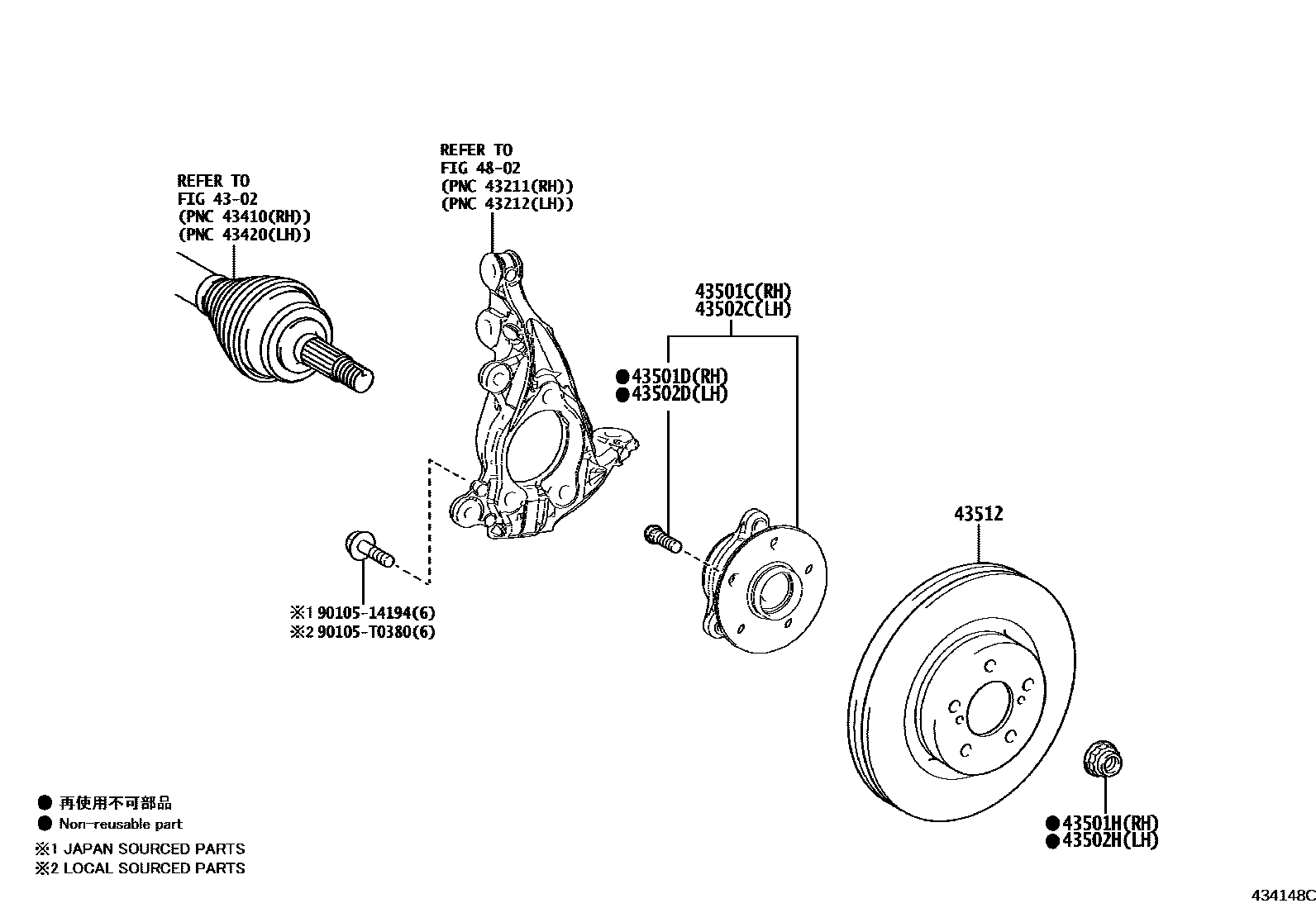

Toyota COROLLA/ALTIS — FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-02120i201908-202112

main43550-02130i202304-202405

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201904-202112

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201908-202112

(J)

main90177-T0017i202306-202410

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-02120i201908-202112

main43550-02130i202304-202405

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201904-202304

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i202304-202405

main90177-T0017i202306-202410

(L)

43512DISC, FRONT

main43512-02400×2i202306-202410

main43512-02410×2i202304-202405

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

90105T0380

main90105-T0380

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA/ALTIS

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA/ALTIS. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
