Toyota COROLLA/ALTIS — FRONT AXLE HUB

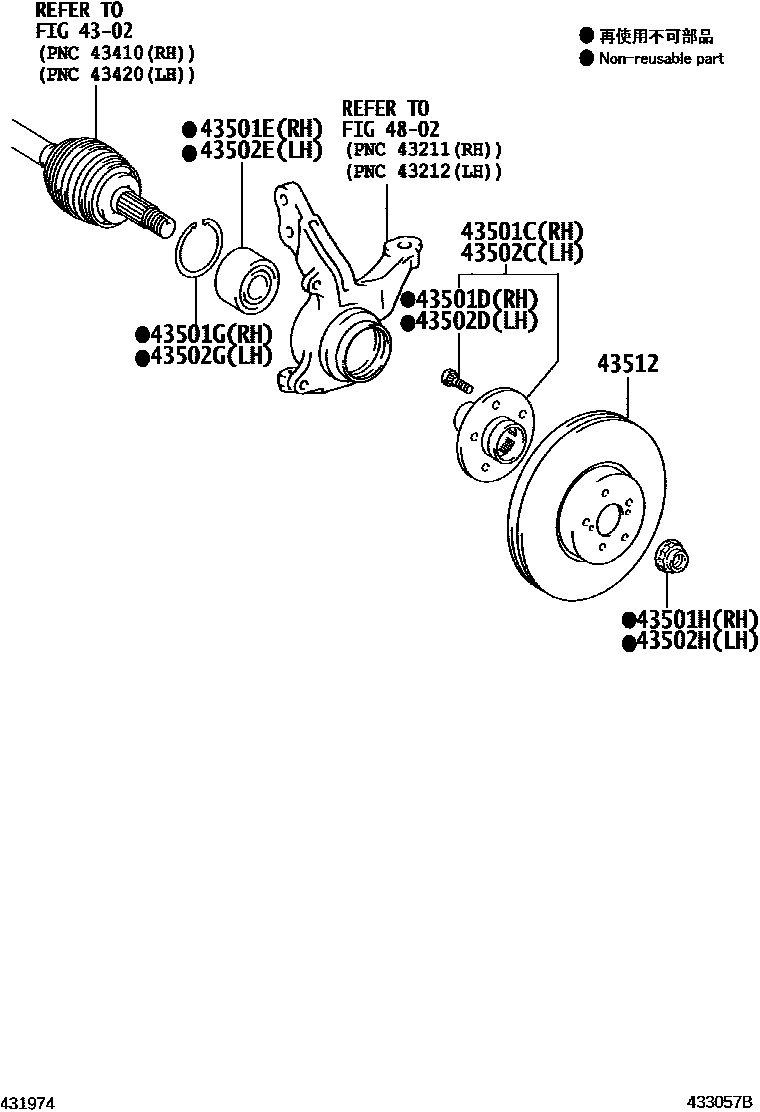

Parts diagram

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-02110i201312-201601

main43502-02120i201610-201903

main43502-02130i201707

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201310-201409

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36137i201312-201707

main90363-T0018i201310-201512

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i201310-201511

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201512-201603

main90177-T0017i201603-201709

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-02110i201312-201709

main43502-02120i201610-201903

main43502-02130i201707-202208

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201310-201709

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36137i201611

main90363-T0018i201310-201511

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i201310-201709

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201512-201603

main90177-T0017i201610-202109

(L)

43512DISC, FRONT

main43512-02270×2i201611-202201

main43512-02280×2i201610-201903

main43512-02300×2i201310-201409

main43512-02310×2i201707-202208

main43512-02320×2i201405-201605

main43512-02321×2i201703-201906
