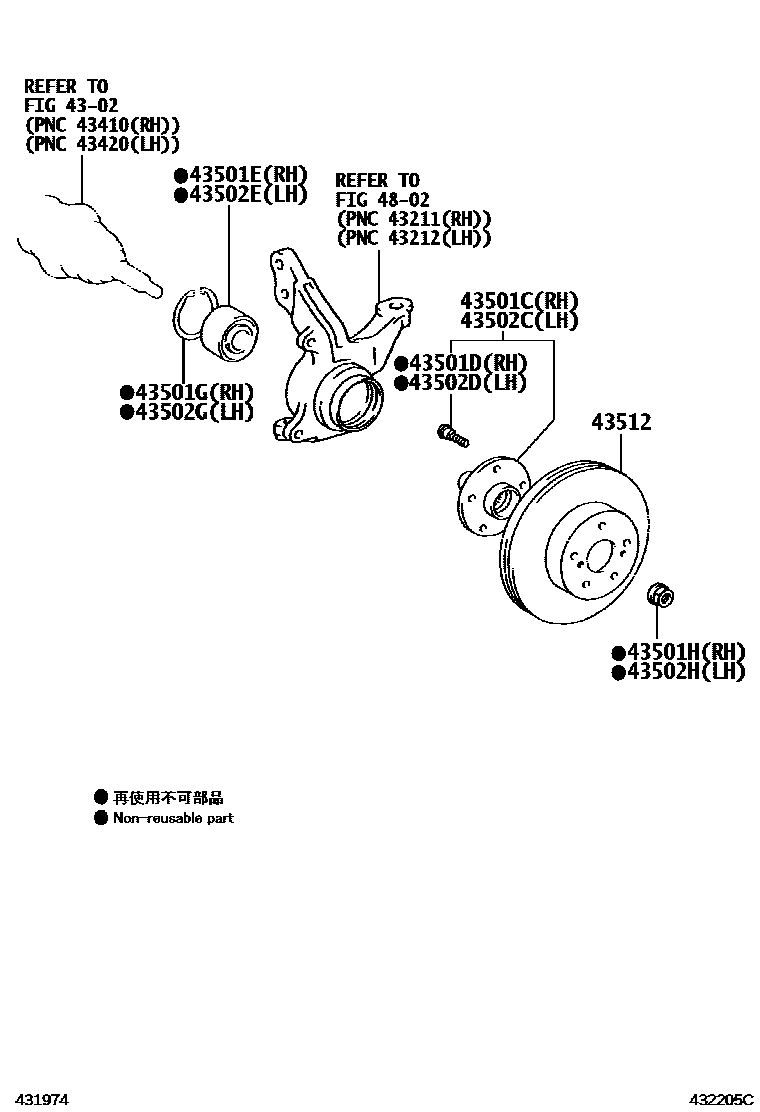

Toyota COROLLA/ALTIS — FRONT AXLE HUB
4302FRONT DRIVE SHAFT
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501EBEARING (FOR FRONT AXLE HUB RH)
43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502CHUB SUB-ASSY, FRONT AXLE, LH
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×5iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)201007
43502EBEARING (FOR FRONT AXLE HUB LH)
main90080-36137iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH)201008
43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43512DISC, FRONT
4802FRONT AXLE ARM & STEERING KNUCKLE
13 parts on this diagram · 1 diagram in section
FRONT AXLE HUB for Toyota COROLLA/ALTIS
This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA/ALTIS. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
