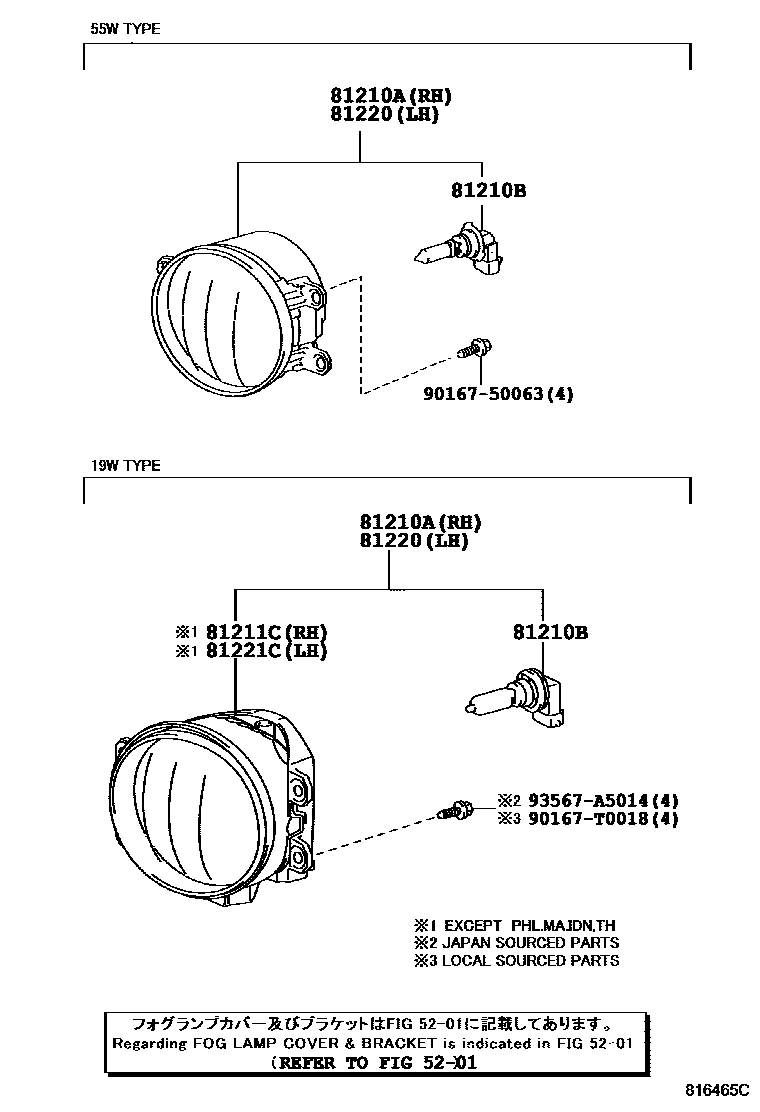

Toyota COROLLA/ALTIS — FOG LAMP
5201FRONT BUMPER & BUMPER STAY
81210ALAMP ASSY, FOG, RH
main81210-02120iZZE141..5F..16G;ZZE142..18V..IND;ZRE143..IDN,PHL,TH,VN;ZZE141..4FC..(MA,PHL);ZZE142..(18G,G)..(IDN,IND,MA,VN)200801-201006
main81210-0D110iZRE141..4FC..(MA,PHL);ZRE14#..(6F,CVFC)..(16G,18G,18J,20G,20V)..(IDN,MA,PHL,TH)..HTWC201306-201311
81210BBULB, FOG LAMP
12V 55W,HALOGEN
12V 55W,HALOGEN,OSRAM
12V 19W
81211CLAMP UNIT, FOG LAMP, RH
81220LAMP ASSY, FOG, LH
main81220-02120iZZE142..18E..TH; ZZE142..18G..TH;ZZE142..(18E,18V)..(IDN,PHL,TH); ZZE142..TH200801-200812
FRONT FOG LAMP-WITHOUT; GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND); SINGAPORE SPEC
GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)
main81220-0D110iZRE141..4FC..(MA,PHL);ZRE14#..(6F,CVFC)..(16G,18G,18J,20G,20V)..(IDN,MA,PHL,TH)..HTWC201306-201311
81221CLAMP UNIT, FOG LAMP, LH
9016750063
main90167-50063
90167T0018
main90167-T0018
93567A5014
main93567-A5014
9 parts on this diagram · 1 diagram in section
