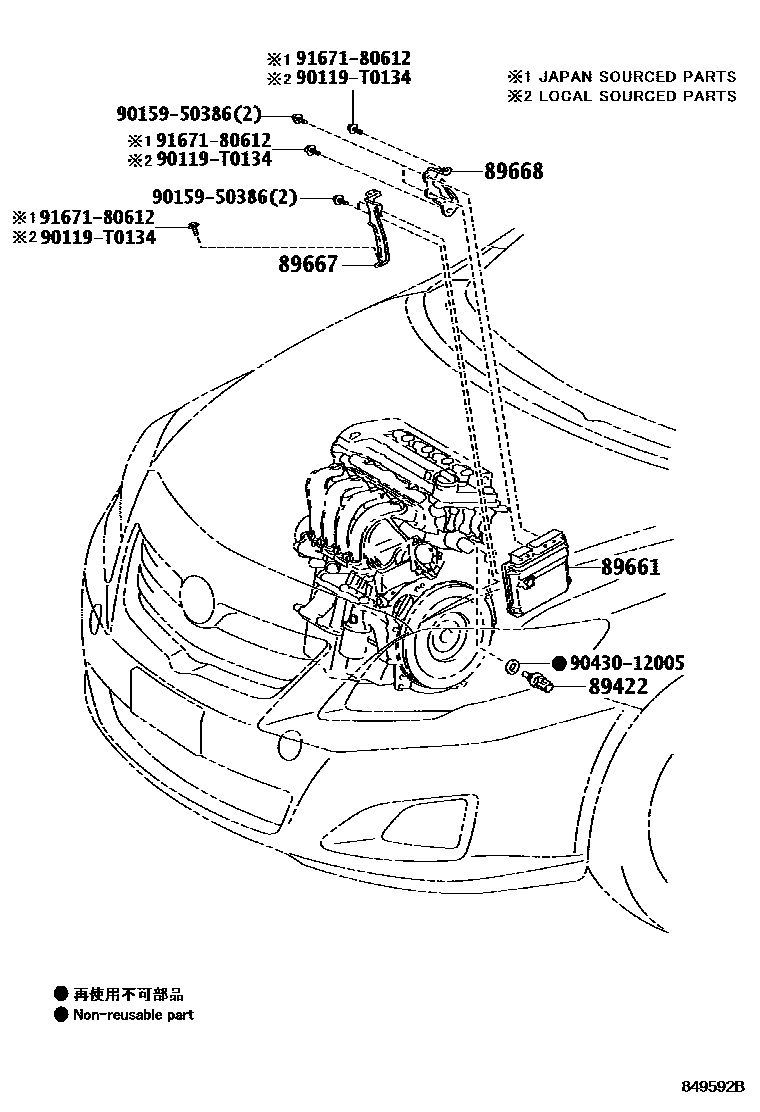

Toyota COROLLA/ALTIS — ELECTRONIC FUEL INJECTION SYSTEM
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
SINGAPORE SPEC
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EUROPE 3 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EUROPE 3 WITH(ON BOARD DIAGNOSIS)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
(J)
90119T0134
main90119-T0134
9015950386
main90159-50386
9043012005
main90430-12005
9167180612
main91671-80612
8 parts on this diagram · 3 diagrams in section
ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA/ALTIS
This section contains 9 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA/ALTIS. Key components include: SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER, BRACKET, ENGINE CONTROL COMPUTER, NO.2.
